Asus PRIME H610M-E D4-CSM DDR4 Intel Motherboard

Asus

7,291 14,999

FOUND THIS PRODUCT AT A LOWER PRICE?
Compare

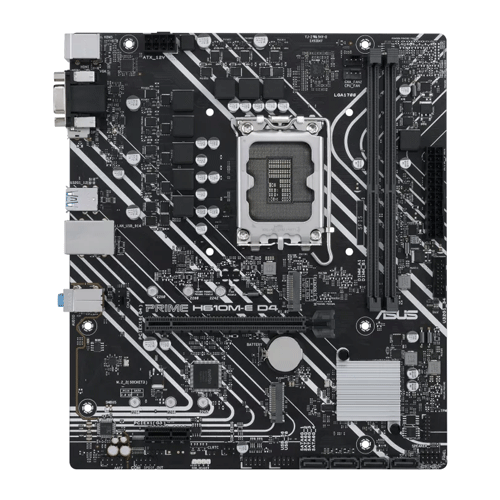

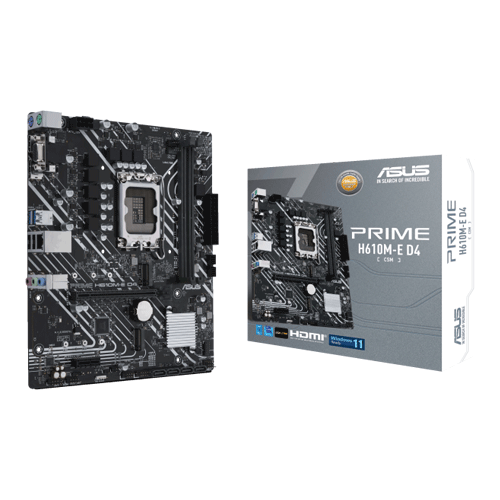

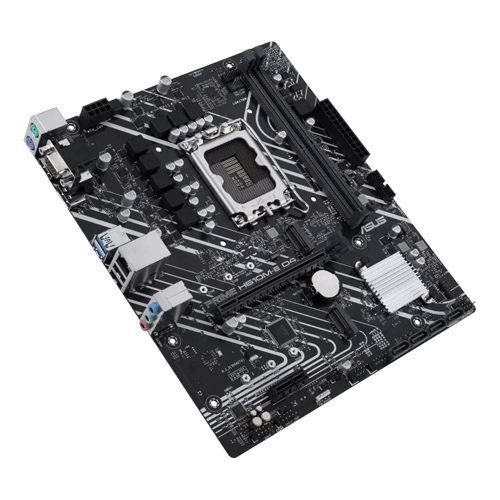

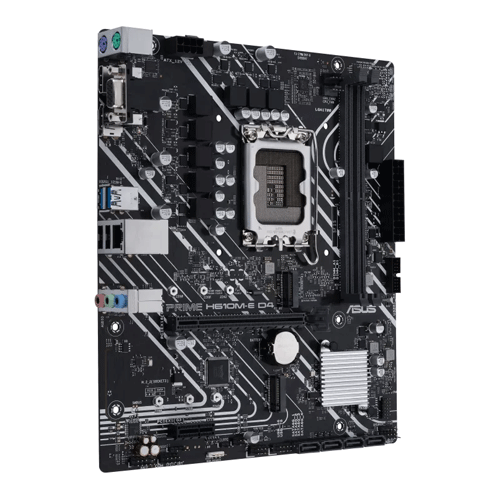

Asus PRIME H610M-E D4-CSM DDR4 Intel Motherboard
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features

PERFORMANCE
Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options

Storage
Dual M.2 slots (up to 32 Gbps)

PRIME H610M-E D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives

Personalization
Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community

Features
Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Realtek 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header
Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel® processors
Comprehensive cooling: PCH heatsink and Fan Xpert 2+
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
5X Protection III: Multiple hardware safeguards for all-round protection
ASUS Control Center Express (ACCE) for easier IT endpoint management

Technical Detail
Brand : Asus
Model : PRIME H610M-E D4-CSM

Technical Spec
CPU

Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

SKU: PRIMEH610ME-D4-CSM Categories: , , Tags: , , ,
Weight 1.5 kg
Brand

Asus

Intel Socket

Warranty

3 Years

Model
Brand ASUS
Model PRIME H610M-E D4-CSM
Supported CPU
CPU Socket Type LGA1700
CPU Type 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supported CPU Technologies Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipsets
Chipset Intel H610
Memory
Number of Memory Slots 2 x DIMM,
Memory Standard DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Maximum Memory Supported Max. 64GB
Channel Supported Dual channel memory architecture
Expansion Slots
PCI Slots Intel 13th & 12th Gen Processors : 1 x PCIe 4.0 x16 slot Intel H610 Chipset : 1 x PCIe 3.0 x1 slot
Storage Devices
SATA 3Gb/s 4 x SATA 6Gb/s port(s)
Onboard Video
Onboard Audio
Audio Chipset Realtek 7.1 Surround Sound High Definition Audio CODEC
Onboard LAN

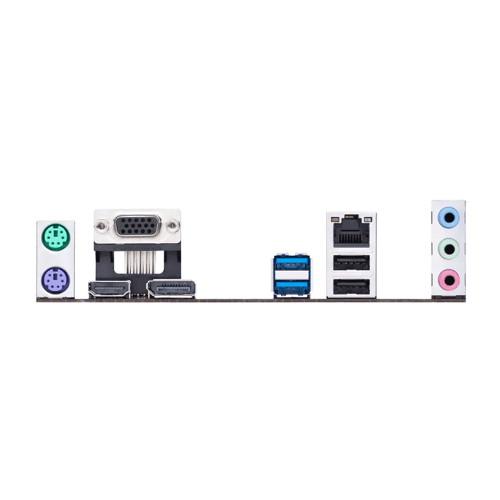

Rear Panel Ports
USB 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A)
IEEE 1394 N/A
S/PDIF Out 1
Audio Ports 3 x audio jacks
PS/2 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port
Video Ports 1 x D-Sub port 1 x HDMI port 1 x DisplayPort
HDMI 1 x HDMI
Onboard USB
Onboard 1394
Physical Spec
Form Factor mATX
Power Pin 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Dimensions 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
