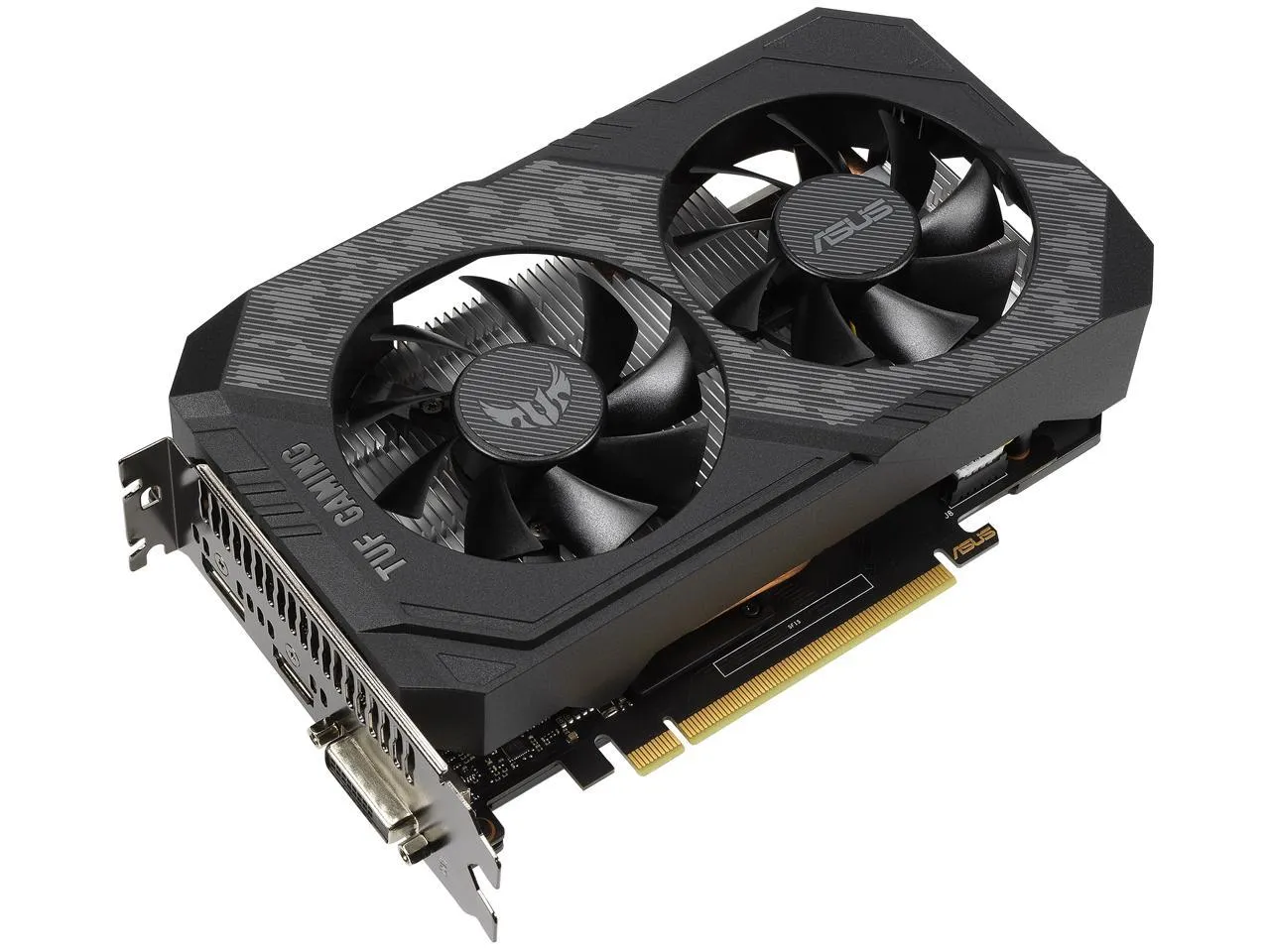

ASUS TUF Gaming GeForce GTX 1630 4GB GRAPHICS CARD

Asus

14,820 17,000

FOUND THIS PRODUCT AT A LOWER PRICE?
Compare
The ASUS TUF Gaming GeForce® GTX 1630 4GB GDDR6 is your ticket into PC gaming.
  • The ASUS TUF Gaming GeForce® GTX 1630 is built with the powerful graphics performance of the award-winning NVIDIA Turing™ architecture. Step up to better gaming with GeForce GTX.
  • Ultra-fast GDDR6 with over 50% more memory bandwidth for high-speed gaming.
  • GeForce Experience lets you capture and share videos, screenshots, and livestreams with friends, keep GeForce drivers up to date, and easily optimize your in-game settings.
  • Space-grade lubricant brings the durability of dual ball bearings to quieter sleeve bearing designs.
  • IP5X dust resistance offers protection from particle ingress for better durability.
  • Auto-Extreme Technology uses automation to enhance reliability.

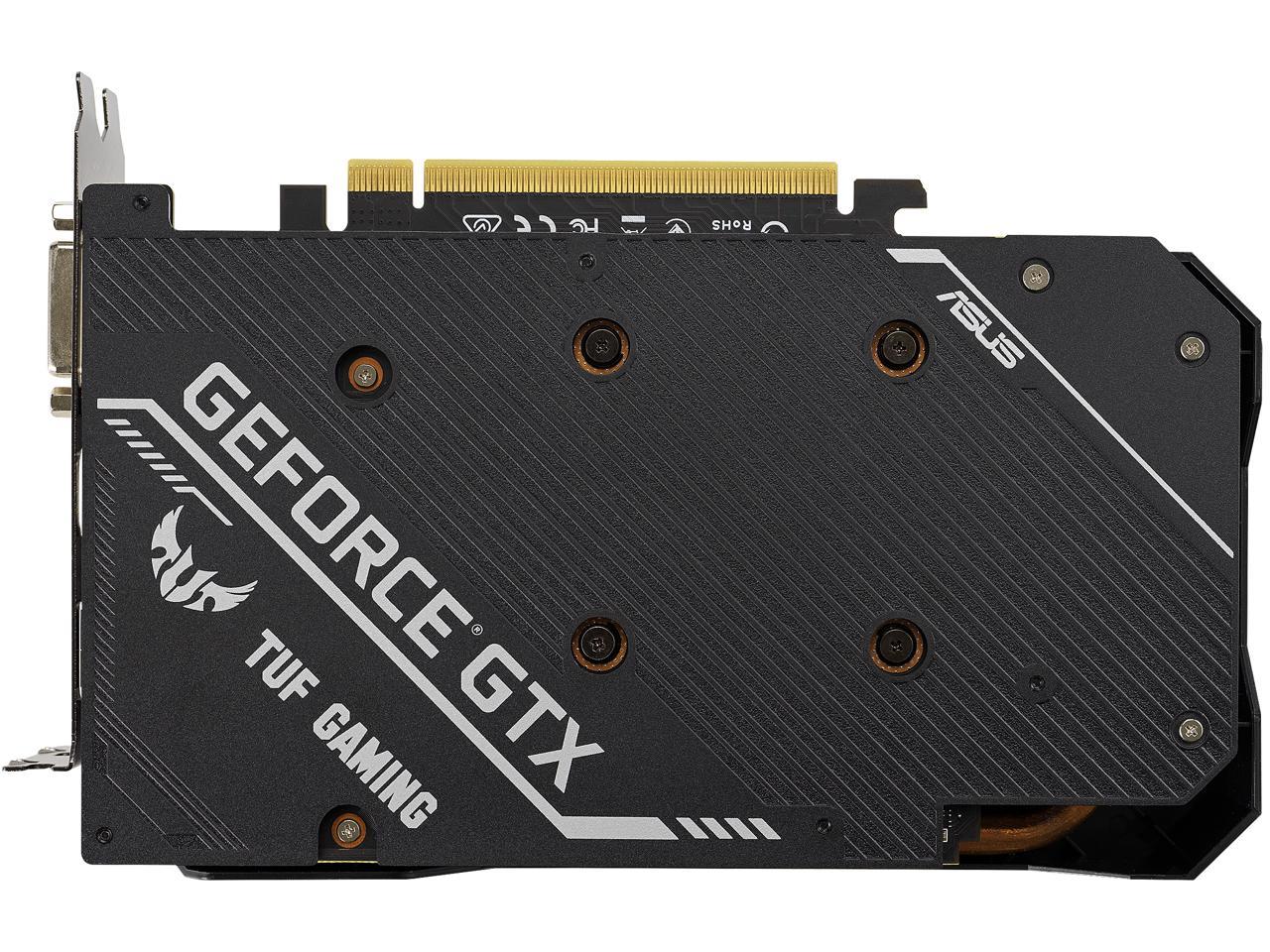

  • protective backplate secures components during transportation and installation.
  • GPU Tweak III provides intuitive performance tweaking, thermal controls, and system monitoring.
  • TUF compatibility testing ensures TUF Gaming and TUF Alliance products work together flawlessly.
ASUS TUF Gaming GeForce GTX 1630 4GB

Built TUF

The TUF Gaming GeForce® GTX 1630 stacks an arsenal of weapons that bring reliable 3D horsepower to the TUF Gaming ecosystem. Each card is built using Auto-Extreme manufacturing, protected by a rigid backplate that prevents PCB flex, and features fans with space-grade lubricant that are sealed to IP5X standards. And it’s all backed by a rigorous battery of validation tests to ensure compatibility with the latest TUF components. If you’re looking for the tank of graphics cards, lock and load your rig with the TUF.

COOLING

Dust-resistant fan design

IP5X Dust Resistance

Keep it clean

Dust is enemy number one for fans. It’s easy to clean the blades, but taking the fan apart to remove dust that has made its way inside is not a simple task. Passing the IP5X certification means the housing is safe from nasty particulates, so you’ll never need that deep clean.

ENGINEERING

Video explaining Auto-Extreme technology.

play

Auto-Extreme Technology

Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

SOFTWARE

GPU Tweak III interface.

GPU TWEAK III

Monitor, tweak, and tune

ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.

Learn more about GPU Tweak III   >

EXPERIENCE

TUF Compatibility Testing

* For reference only
Brand

Asus

Graphics Card

Warranty

3 Years

Graphic Engine

NVIDIA® GeForce GTX 1630

Bus Standard

PCI Express 3.0

OpenGL

OpenGL®4.6

Video Memory

4GB GDDR6

Engine Clock

OC mode: 1815MHz (Boost Clock)
Gaming mode: 1785MHz(Boost Clock)/ 1740MHz(Base Clock)

CUDA Core

512

Memory Speed

12 Gbps

Memory Interface

64-bit

Resolution

Digital Max Resolution 7680 x 4320

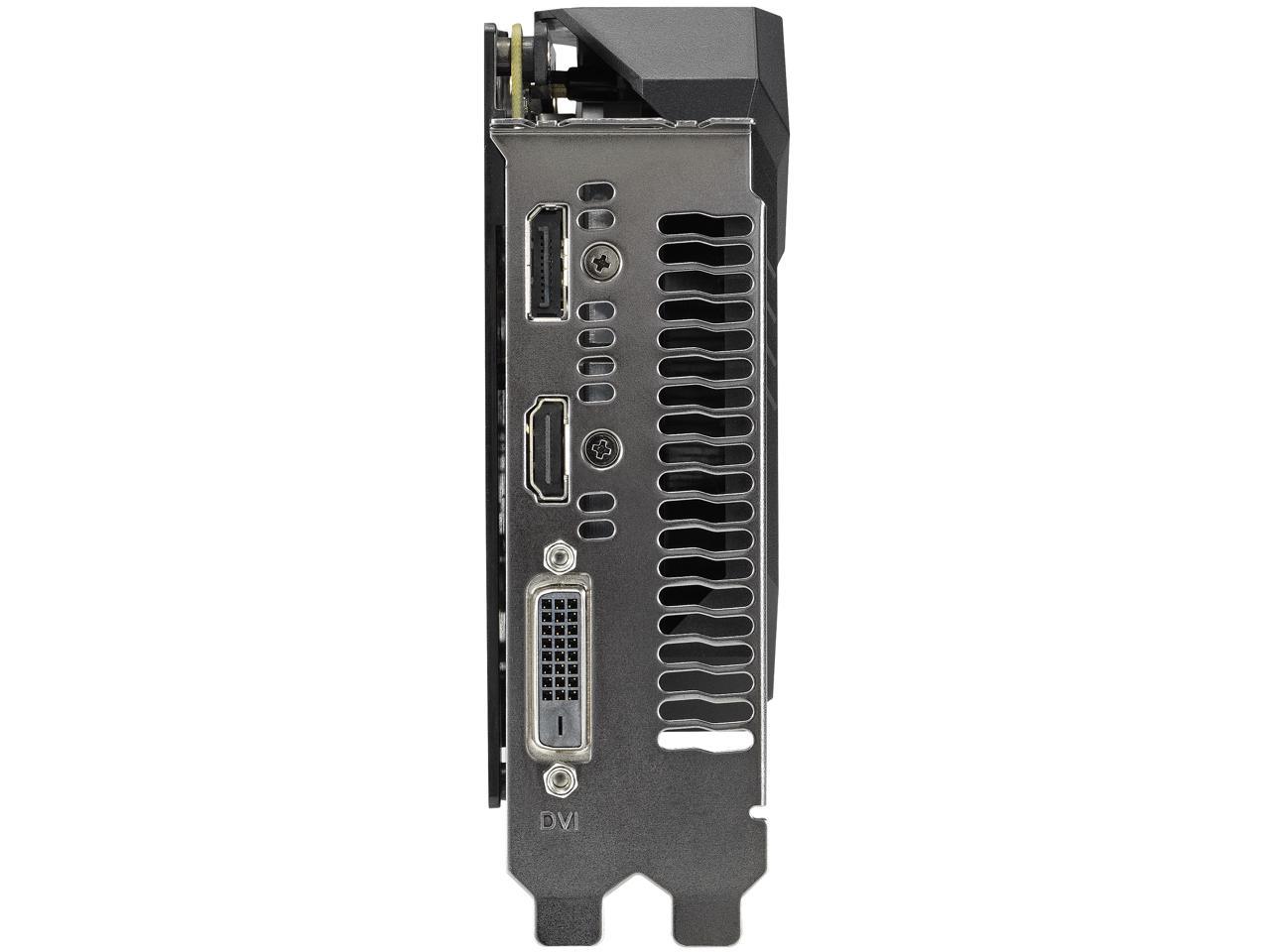

Interface

Yes x 1 (Native DVI-D)
Yes x 1 (Native HDMI 2.0b)
Yes x 1 (Native DisplayPort 1.4a)
HDCP Support Yes (2.2)

Maximum Display Support

3

NVlink/ Crossfire Support

No

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

20.45 x 12.49 x 4.56 cm
8.05 x 4.91 x 1.79 inches

Recommended PSU

300W

Slot

2.3 Slot

Note

*Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
