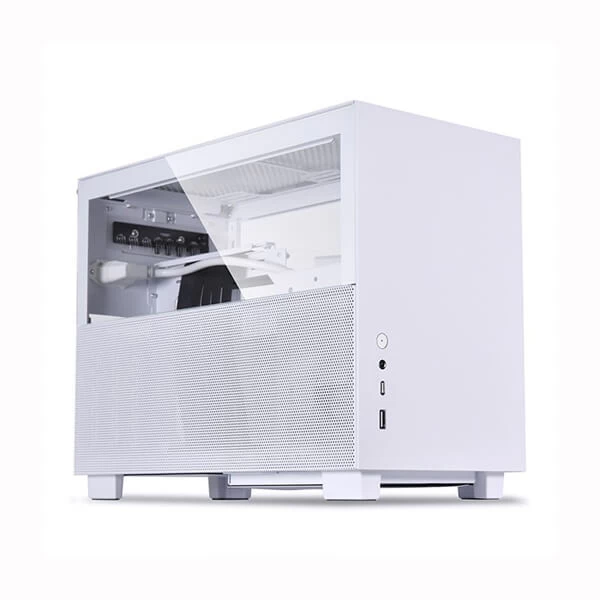

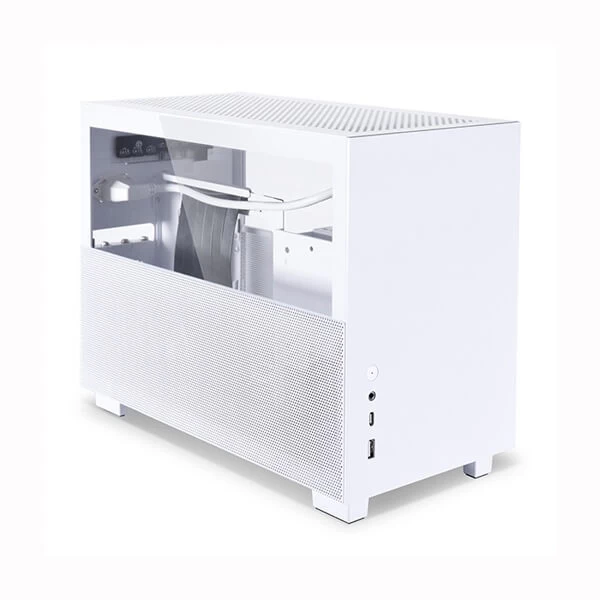

Lian Li Q58W3 Cabinet With PCIe 3.0 Riser Cable (White)

Lian Li
Availability:

Out of stock


10,985 15,599

Out of stock

Compare

Lian Li Q58W3 Cabinet With PCIe 3.0 Riser Cable (White)

Features:

  • Mini-ITX Aluminum Chassis
  • Features swappable hinged glass and mesh panels
  • Included PCIe 3.0 riser cable for vertically mounted GPU
  • Supports SFX PSU and up to 160mm long ATX PSU
  • Supports up to 325mm long radiator in certain circumstances
  • Supports 4 storage drive mounting locations
  • Cable management friendly with tie points and included LED/ fan hub

CRAFTMANSHIP IN WHITE

The mini-ITX chassis exquisite aluminum craftsmanship guarantees airflow while displaying the components.

SWAPPABLE HINGE PANELS

The dual side split hinged panels feature two 3.0mm thick tempered glass panels and two 1.0mm fine mesh panels that are swappable.

The Q58 can accommodate both the airflow and the look of your choice.

MODULAR DESIGN FOR SFX/ATX POWER SUPPLY

Compatible for both SFX and ATX PSU, the Q58 comes with an additional bracket to transform from SFX PSU mode to ATX PSU mode.

DETAILS MAKE PERFECTION

BUILD LIKE A PRO – AVOID GLASS DAMAGES The hinged glass panel features a curve hole at the rear, which allows opening of the panel without removing the thumbscrew, and helps avoid any possible damage caused to the glass by preventing it from leaning on the table.

EFFORTLESS CONNECTION – INCLUDED LED/ FAN HUB

Flip the LIAN LI logo plate at the rear to access the LED/fan hub that supports 3 PWM fan headers and 3 LED headers ( 5V 3 Pin ARGB) without dealing with cable clutter.

ADVANCE KIT – TOOLLESS HOT SWAP SSD TRAY

Exclusively design for the Q58, a toolless hot swap SSD tray is located at the front top of the case. Simply open the top and front panel to quickly remove or replace the SSD without unplugging any cables.

FLEXIBLE COOLING SUPPORT

In SFX PSU mode, the Q58 has room for a 280mm AIO. Depending on the mounting configuration employed, the actual supported length of the AIO varies.

UNCOMPROMISED STORAGE SPACE

The ingenious use of the room in the Q58 allows for 4 storage drive mounting locations. Drives support includes 4×2.5” SSDs, or 3×2.5” SSDs and 1×3.5” HDD.

COMPACT YET SPACIOUS GPU SUPPORT WITH RISER CABLE

The Q58 implements a PCIe 3.0 riser cable to vertically mount a GPU up to 3 slots thick and 320mm long.

USB 3.1 TYPE C PORT

The Q58 I/O ports are located at the front panel and feature a Type C port with efficient transmission speeds.

COMPREHENSIVE CABLE MANAGEMENT

Several Velcro straps and multiple cable tie-down points are provided to tidy up the cables and the bottom fan bracket helps to snuggle the cables into the

Q58. STOP THE DUST

Two magnetic dust filters are attached at the bottom of the chassis and the mesh panel to prevents dust from entering the case.

  • SERIESQ58
  • TYPEMINI TOWER
  • 3.5″ BAYS3
  • 2.5″ BAYS1
  • EXPANSION SLOTS3
  • MAX RADIATOR SUPPORT280
  • MAX FAN SUPPORT3
  • COLORWHITE
  • SIDE PANELTEMPERED GLASS
  • WARRANTY1 Years
SKU: G99.Q58W3.IN Categories: ,
Weight 13 kg
Brand

Lian Li

Cabinet

color

Specifications:

PRODUCT NAME LIAN LI Q58
MODEL Q58W3
COLOR White
RISER CABLE GENERATION PCIe3.0
DIMENSIONS (D) 342mm x (W) 170mm x (H) 250mm
MATERIALS Aluminum Exterior

SPCC Steel Interior

3.0mm tinted tempered glass side panels

MOTHERBOARD SUPPORT Mini-ITX
FAN SUPPORT SFX PSU Mode:

Top:2x 120mm or 2x 140mm

Bottom:1x 120mm

ATX PSU Mode:

Top:1x 120mm or 1x 140mm

Bottom:1x 120mm

RADIATOR SUPPORT SFX PSU Mode:

Top:1x 240mm or 280mm

(Max length 315mm, or max 325mm if remove front SSD tray)

Bottom:1x 120mm

ATX PSU Mode:

Top:1x 120mm

Bottom:1x 120mm

PSU SUPPORT SFX/SFX-L/ATX (max length 160mm)
GPU LENGTH CLEARANCE Max 320mm
CPU COOLER CLEARANCE Max 67mm
DRIVE SUPPORT SFX PSU Mode:

4x 2.5” SSD or 3x 2.5” SSD + 1x 3.5” HDD

ATX PSU Mode:

2x 2.5” SSD

EXPANSION SLOT 3
I/O PORTS 1x USB 3.0, 1x USB 3.1 TYPE-C, 1x HD AUDIO
DUST FILTER 2 x bottom magnetic
Warranty 1 Year
