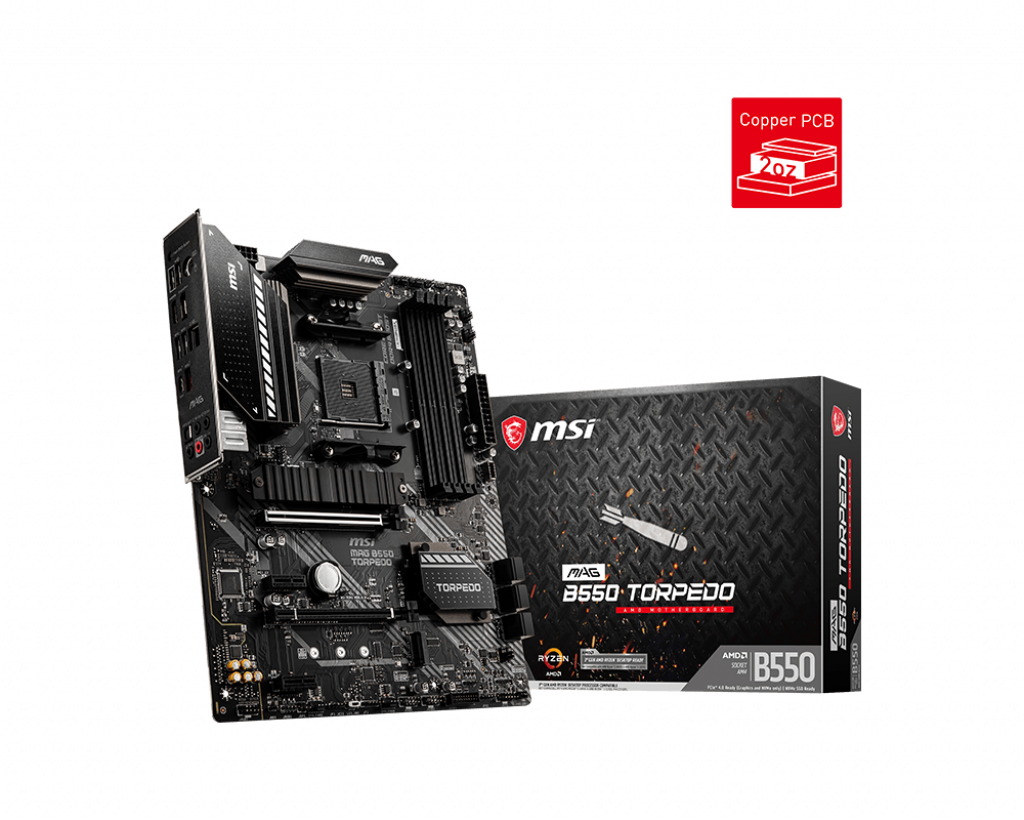

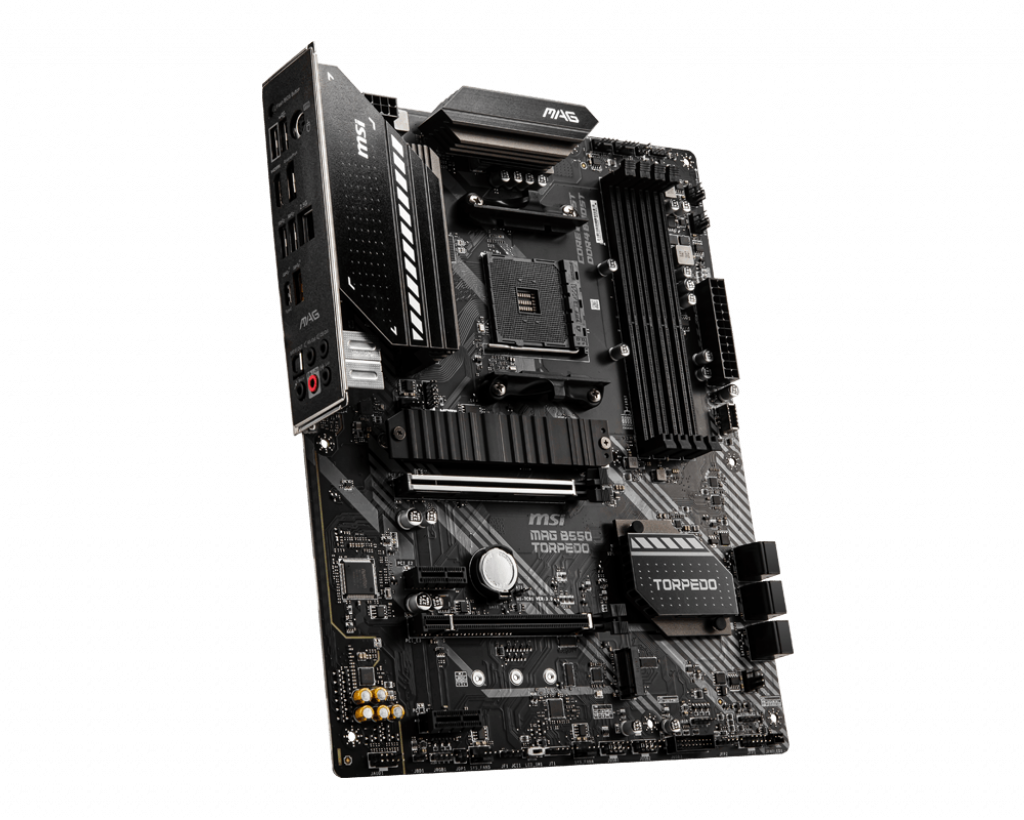

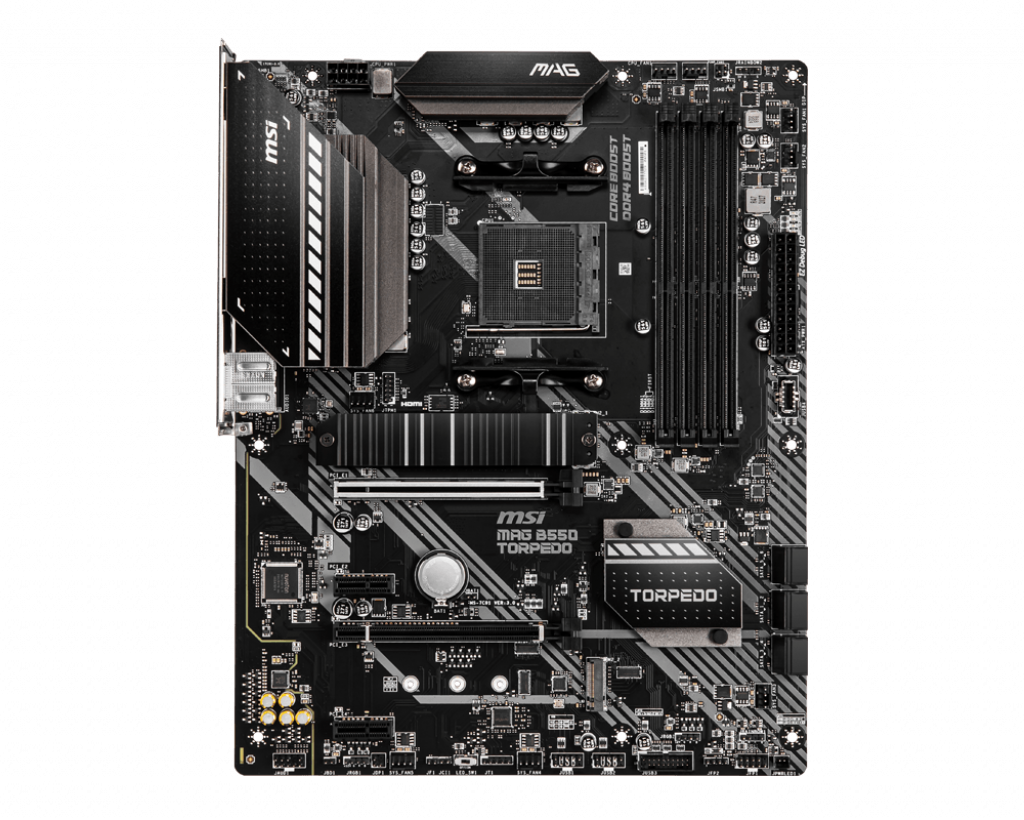

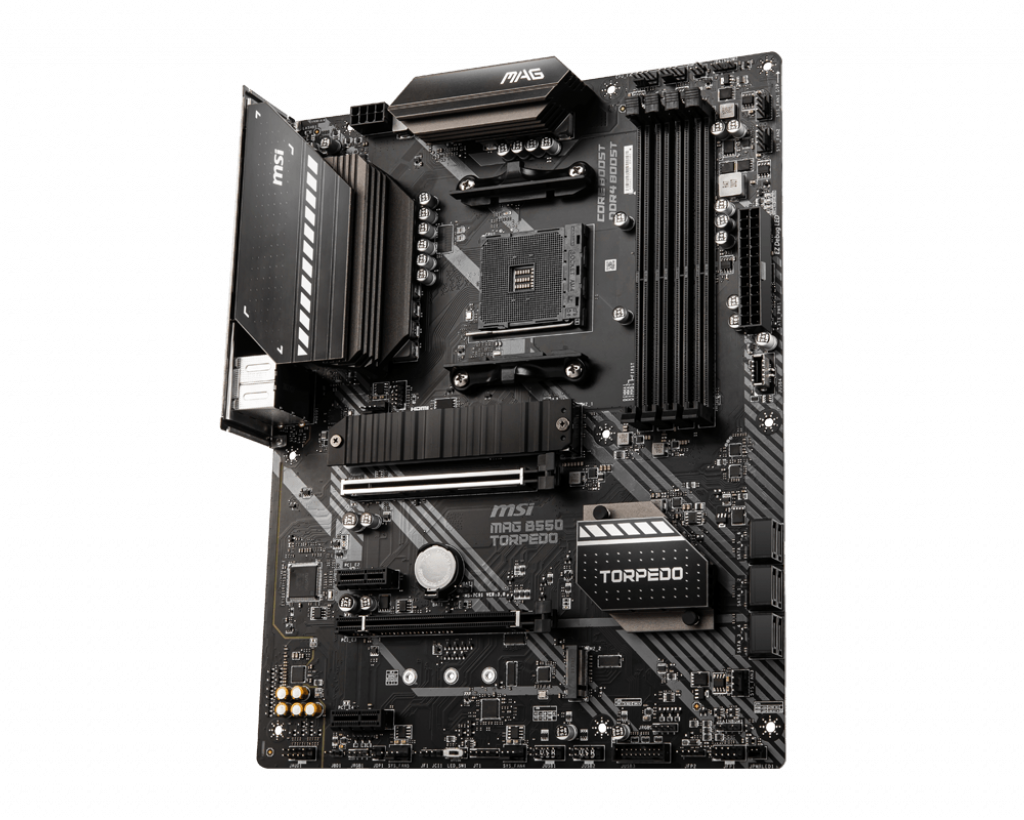

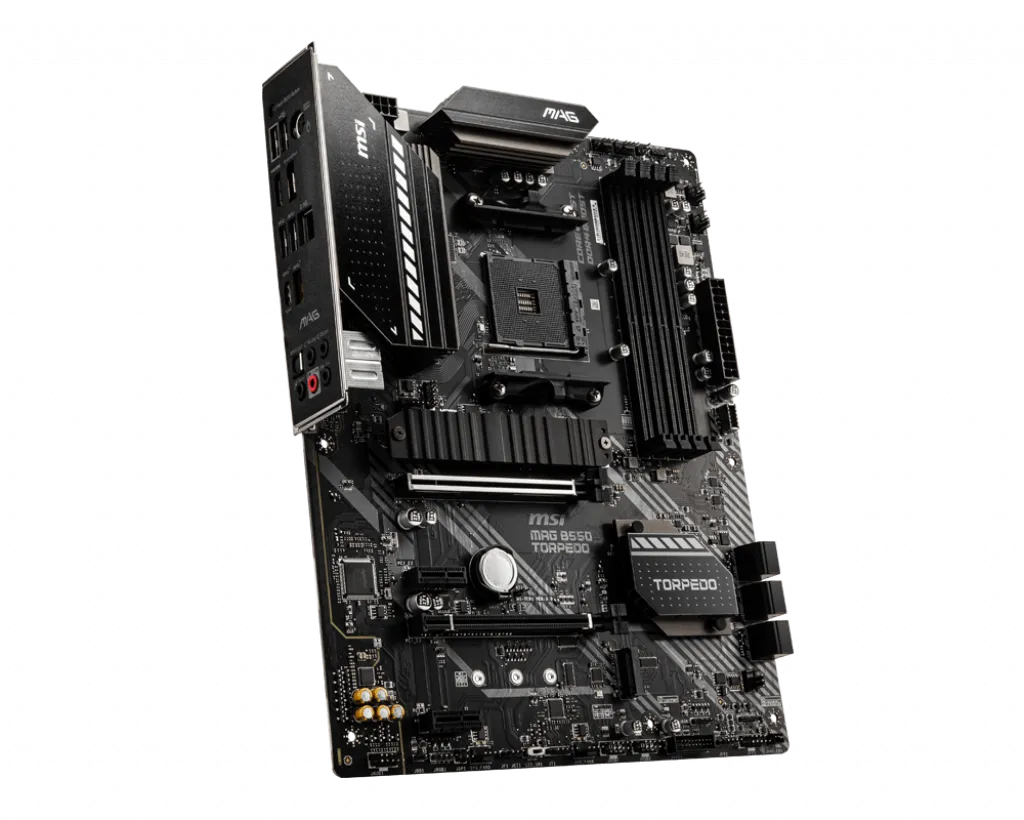

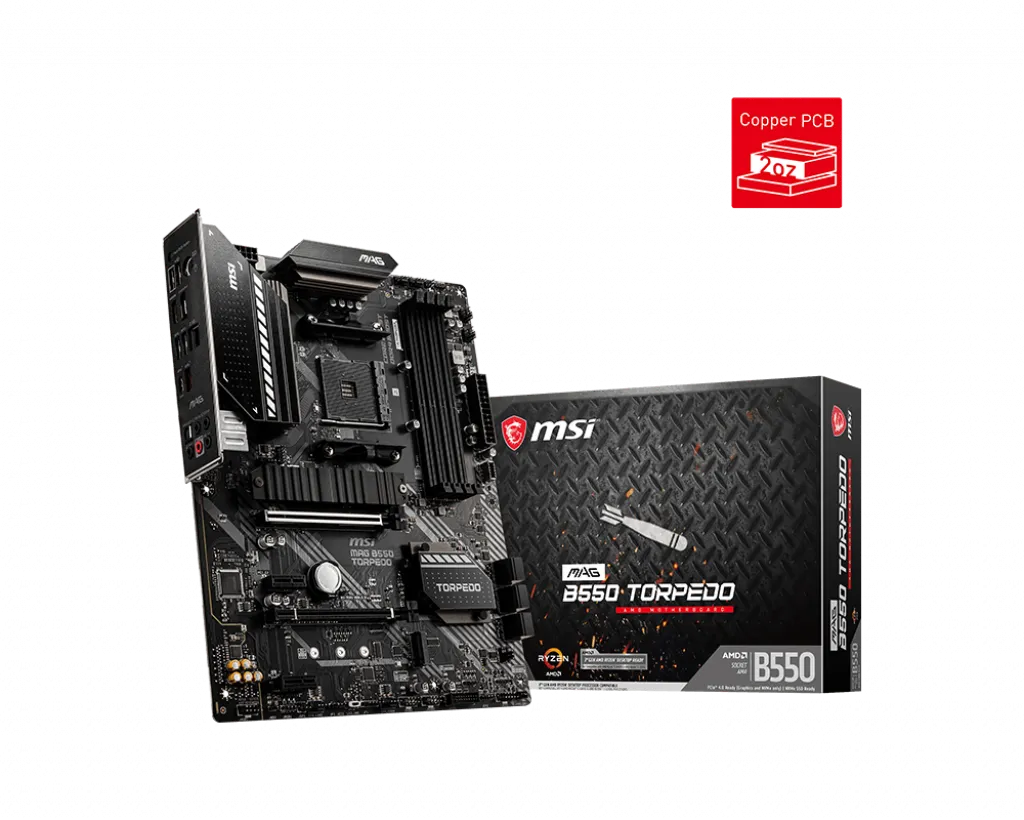

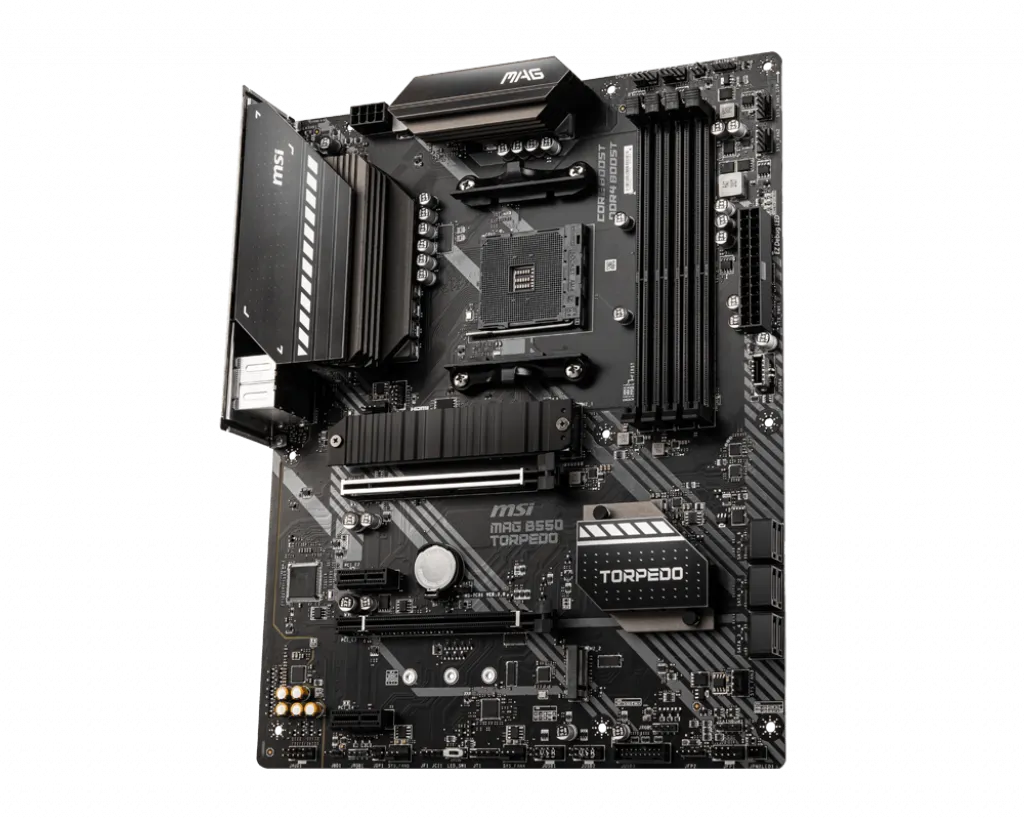

MSI-MAG B550 TORPEDO ,AMD SOCKET MOTHERBOARD (4000G SERIES)

MSI
Availability:

Out of stock


15,985 22,200

Out of stock

Compare

MSI Logo

MAG B550 TORPEDO

MAG B550 TORPEDO

MAG B550 TORPEDO

  • and AMD Ryzen™ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 5100+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • Latest Network Solution: Onboard 2.5G LAN with LAN Manager deliver the best online experience without lag.
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™
Weight 3 kg
Brand

MSI

Amd Socket

PROCESSOR

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

See supported processors

CHIPSET

AMD B550 Chipset

MEMORY

  • 4x DDR4 memory slots, support up to 128GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733/ 4800/ 4866+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4866 MHZ
      • 1DPC 2R max speed 3866 MHZ
      • 2DPC 1R max speed 4000 MHZ
      • 2DPC 2R max speed 3600 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
  • 2x PCIe 3.0 x1 slots
  1. PCIe specifications may vary depending on the CPU installed.
  2. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2. Please refer to page 29 for details.

MULTI-GPU

  • Supports 2-Way AMD CrossFire™ Technology

ONBOARD GRAPHICS

  • 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1 2
    Support HDCP 1.4 & 2.3
  • 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz 1
  • Maximum shared memory of 16GB
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

STORAGE

AMD B550 Chipset

  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0×4
      • Supports 2242/ 2260/ 2280 storage devices
  1. PCIe specifications may vary depending on the CPU installed.

RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Realtek® RTL8125B 2.5Gbps LAN controller

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper

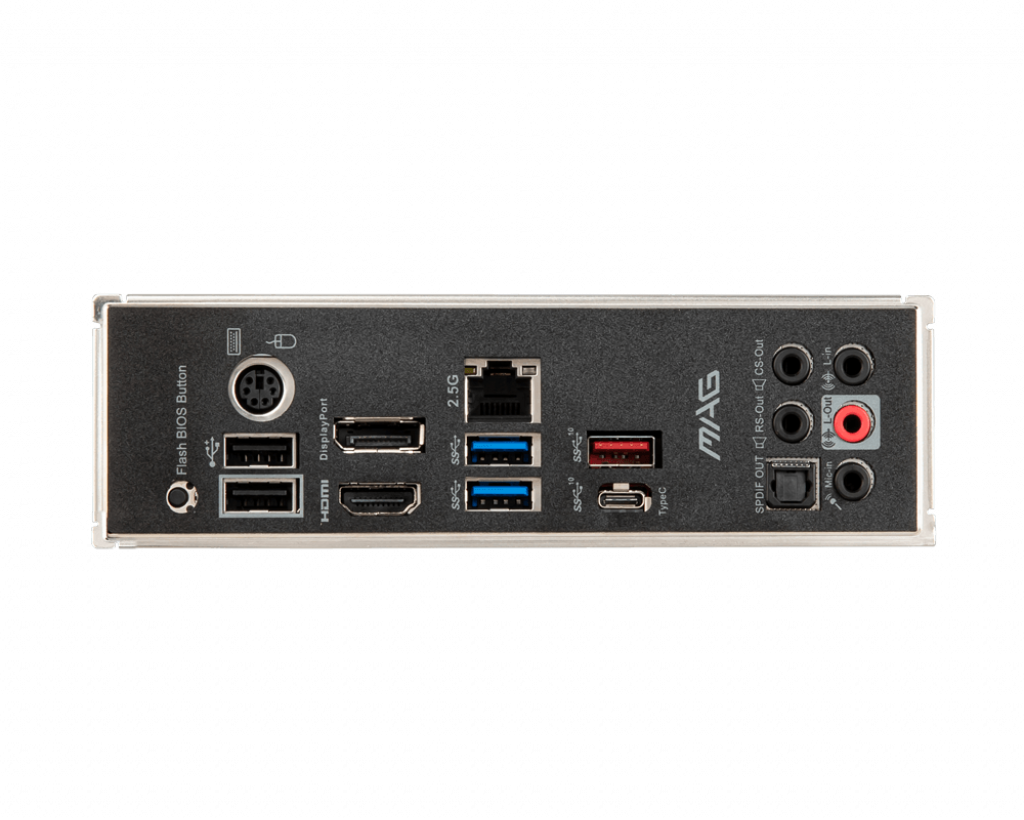

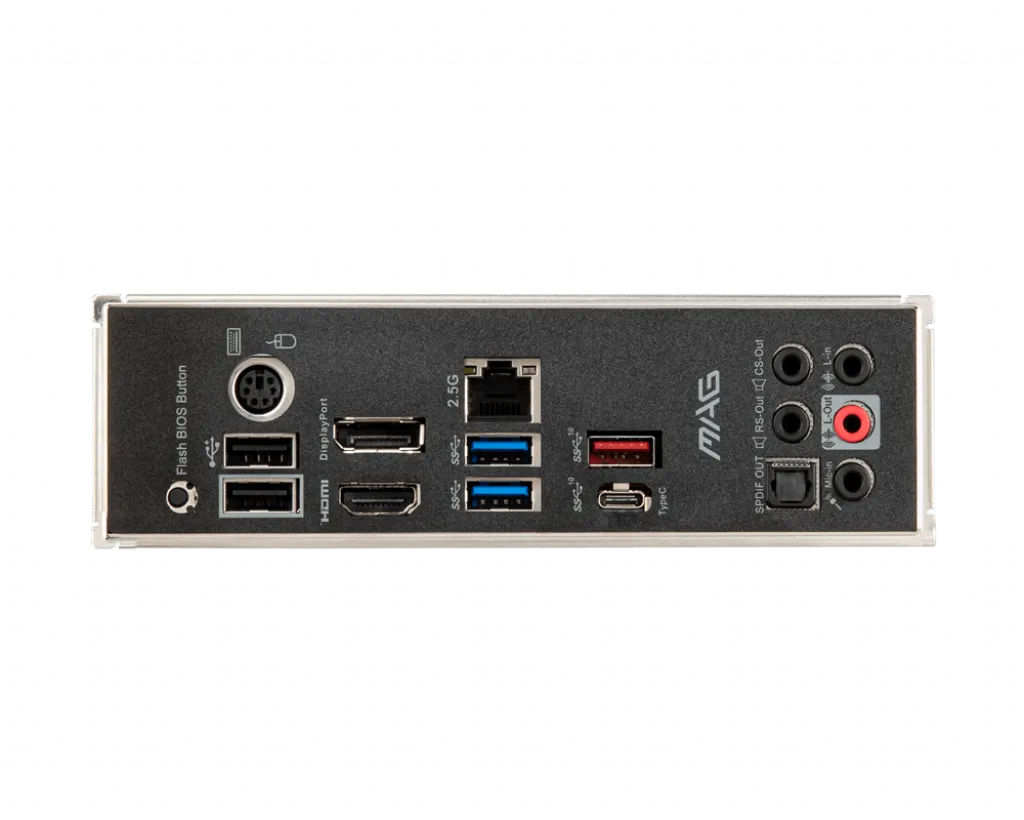

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. DisplayPort
  3. 2.5G LAN Port
  4. USB 3.2 Gen 2 10Gbps (Type-A)
  5. HD Audio Connectors
  6. Flash BIOS Button
  7. USB 2.0 Port
  8. HDMI Port
  9. USB 3.2 Gen 1 5Gbps (Type-A)
  10. USB 3.2 Gen 2 10Gbps (Type-C)
  11. Optical S/PDIF OUT
MAG B550 TOMAHAWK back panel ports

DIMENSIONS

  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit
