| Model |

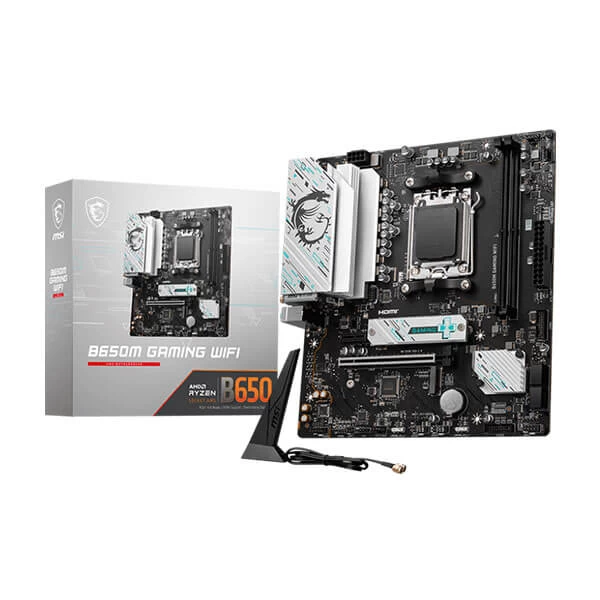

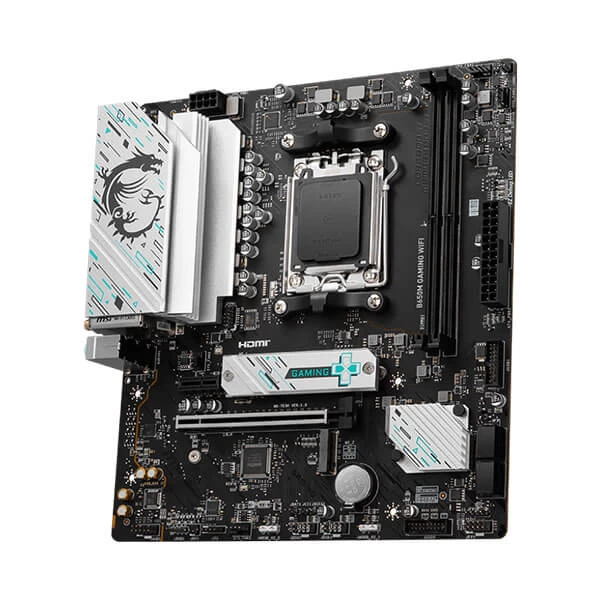

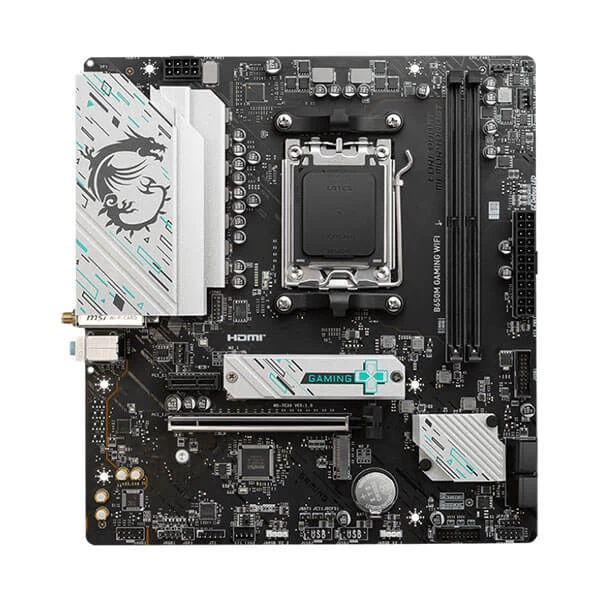

B650M GAMING WIFI |
| Chipset |
AMD B650 |
| CPU |
Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5 |
| Memory |
2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™ |
| Onboard Graphics |
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
1x PCI-E x16 slot
Supports x16/x1
• Supports x16 (For Ryzen™ 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Storage |
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed |
| RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| USB |
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 3.2 Gen1 Type A (Rear)
1x USB 3.2 Gen1 Type C (Rear)
4x USB 3.2 Gen1 Type A (Front) |
| LAN |
Realtek® RTL8125BG 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH |
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio |
| Internal IO |
- 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)
- 1x Front Type-C Quick Charge Connector(PD_PWR1)
- 1x CPU Fan
- 3x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 4x USB 3.2 Gen1 Type A ports
|
| LED FEATURE |
4x EZ Debug LED |
| BACK PANEL PORTS |
- DisplayPort
- HDMI™
- USB 3.2 Gen 1 5Gbps (Type-A)
- 2.5G LAN
- Wi-Fi / Bluetooth
- Audio connectors
- Flash BIOS Button
- USB 3.2 Gen 1 5Gbps (Type-C)
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 2.0
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info |
mATX
226mmx243.84mm |
