| Chipset |
AMD B650 |
| CPU SUPPORT |
Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5 |
| Memory |
4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6600+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz
• 2DPC 1R Max. speed up to 6400+ MHz
• 2DPC 2R Max. speed up to 4000+ MHz
Support Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™ |
| Onboard Graphics |
1x HDMI™
1x DisplayPort
Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz
Support DP 1.4 HBR3, maximum resolution of 8K 60Hz |
| EXPANSION SLOT |
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) |
| Storage |
3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port |
| RAID |
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN |
Realtek® RTL8125BG 2.5Gbps LAN |
| WIRELESS / BLUETOOTH |
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2 |
| Audio |
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C |
| LED FEATURE |
4x EZ Debug LED
1x EZ LED Control switch |

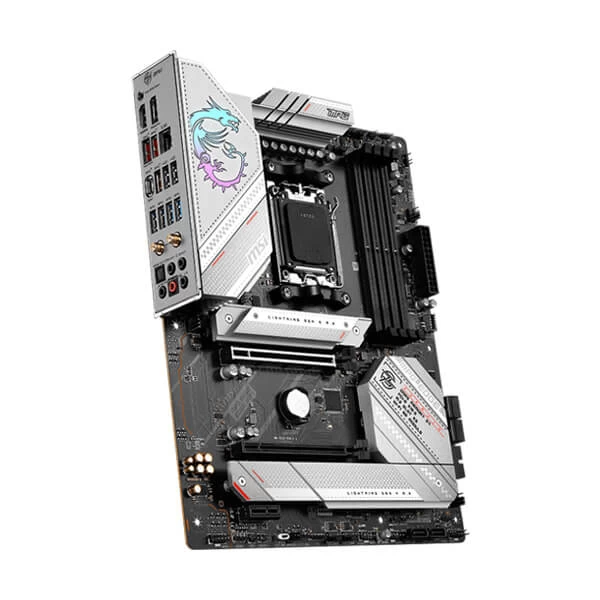

| BACK PANEL PORTS |
Display Port
2.5G LAN
USB 2.0 (Type-A)
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2×2 20Gbps (Type-C)
USB 3.2 Gen 1 5Gbps (Type-A)
Optical S/PDIF Out |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension |
ATX |
