Model	AMD Ryzen™ 5 8600G
Platform	Desktop
Product Family	AMD Ryzen™ Processors
Product Line	AMD Ryzen™ 5 8000 G-Series Desktop Processors with Radeon®™ Graphics
AMD PRO Technologies	No
Consumer Use	Yes
Regional Availability	Global
Former Codename	"Phoenix"
Architecture	"Zen 4"
# of CPU Cores	6
Multithreading (SMT)	Yes
# of Threads	12
Max. Boost Clock	Up to 5.0GHz
Base Clock	4.3GHz
L2 Cache	6MB
L3 Cache	16MB
Default TDP	65W
AMD Configurable TDP (cTDP)	45-65W
Processor Technology for CPU Cores	TSMC 4nm FinFET
CPU Compute Die (CCD) Size	178mm²
Package Die Count	1
Unlocked for Overclocking	Yes
AMD EXPO™ Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen™ Master Support	Yes
CPU Socket	AM5
CPU Boost Technology	Precision Boost 2
Instruction Set	x86-64
Supported Extensions	AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax)	95°C
*OS Support	Windows® 11 - 64-Bit Edition Windows® 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer.
Connectivity
Native USB 4 (40Gbps) Ports	2
Native USB 3.2 Gen 2 (10Gbps) Ports	2
Native USB 2.0 (480Mbps) Ports	1
PCI Express® Version	PCIe® 4.0
Native PCIe® Lanes (Total/Usable)	20 / 16
NVMe Support	Boot, RAID0, RAID1
System Memory Type	DDR5
Memory Channels	2
Max. Memory	256GB
System Memory Subtype	UDIMM
Max Memory Speed	2x1R DDR5-5200 2x2R DDR5-5200 4X1R DDR5-3600 4x2R DDR5-3600
Graphics Capabilities
Integrated Graphics	Yes
Graphics Model	AMD Radeon®™ 760M
Graphics Core Count	8
Graphics Frequency	2800 MHz
DirectX® Version	2.1
DisplayPort Extensions	HDR Metadata Adaptive-Sync UHBR10
DisplayPort Max Refresh Rates (SDR)	7680x4320 @ 60Hz 3840x2160 @ 240Hz 3440x1440 @ 360Hz 2560x1440 @ 480Hz 1920x1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR)	7680x4320 @ 60Hz 3840x2160 @ 240Hz 3440x1440 @ 360Hz 2560x1440 @ 480Hz 1920x1080 @ 600Hz
HDMI® Version	2.1
HDCP Version Supported	2.3
USB Type-C® DisplayPort™ Alternate Mode	Yes
Multi-Monitor Support	Yes
Max Displays	4
AMD FreeSync™	Yes
Wireless Display	Miracast
Max Video Encode Bandwidth (SDR)	1080p630 8bpc H.264 1440p373 8bpc H.264 2160p175 8bpc H.264 1080p630 8bpc H.265 1440p373 8bpc H.265 2160p175 8bpc H.265 4320p43 8bpc H.265 1080p864 8/10bpc AV1 1440p513 8/10bpc AV1 2160p240 8/10bpc AV1 4320p60 8/10bpc AV1
Max Video Decode Bandwidth	1080p60 8bpc MPEG2 1080p60 8bpc VC1 1080p786 8/10bpc VP9 2160p196 8/10bpc VP9 4320p49 8/10bpc VP9 1080p1200 8bpc H.264 2160p300 8bpc H.264 4320p75 8bpc H.264 1080p786 8/10bpc H.265 2160p196 8/10bpc H.265 4320p49 8/10bpc H.265 1080p960 8/10bpc AV1 2160p240 8/10bpc AV1 4320p60 8/10bpc AV1
AMD SmartAccess Memory	Yes
AI Engine Capabilities
Brand Name	AMD Ryzen™ AI
AMD Ryzen™ AI	Available
Performance	Up to 16 TOPS

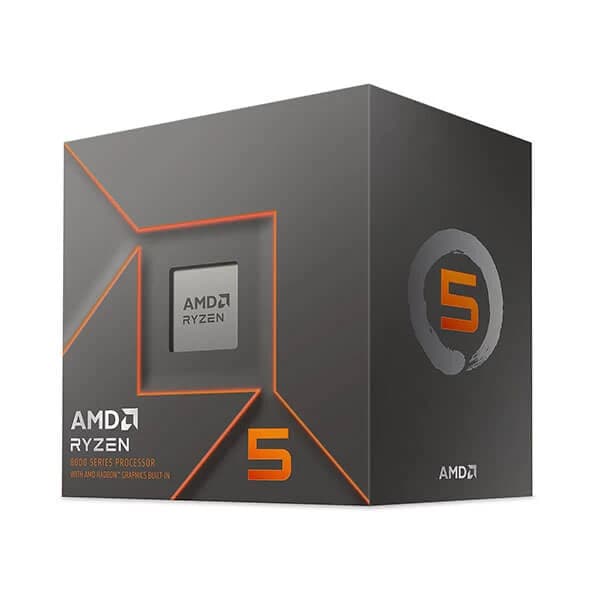

AMD Ryzen 5 8600G Processor With Radeon® Graphics

The AMD Ryzen 5 8600G processor comes with AMD Radeon® 760M graphics built in to get you in the game, no graphics card necessary.
