Technical Specifications

Output

Max Configurable Power (Watts)

1.2kWatts / 2.2kVA

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6 ms typical : 10 ms maximum

Input frequency

50/60 Hz +/- 5 Hz Auto-sensing

Input voltage range for main operations

140 - 300 (230 V) ACV

Number of Power Cords

Input Power Factor at Full Load

0.54

Battery type

Lead-acid battery

Typical recharge time

8hour(s)

Nominal Battery Voltage

24 V

Expected Battery Life (years)

2 - 3

Battery Volt-Amp-Hour Capacity

216

Runtime

View Runtime Graph

Efficiency

View Efficiency Graph

Control panel

LED Status display with on line : on battery

Audible Alarm

Alarm when on battery : distinctive low battery alarm

Surge energy rating

273Joules

Maximum Height

190MM, 19.0CM

Maximum Width

140MM, 14.0CM

Maximum Depth

390MM, 39.0CM

Net Weight

12.2KG

Shipping weight

13.2KG

Shipping Height

297MM, 29.7CM

Shipping Width

235MM, 23.5CM

Shipping Depth

495MM, 49.5CM

Color

Black

SCC Codes

10731304404627

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (Non-condensing) %

Operating Elevation

0 - 3000meters

Storage Temperature

-15 - 40 °C

Storage Relative Humidity

0 - 95 (Non-condensing) %

Storage Elevation

0 - 3000meters

Audible noise at 1 meter from surface of unit

40.0dBA

Protection Class

IP20

Approvals

CB , CE, EN/IEC 62040-1, EN/IEC 62040-2

Equipment protection policy

Lifetime : 50000 euros

Technical Specifications

Output

Input

Batteries & Runtime

Communications & Management

Surge Protection and Filtering

Physical

Environmental

Conformance

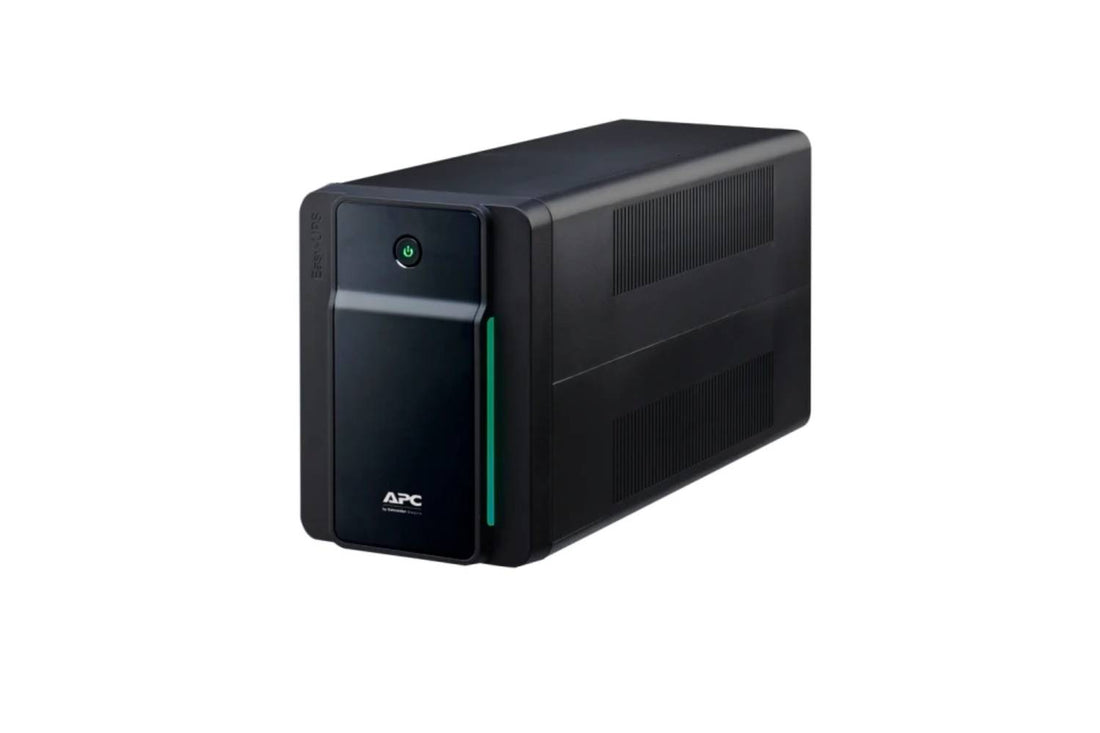

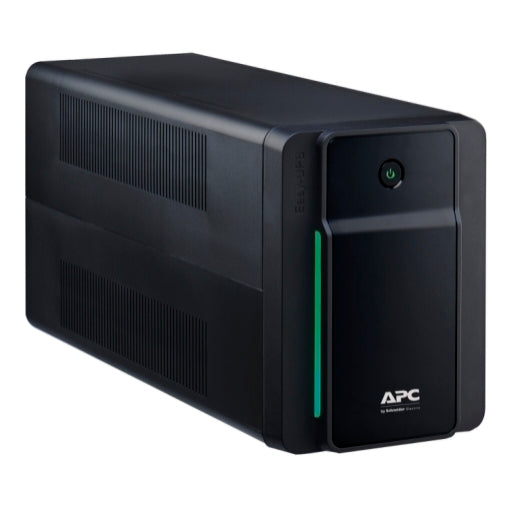

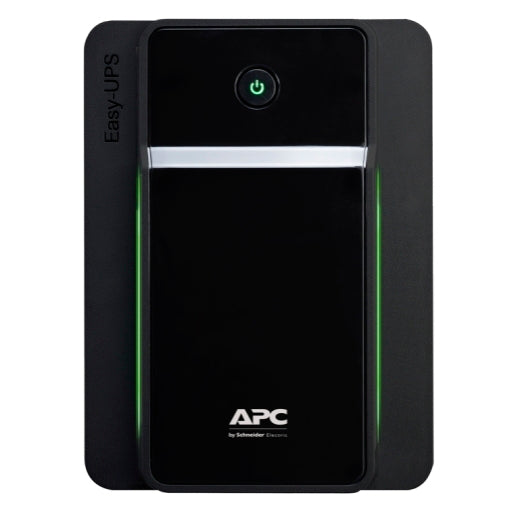

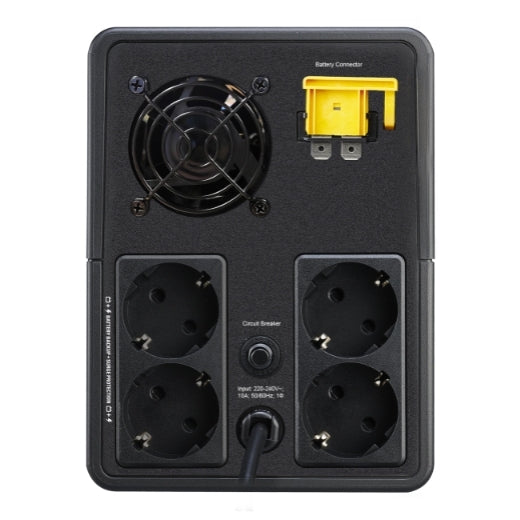

APC Easy UPS BVX 2200VA, 230V, AVR, Schuko Sockets BVX2200LI-IN
