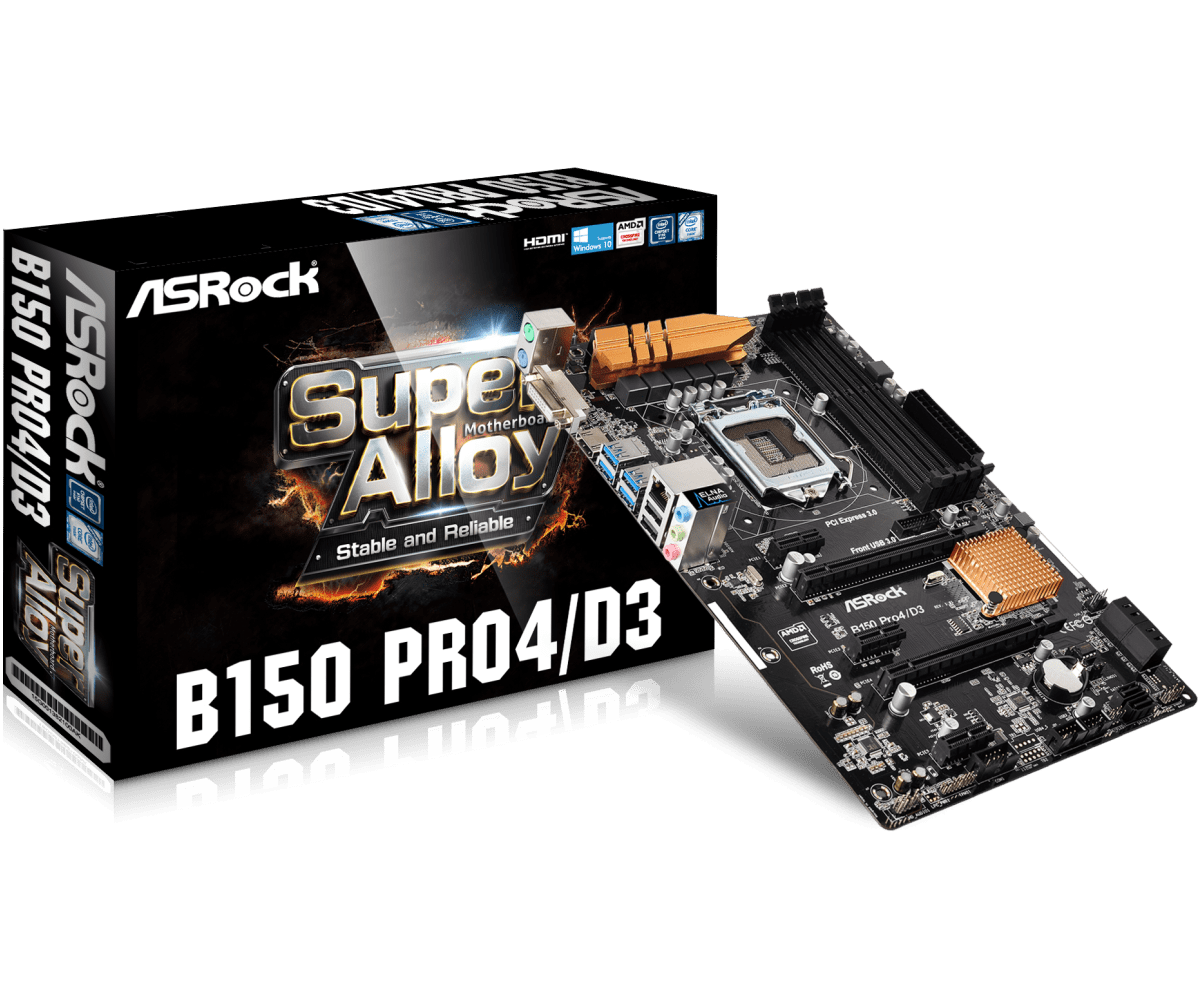

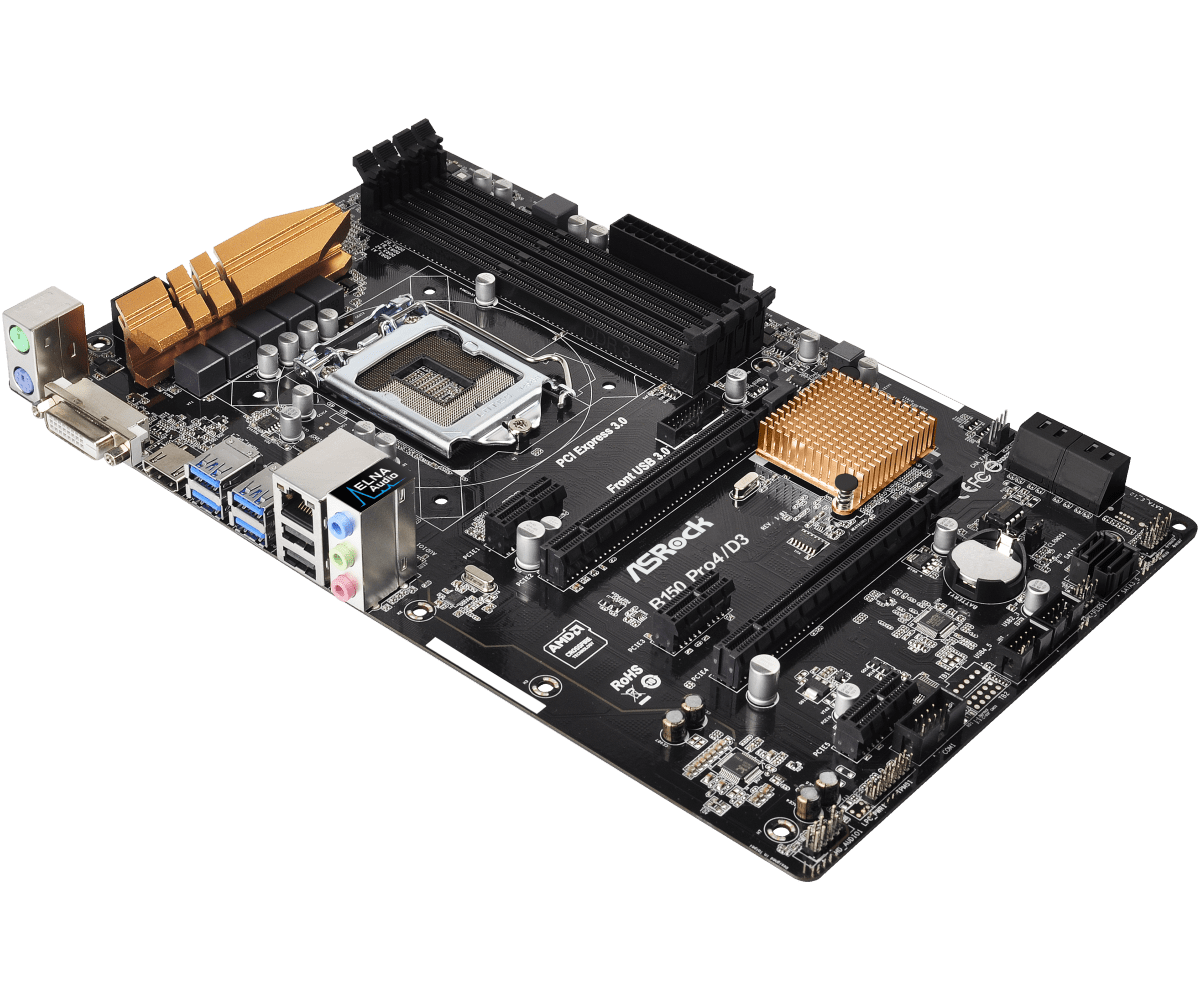

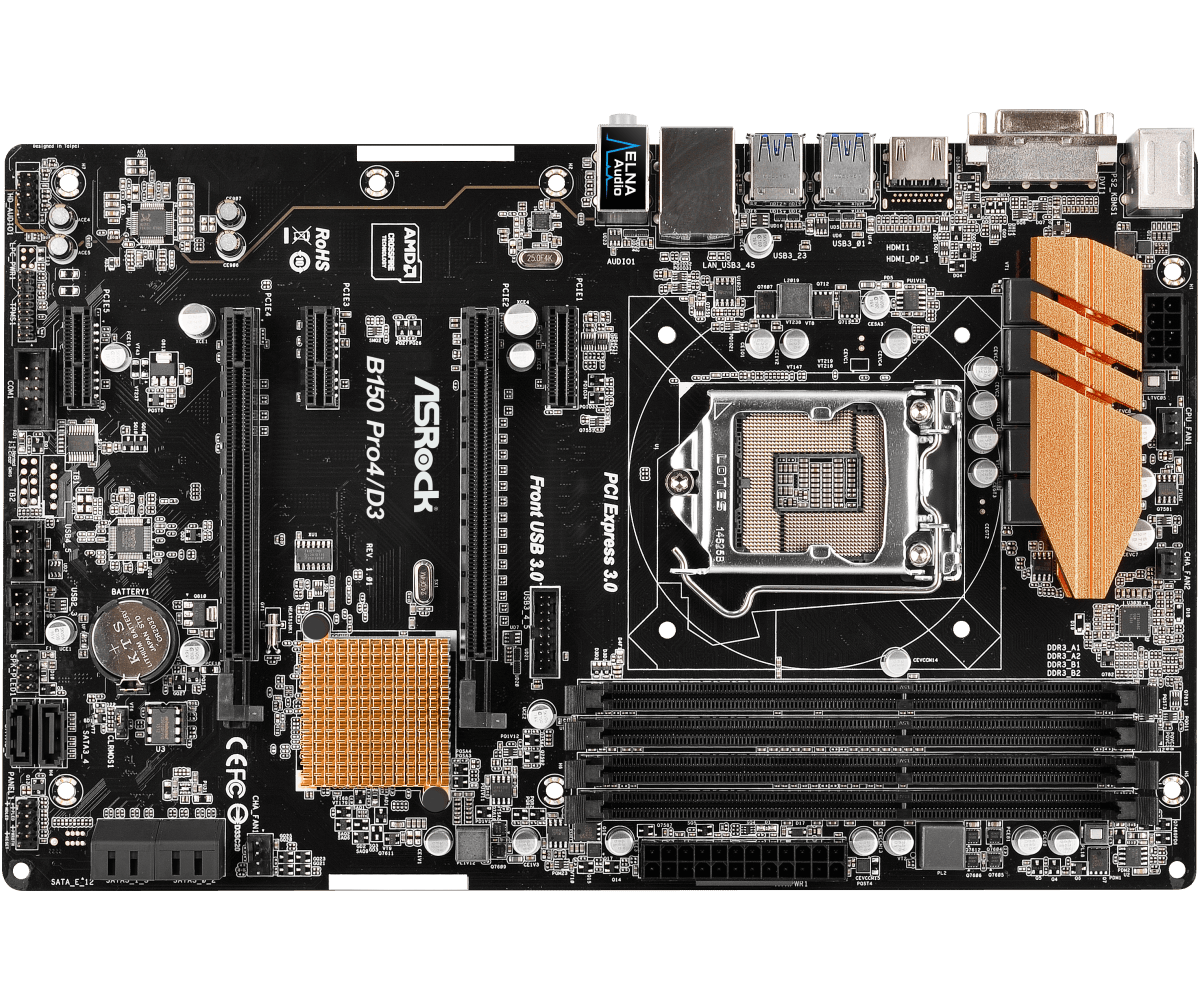

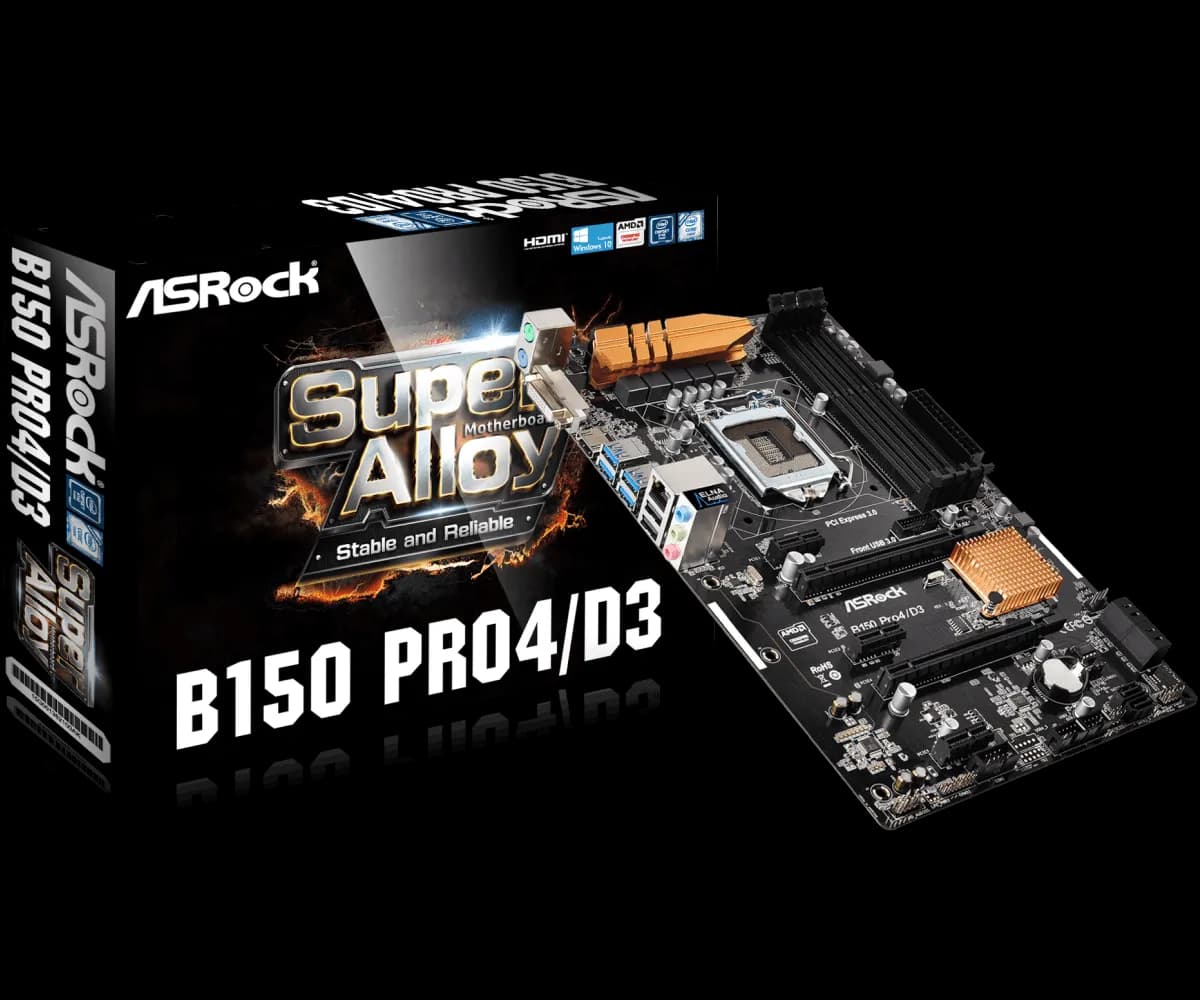

Asrock B150 Pro4/D3 Mining Motherboard

ASRock
100% Genuine
Asus
Availability:

Out of stock
Compare

₹11,000

Out of stock

Hassle Free Returns

Please read return policy

Fast Shipping

All orders are shipped in 1-3 business days.

Secure Checkout

SSL Enabled Secure Checkout

  • ASRock Super Alloy
  • Supports 7th and 6th Generation Intel® Core™ Processors (Socket 1151)
    *8th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only
  • Supports Dual Channel DDR3/DDR3L 1866(OC)
  • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output Options: DVI-D, HDMI
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3
  • 6 USB 3.1 Gen1 (2 Front, 4 Rear)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop
SKU: B150 Pro4/D3 Categories: , , ,
Weight 2 kg
Brand

Asus
Intel Socket

,

Intel Generation

,

  • Unique Feature
    ASRock Super Alloy
    – High Density Glass Fabric PCB
    ASRock Full Spike Protection
    ASRock Live Update & APP Shop
  • CPU
    – Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151)
    – Supports Intel® Turbo Boost 2.0 Technology
  • Chipset
    – Intel® B150
    – Supports Intel® Small Business Advantage 4.0
  • Memory

    – Dual Channel DDR3/DDR3L Memory Technology
    – 4 x DDR3/DDR3L DIMM Slots
    – Supports DDR3/DDR3L 1866(OC)/1600/1333/1066 non-ECC, un-buffered memory*
    – Supports ECC UDIMM memory modules (operate in non-ECC mode)
    – Max. capacity of system memory: 64GB**
    – Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

    *To prevent system instability, either install DDR3L DIMMs or DDR3 DIMMs with voltage lower than 1.5V.

    Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS
    – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    – ACPI 5.0 Compliant wake up events
    – SMBIOS 2.7 Support
    – CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Voltage Multi-adjustment
  • Graphics

    – Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530
    – Pixel Shader 5.0, DirectX 12
    – Max. shared memory 1024MB*
    – Dual graphics output: Support DVI-D and HDMI ports by independent display controllers
    – Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
    – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
    – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    – Supports Accelerated Media Codecs: HEVC, VP8, VP9
    – Supports HDCP with DVI-D and HDMI Ports
    – Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

    *The size of maximum shared memory may vary from different operating systems.

    **Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

    ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

  • Audio

    – 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
    – Premium Blu-ray Audio support
    – Supports Surge Protection (ASRock Full Spike Protection)
    – ELNA Audio Caps

    *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    – Realtek RTL8111GR
    – Supports Wake-On-WAN
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection (ASRock Full Spike Protection)
    – Supports LAN Cable Detection
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Slots

    – 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
    – 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    – Supports AMD Quad CrossFireX™ and CrossFireX™

    *Supports NVMe SSD as boot disks
  • Storage
    – 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
  • Connector

    – 1 x COM Port Header
    – 1 x TPM Header
    – 1 x Power LED and Speaker Header
    – 1 x CPU Fan Connector (4-pin)
    – 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
    – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

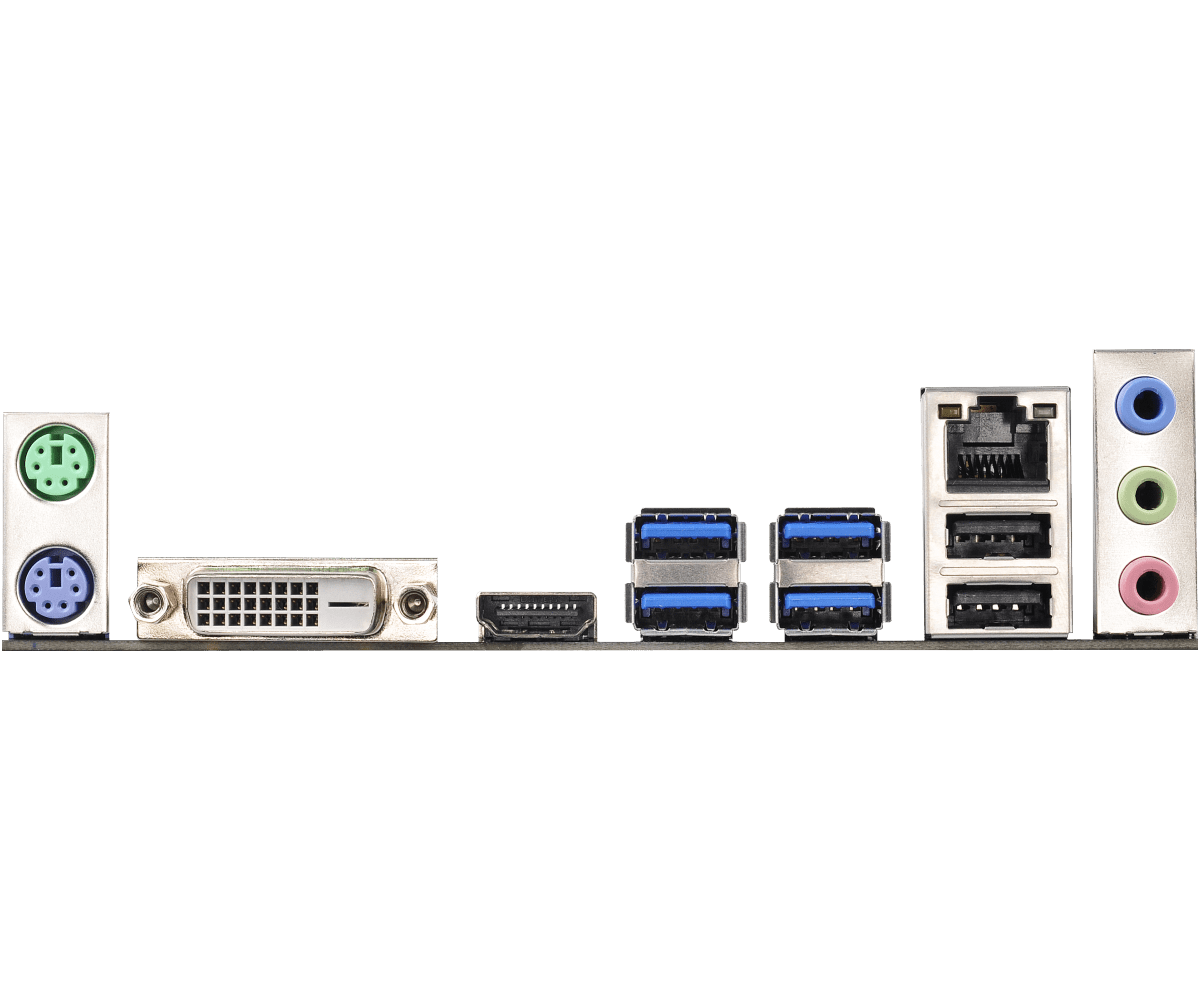

  • Rear Panel I/O
    – 1 x PS/2 Mouse Port
    – 1 x PS/2 Keyboard Port
    – 1 x DVI-D Port
    – 1 x HDMI Port
    – 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI

    Software
    – ASRock Disk Health Report
    – ASRock USB Key
    – ASRock APP Charger
    – ASRock XFast LAN
    – ASRock XFast RAM
    – ASRock Fast Boot (Fast Boot, Restart to UEFI)
    UEFI
    – ASRock Full HD UEFI
    – ASRock My Favorites in UEFI
    – ASRock Instant Flash
    – ASRock Internet Flash
    – ASRock Crashless BIOS
    – ASRock OMG (Online Management Guard)
    – ASRock UEFI Tech Service
    – ASRock Easy Driver Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    – Quick Installation Guide, Support CD, I/O Shield
    – 2 x SATA Data Cables
  • Hardware Monitor
    – CPU, Chassis temperature sensing
    – CPU, Chassis Fan Tachometer
    – CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
    – CPU, Chassis Fan multi-speed control
    – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor
    – ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm
    – Solid Capacitor design
  • OS

    – Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

    *To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please see our online tutorial or check our User Manual for more detailed instructions.

    *For the updated Windows® 10 driver, please visit ASRock’s website for details.

  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)

Warranty

3 Months Warranty
