-38%
,

Asus Prime B650M-A Wifi II Am5 Micro Atx Motherboard

100% Genuine
Asus

18,669 29,999

You Save: 11,330
FOUND THIS PRODUCT AT A LOWER PRICE?
Hassle Free Returns

Please read return policy

Fast Shipping

All orders are shipped in 1-3 business days.

Secure Checkout

SSL Enabled Secure Checkout

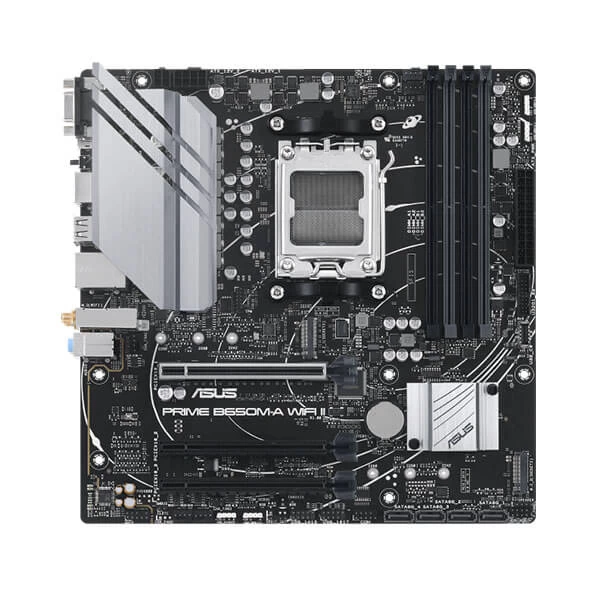

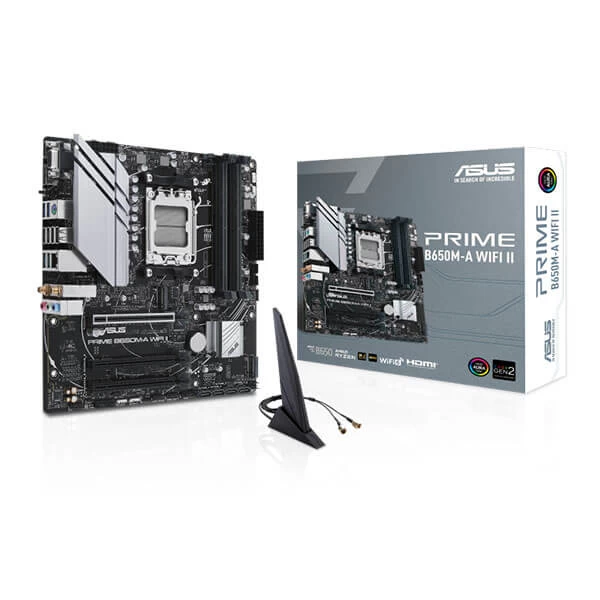

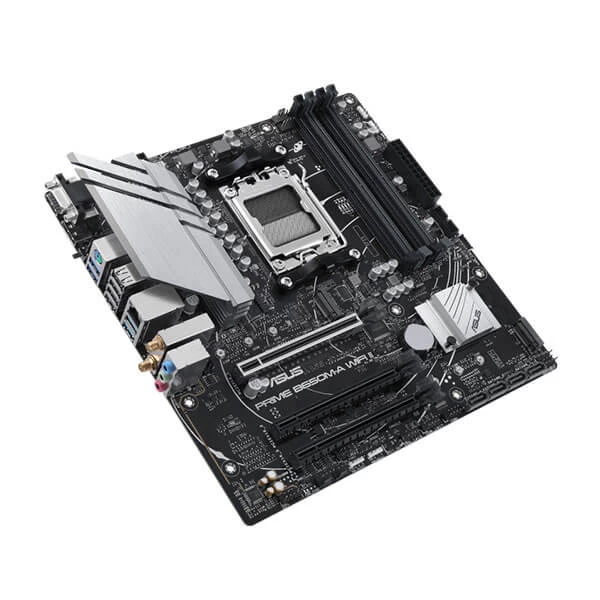

Asus Prime B650M-A Wifi II Am5 Micro Atx Motherboard

ASUS Prime B650M-A Wifi II AM5 Micro Atx motherboards are engineered to unleash the full potential of AMD Ryzen 7000-series processors.

Features:

AMD B650 Micro-ATX MOTHERBOAR DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Arua Sync

  • AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
  • Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
SKU: PRIMEB650M-A-WF-II Categories: , Tags: , , ,
Weight 2 kg
Brand

Asus

Amd Socket

Warranty

3 Years

Model PRIME-B650M-A-WIFI-II
CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Chipset AMD B650 Chipset
Memory 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II

  • Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration
  • Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics 1 x DisplayPort
1 x VGA port
1 x HDMI® port

  • Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  • Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors

  • 1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD B650 Chipset

  • 2 x PCIe 4.0 x16 slots (support x1 mode)
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD B650 Chipset

  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2
USB Rear USB (Total 8 ports)

  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback

Audio Features

  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
Back Panel I/O Ports
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x VGA port
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™ button
  • 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 3 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector

Storage related

  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– Safeslot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x Screw Package for M.2 SSD
Documentation
1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
