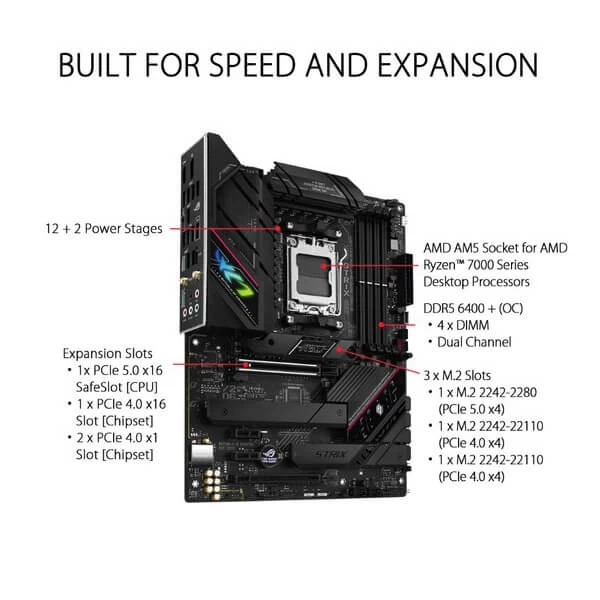

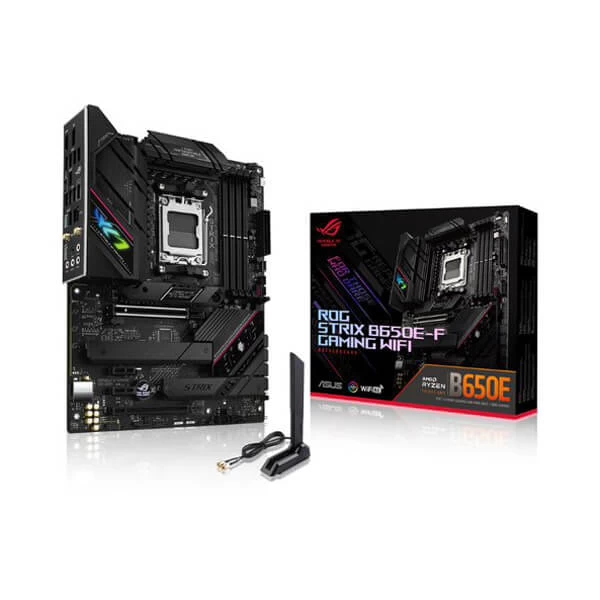

AMD B650E AM5 ATX motherboard with 12 + 2 power stages, DDR5, PCIe® 5.0 NVMe® SSD support, one PCIe 5.0 x16 SafeSlot with Q-Release, USB 3.2 Gen 2×2 Type-C® rear I/O port, USB 3.2 Gen 2 Type-C® front-panel connector, WiFi 6E, and Aura Sync RGB lighting
- AMD Socket AM5: Ready for AMD Ryzen™ 7000 Series desktop processors
- Robust Power Solution:12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
- Optimized Thermal Design:Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads
- Next-Gen M.2 Support: One PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance
- Advanced Connectivity:One USB 3.2 Gen 2×2 Type-C® and eleven additional rear USB ports, USB 3.2 Gen 2 Type-C® front-panel connector, HDMI® 2.1, DisplayPort™ 1.4, and one PCIe 5.0 x16 SafeSlot
- High-Performance Networking:On-board WiFi 6E (802.11ax), Bluetooth® 5.2, and Intel® 2.5G Ethernet with ASUS LANGuard
- Intelligent Control:ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking
- Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Unmatched Personalization:ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY-Friendly Design:PCIe® Slot Q-release, M.2 Q-Latch, Pre-mounted I/O shield, and BIOS FlashBack™ button
- Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate RGB and device manager, and bundled 60-day AIDA64 Extreme trial
This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.
-AMD Socket AM5: Ready for AMD Ryzen™ 7000 Series desktop processors
-Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
-Optimized Thermal Design: Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads
-Next-Gen M.2 Support: One PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance
-Advanced Connectivity: One USB 3.2 Gen 2×2 Type-C® and eleven additional rear USB ports, USB 3.2 Gen 2 Type-C® front-panel connector, HDMI® 2.1, DisplayPort™ 1.4, and one PCIe 5.0 x16 SafeSlot
-High-Performance Networking: On-board WiFi 6E (802.11ax), Bluetooth® 5.2, and Intel® 2.5G Ethernet with ASUS LANGuard
-Intelligent Control: ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking
-Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
-Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
-DIY-Friendly Design: PCIe® Slot Q-release, M.2 Q-Latch, Pre-mounted I/O shield, and BIOS FlashBack™ button
-Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate RGB and device manager, and bundled 60-day AIDA64 Extreme trial
-Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
-Optimized Thermal Design: Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads
-Next-Gen M.2 Support: One PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance
-Advanced Connectivity: One USB 3.2 Gen 2×2 Type-C® and eleven additional rear USB ports, USB 3.2 Gen 2 Type-C® front-panel connector, HDMI® 2.1, DisplayPort™ 1.4, and one PCIe 5.0 x16 SafeSlot
-High-Performance Networking: On-board WiFi 6E (802.11ax), Bluetooth® 5.2, and Intel® 2.5G Ethernet with ASUS LANGuard
-Intelligent Control: ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking
-Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
-Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
-DIY-Friendly Design: PCIe® Slot Q-release, M.2 Q-Latch, Pre-mounted I/O shield, and BIOS FlashBack™ button
-Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate RGB and device manager, and bundled 60-day AIDA64 Extreme trial
DIY FRIENDLY
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.
BIOS FLASHBACK™ BUTTON
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.
PCIE 5.0
Take advantage of future storage and GPU performance with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all with robust heatsinks, and a PCIe 5.0 x16 slot that features SafeSlot for increased durability and Q-Release for easy upgrades.
POWER DESIGN
POWER ARCHITECTURE
12 + 2 power stages, rated to 80A each deliver ample current in order to drive AMD Ryzen™ 7000 Series processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
EIGHT-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
MEMORY
DDR5 STRENGTH
For those who want to fly past stock DDR5 speeds, the Strix B650E-F is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized profiles with higher frequency and tighter timings that you can effortlessly apply to unleash performance.

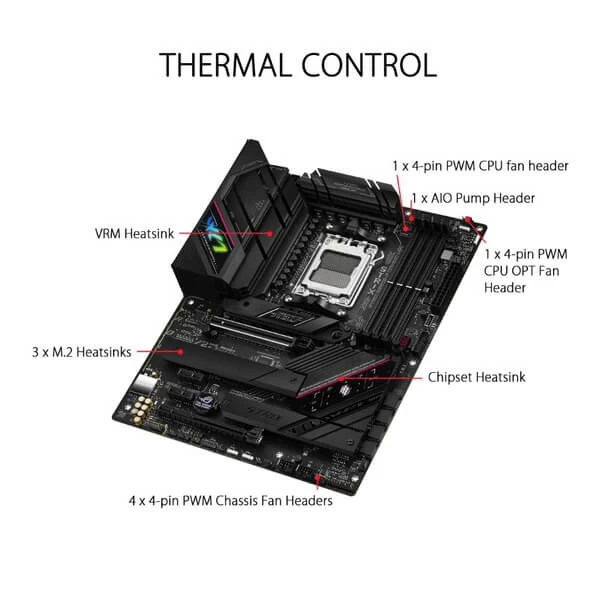

COOLING
1. VRM HEATSINKS
Two VRM heatsinks, with one expanding underneath the I/O shroud, provide ample surface area and mass to handle the power needs of high-performance AMD Ryzen™ 7000 Series processors.
2. HIGH-CONDUCTIVITY THERMAL PADS
High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
2. M.2 HEATSINKS
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
3. CPU FAN HEADERS
A PWM/DC fan header provides easy access to CPU coolers.
4. AIO PUMP FAN HEADER
A dedicated PWM/DC header connects self-contained water-cooling setups.
5. 4-PIN FAN HEADERS
Each header supports auto-detection of PWM or DC fans.
NETWORKING
1. WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
2. Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B650E-F implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
