AXIAL-TECH UPGRADES Air Superiority
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 14% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
NEW DIRECTION Well-maintained Formation
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
MILITARY-GRADE 20K CAPACITORS Resilient Squadron
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.
RELIABILITY BOOST
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
AURA SYNC Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
Pair with a PSU
Use our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG Thor, ROG Loki, or ROG Strix AURA PSU for ultimate performance.
Technical Detail
Brand : Asus
Modal : TUF-RX7900XT-O20G-GAMING
Technical Spec

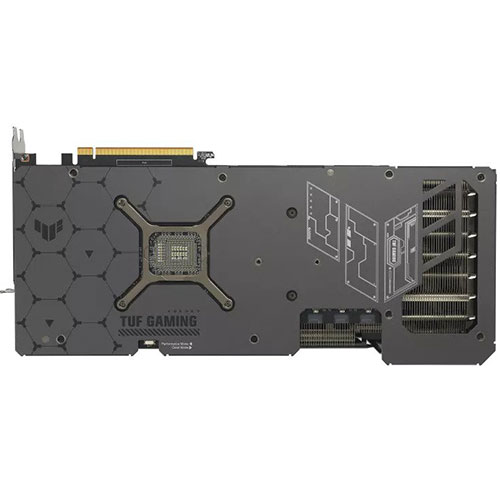

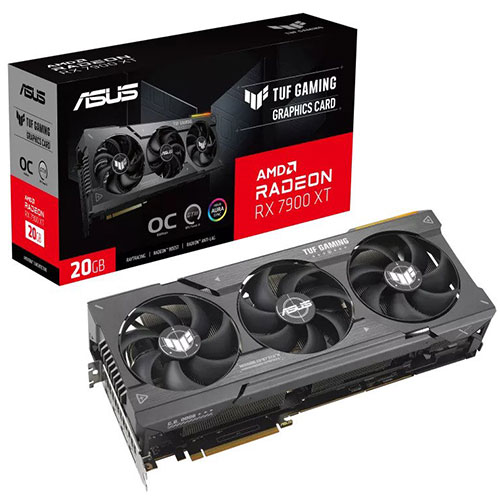

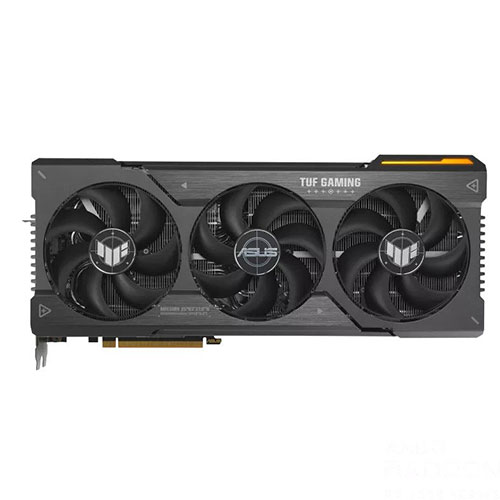

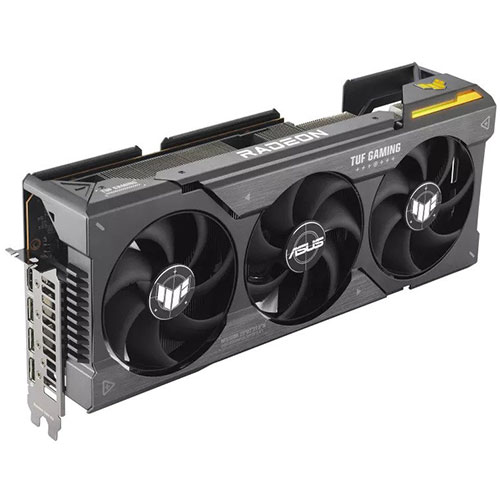

Model ; ASUS TUF Gaming Radeon RX 7900 XT OC Edition 20GB GDDR6
Graphic Engine ; AMD Radeon™ RX 7900 XT
Bus Standard ; PCI Express 4.0
OpenGL : OpenGL®4.6
Video Memory : 20GB GDDR6
Engine Clock : OC mode : up to 2535 MHz (Boost Clock)/up to 2175 MHz (Game Clock), Default mode : up to 2500 MHz (Boost Clock)/up to 2130 MHz (Game Clock)
Stream Processors : 5376
Memory Speed : 20 Gbps
Memory Interface : 320-bit
Resolution ; Digital Max Resolution 7680 x 4320
Interface : Yes x 1 (Native HDMI 2.1), Yes x 3 (Native DisplayPort 2.1), HDCP Support Yes (2.3)
Maximum Display Support : 4
NVlink/ Crossfire Support : No
Accessories
1 x TUF certificate of Reliability
1 x TUF Gaming Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x Collection card
1 x Thank you card
1 x Speedsetup Manual
Software
ASUS GPU Tweak III & Drivers: please download all software from the support site.
Dimensions
13.9 x 6.23 x 2.86 inches
352.9 x 158.2 x 72.6 mm
Recommended PSU : 750W
Power Connectors : 3 x 8-pin
Slot : 3.63 Slot
AURA SYNC : ARGB
