AX1800 Whole-Home Mesh WiFi 6 System – Coverage up to 4,800 Sq. ft. / 5+ rooms, easy setup, life-time free network security & parental controls
- Banish WiFi Dead Zone— Mesh WiFi system with unique antenna placement delivers strong WiFi to every corner of your home, providing a total wireless speed of 1800Mbps.
- Hassle-Free Control – 3 steps setup and easy management with ASUS Router App
- Always Up-to-date Protection — The lifetime free cloud-based security powered by Trend Micro™ makes sure your privacy on connected devices is protected.
- Parental Controls — URL filter and scheduling allow you to protect your family from inappropriate content and unhealthy Internet usage behavior.
- AiMesh Supported– Mix and match ZenWiFi with AiMesh-compatible routers to form a powerful and flexible whole-home WiFi system
Whole-home Coverage

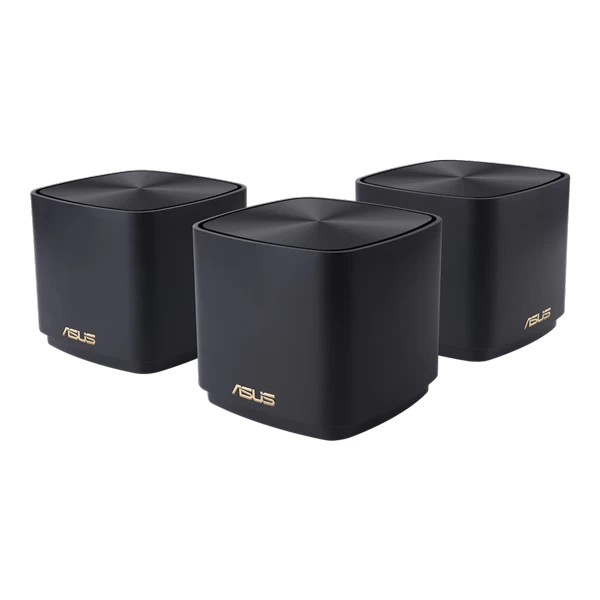

The ZenWiFi AX Mini system consists of one ASUS AX1800 WiFi 6 router and two extending node, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
WiFi 6
ZenWiFi AX Mini puts your WiFi into top gear! With a total bandwidth of up to of 1800 Mbps, it’s up to 1.4X faster*
than WiFi 5 routers **.
* Compatible WiFi 6 device required.
** The data compares speed of 2X2 11ax on 5GHz 80 MHz bandwidth with 1024QAM modulation to speed of 2×2 11ac on 5GHz 80MHz with 256QAM modulation.
than WiFi 5 routers **.
* Compatible WiFi 6 device required.
** The data compares speed of 2X2 11ax on 5GHz 80 MHz bandwidth with 1024QAM modulation to speed of 2×2 11ac on 5GHz 80MHz with 256QAM modulation.
Easier-than-ever Setup
3-step setup with the ASUS Router app:
1. Turn on ZenWiFi AX Mini
2. Create a WiFi network name and an admin account
3. Wait for 3 minutes, and you’re done!
1. Turn on ZenWiFi AX Mini
2. Create a WiFi network name and an admin account
3. Wait for 3 minutes, and you’re done!
What makes ZenWiFi AX Mini setup so easy?
1. One-time setup, with auto synchronization for all the hubs in each package
2. At a glance: You must start setup using the router, which is the unit with a removable clear plastic strip wrapped around it.
Smart Looks for Smart Homes
ZenWiFi AX Mini works perfectly with smart-home services — including Alexa skills and IFTTT — and is available in charcoal or white to suit your décor.
Make the Internet a Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that’s happening on your network via the mobile app.
24/7 Auto Update
ZenWiFi keeps your network running securely with automatic firmware updates and is always in sync with Trend Micro’s cloud database, so you can always enjoy the best Internet experience.
Block Access to Malicious Websites
AiProtection uses Trend Micro’s official database to identify and block known malicious sites, preventing infection even before you click.
Infection Detection and Blocking
Even if an already-infected device is connected to ZenWiFi, AiProtection prevents any personal data on the device from being compromised.
Parental Controls
URL filter and scheduling allow you to protect your family from inappropriate content and unhealthy Internet usage behavior.
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
More Stable WiFi with Wired Connections between
ZenWiFi Hubs
ZenWiFi Hubs
If you have Ethernet ports in your walls, you can set ZenWiFi AX Mini to use Ethernet backhaul, reserving all WiFi bands for your wireless devices for even more stable and reliable networking.
AiMesh Technology
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
- Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6
- Coverage
Large homes
- Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11ac : up to 867 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHz) : up to 1201 Mbps - Antenna
Internal dual-band antenna x 2
- Transmit/Receive
MIMO technology
2.4 GHz 2 x 2
5 GHz 2 x 2 - Memory
256 MB Flash
256 MB RAM - Wi-Fi Technology
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth
- Operating Frequency
2.4 GHz / 5 GHz
- Encryption
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
- Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
- VPN Support
IPSec Pass-Through
PPTP Pass-Through
OpenVPN server
PPTP client
L2TP client
OpenVPN client - WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
- Utilities
Router setup wizard; Firmware restoration; Device discovery; printer setup utility
- Ports
RJ45 for 1000 BaseT for WAN/LAN x 1, RJ45 for 1000 BaseT for LAN x 1
- Features
Router app
MU-MIMO
Airtime Fairness
Smart Connect
Traffic Analyzer
Traditional QoS
AiProtection Classic
Parental Control
Guest Network : 9
VPN server : PPTP Server, OpenVPN Server, IPSec server
VPN client : PPTP client, L2TP client, OpenVPN client
IPTV support
OFDMA
Bandwidth Limiter
Beamforming - Button
WPS Button, Reset Button
- LED Indicator
Power x 1
- Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current - OS Support
Windows® 10
Windows® 8
Windows® 7
Mac OS X 10.6 or Above
iOS9.0 (Optional) or higher
AndroidTM - Dimensions
9.0 x 9.0 x 8.0 cm (WxDxH)
- Weight
295 g
- Package Content
Router (XD4R) Node (XD4N) RJ45 Adapter QSG Warranty Card
- Operation mode
Wireless router mode
Access point mode - Note
*Router(XD4R):1x Gigabit WAN/LAN port;1x Gigabit LAN Port; Weight: 295g; Wireless router mode.mesh mode.Access point mode *Node(XD4N):1x Gigabit LAN Port; Weight: 290g; mesh mode *Content may vary in different regions.
