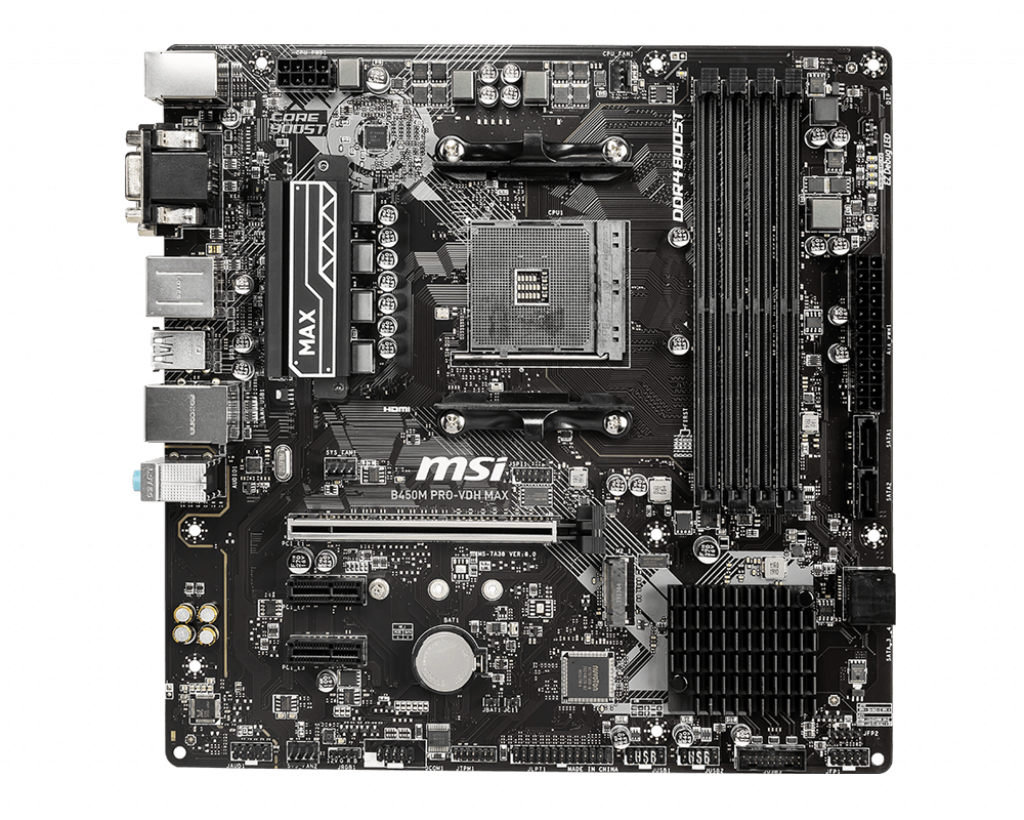

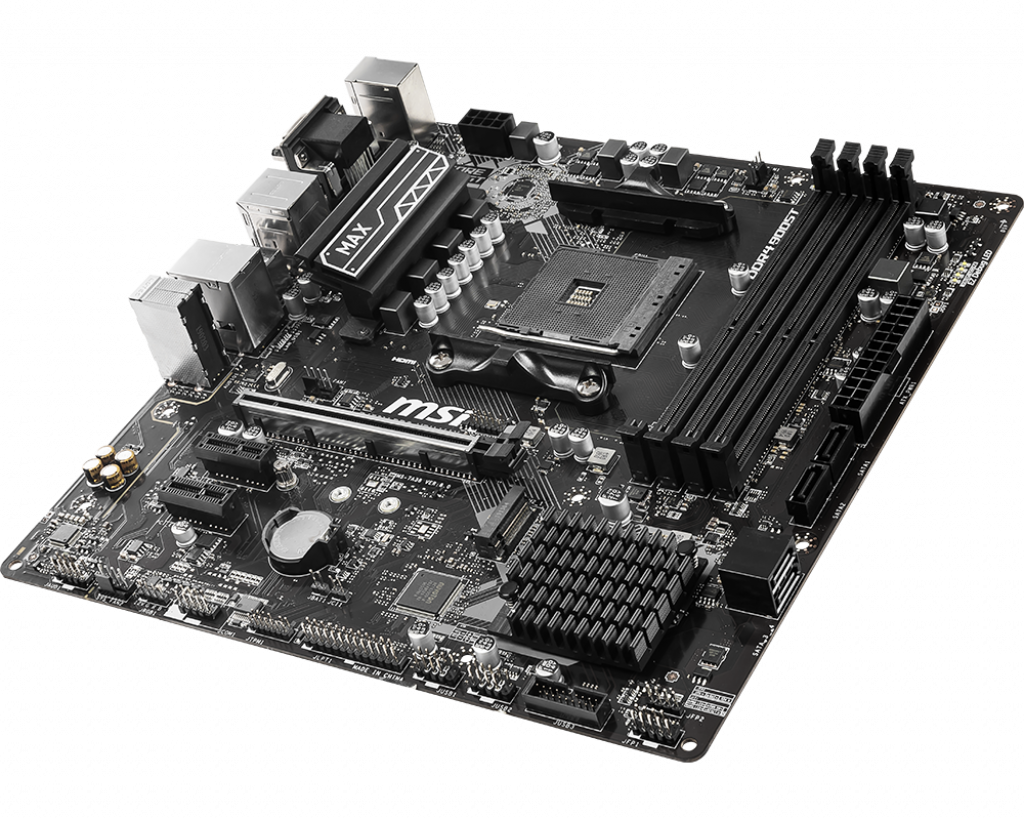

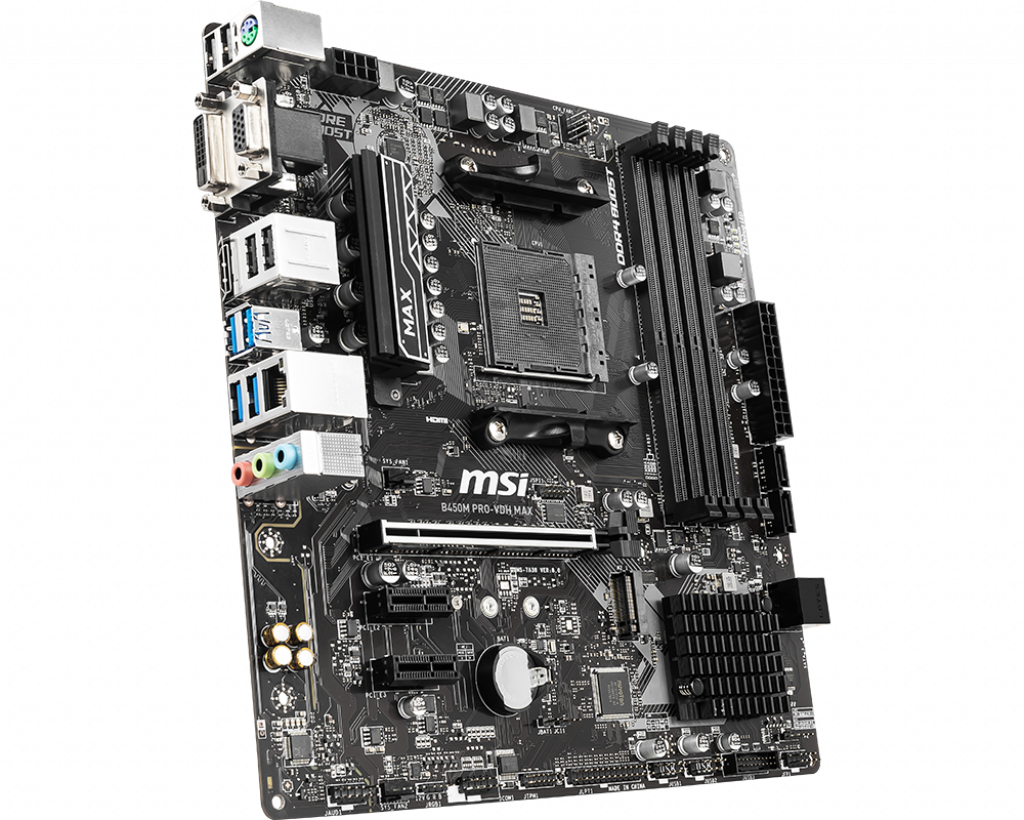

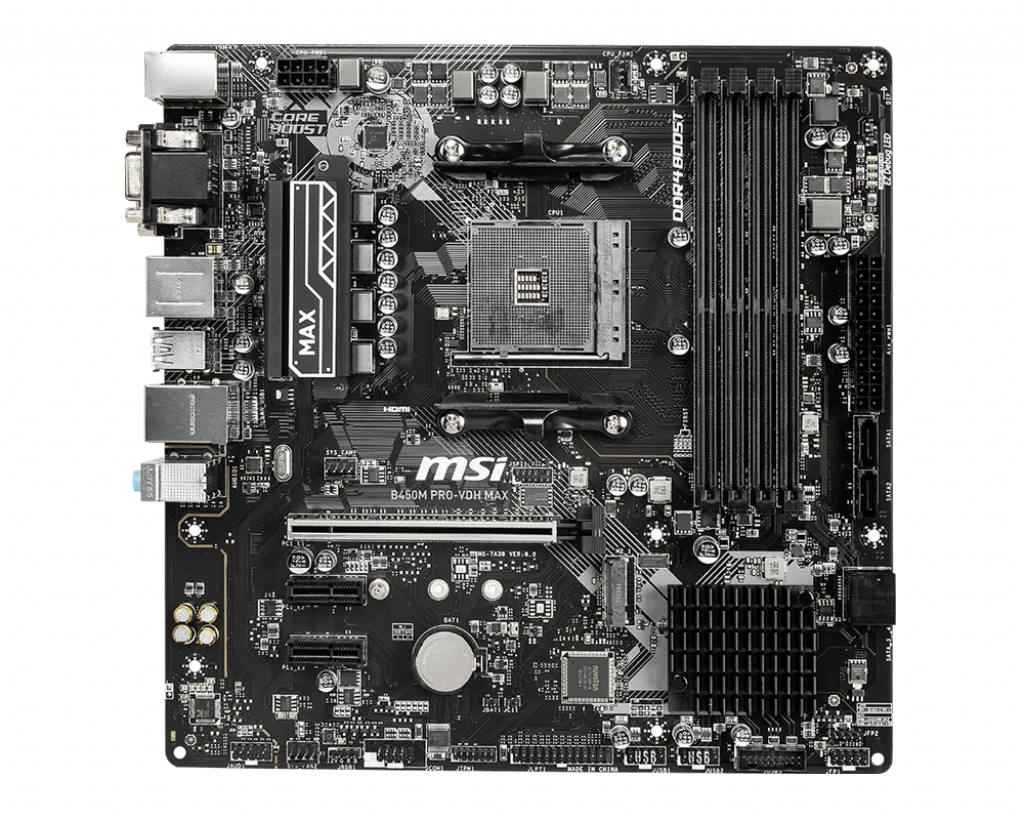

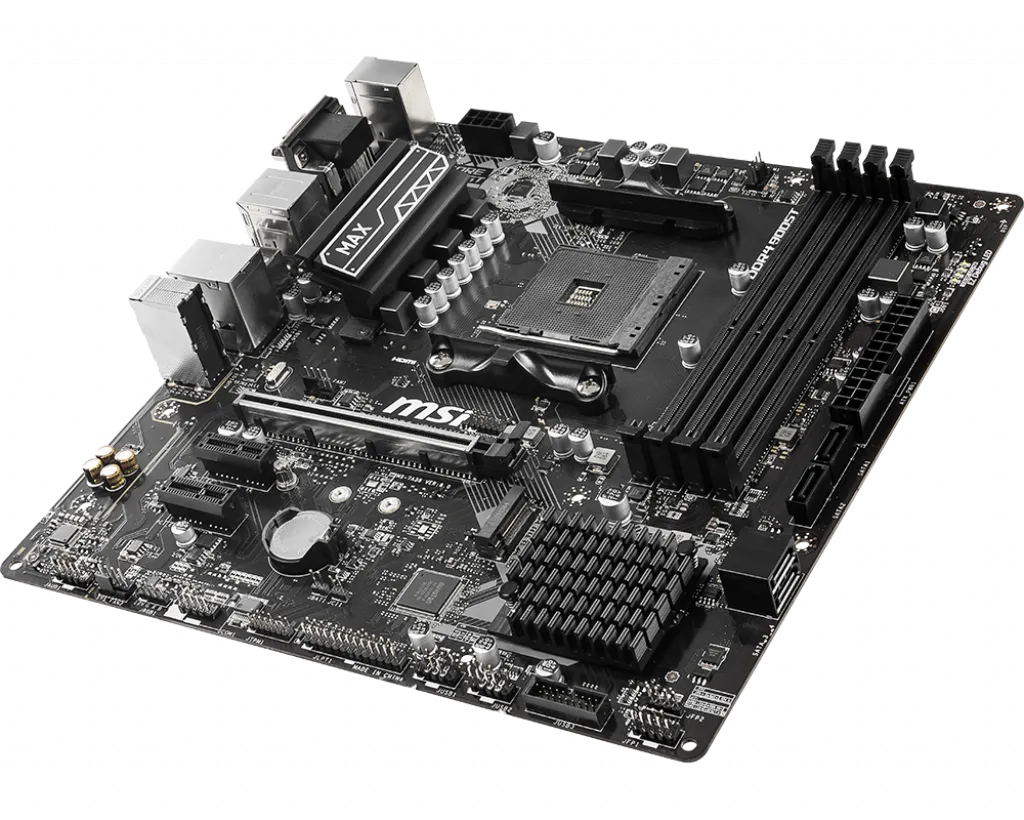

Name: B450M PRO-VDH MAX
Brand: MSI
SKU: B450M PRO-VDH MAX
Price: 5947 INR
Availability: OutOfStock

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Audio Boost, Turbo M.2

Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 3466+(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
Audio Boost: Reward your ears with studio grade sound quality.
EZ Debug LED: Easiest way to troubleshoot
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
PCI-E Steel Armor: Protecting VGA cards against bending and EMI.

Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen?/ Ryzen? with Radeon® Vega Graphics and 2nd Gen AMD Ryzen? with Radeon® Graphics/ Athlon? with Radeon® Vega Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD^? B450 Chipset

Memory

4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.¹
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- For AMD Ryzen Gen3 (R5/R7/R9)
  - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
- For AMD Other Processors
  - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Supports Dual Channel mode
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory

Please refer www.msi.com for more information on compatible memory.

See supported memory

Slots

1 x PCIe 3.0 x16 slot
- 1st, 2nd and 3rd Gen AMD Ryzen? support x16 mode
- Ryzen? with Radeon® Vega Graphics and 2nd Gen AMD Ryzen? with Radeon® Graphics support x8 mode
- Athlon? with Radeon® Vega Graphics support x4 mode
2 x PCIe 2.0 x1 slots

Onboard Graphics

1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz^1,2<
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz^1,2<
1 x HDMI? 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz^1,2<

Only support when using Ryzen? with Radeon® Vega Graphics, 2nd Gen AMD Ryzen? with Radeon® Graphics and Athlon? with Radeon® Vega Graphics processors
Maximum shared memory of 2048 MB

Storage

AMD^? B450 Chipset

4 x SATA 6Gb/s ports
- Supports RAID 0, RAID1 and RAID 10
1 x M.2 slot (Key M)
- Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen?/ Ryzen? with Radeon® Vega Graphics and 2nd Gen AMD Ryzen? with Radeon® Graphics) or PCIe 3.0 x2 (Athlon? with Radeon® Vega Graphics) and SATA 6Gb/s
- Supports 2242/ 2260 /2280 storage devices

USB

AMD^? B450 Chipset

2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

AMD^? processor

4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek^? ALC892 Codec

7.1-Channel High Definition Audio

LAN

1 x Realtek^? 8111H Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED strip connector
1 x Clear CMOS jumper

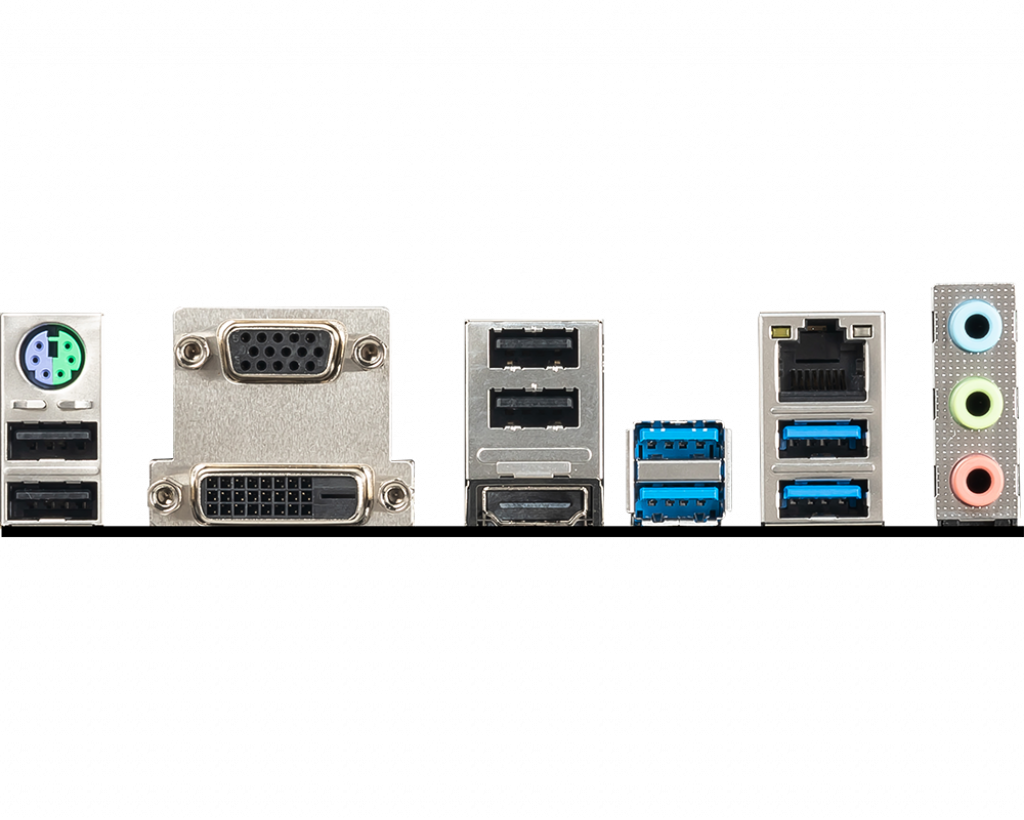

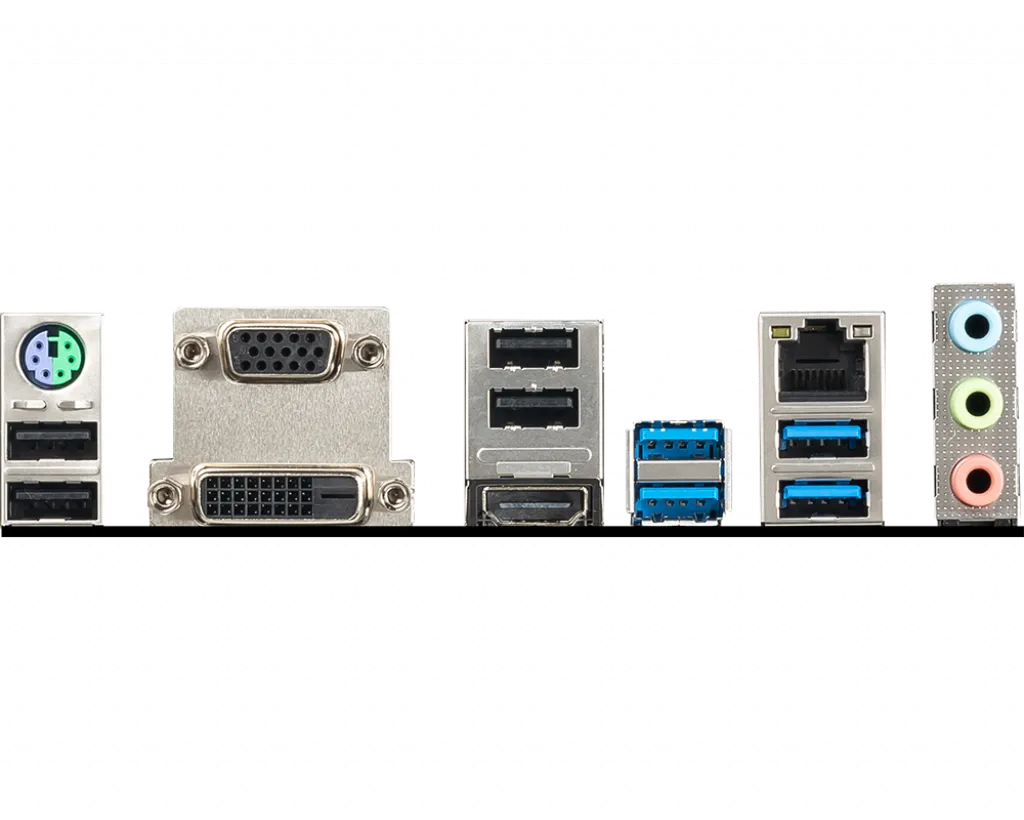

Back panel ports

PS/2
VGA Port
USB 2.0 Port
USB 3.2 Gen1
LAN Port
HD Audio Connectors
DVI-D Port
HDMI Port

Dimensions

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
m-ATX Form Factor

Mounting

8 mounting holes

Operating System

Support for Windows®^? 10 64-bit Support for Windows®^? 7 64-bit * To support Windows®^? 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

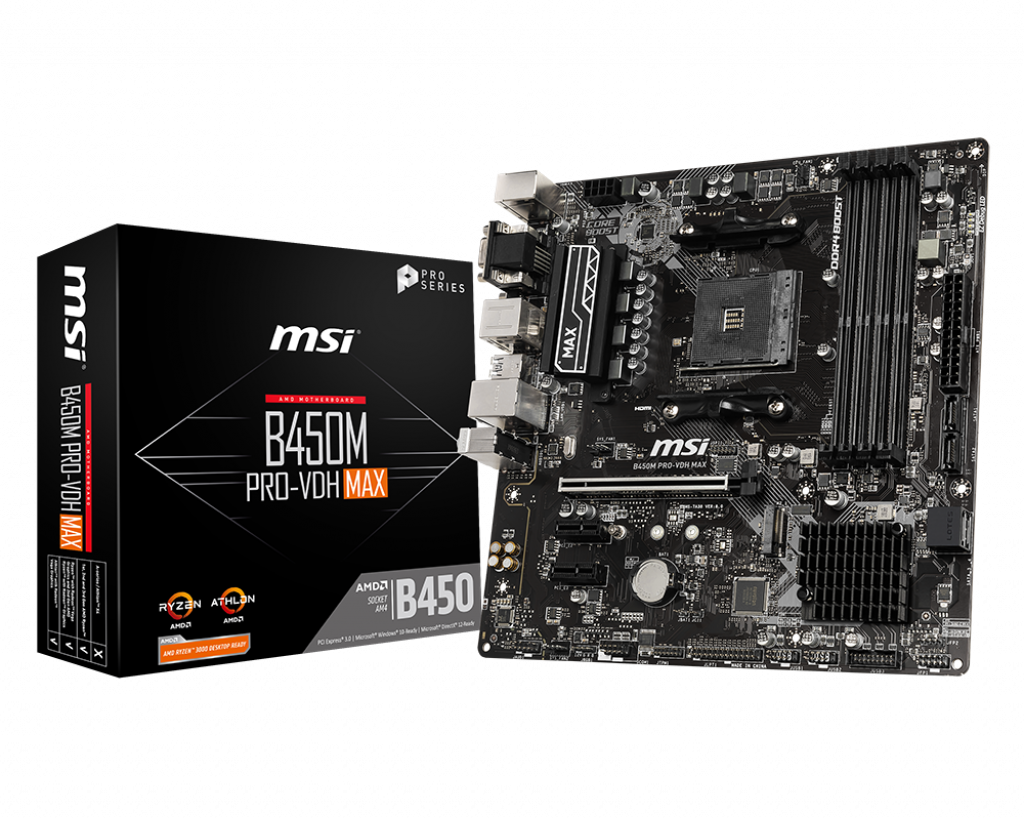

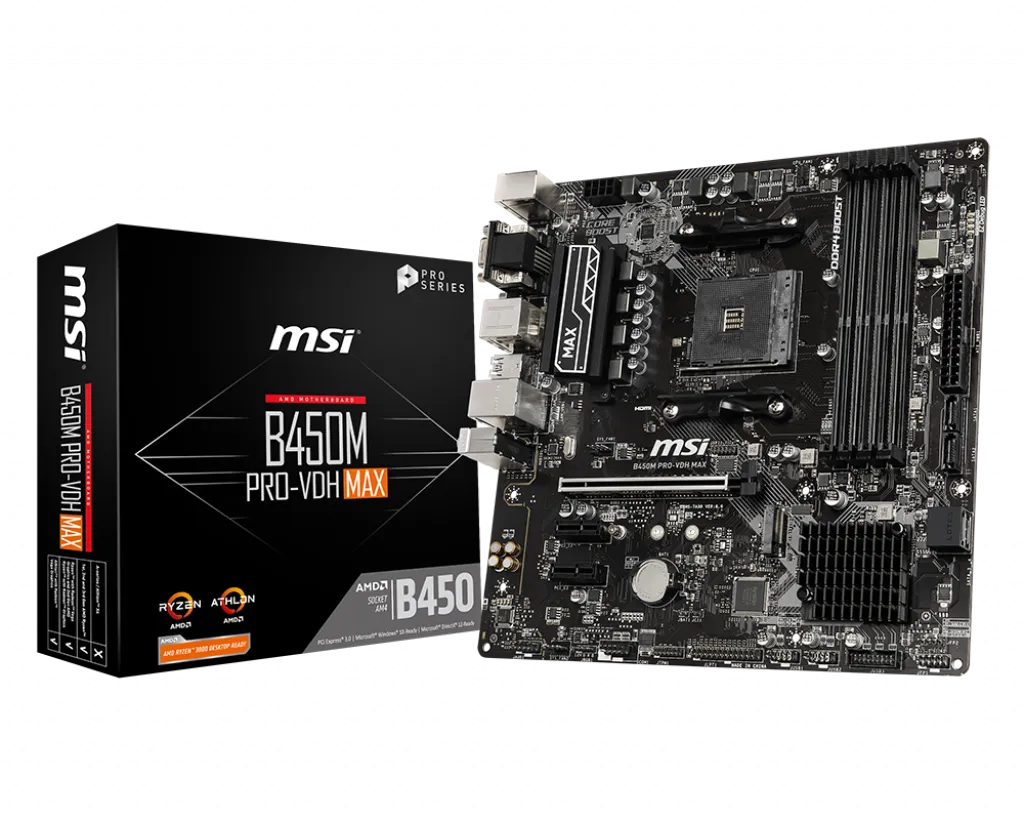

Box content

MSI^? does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
