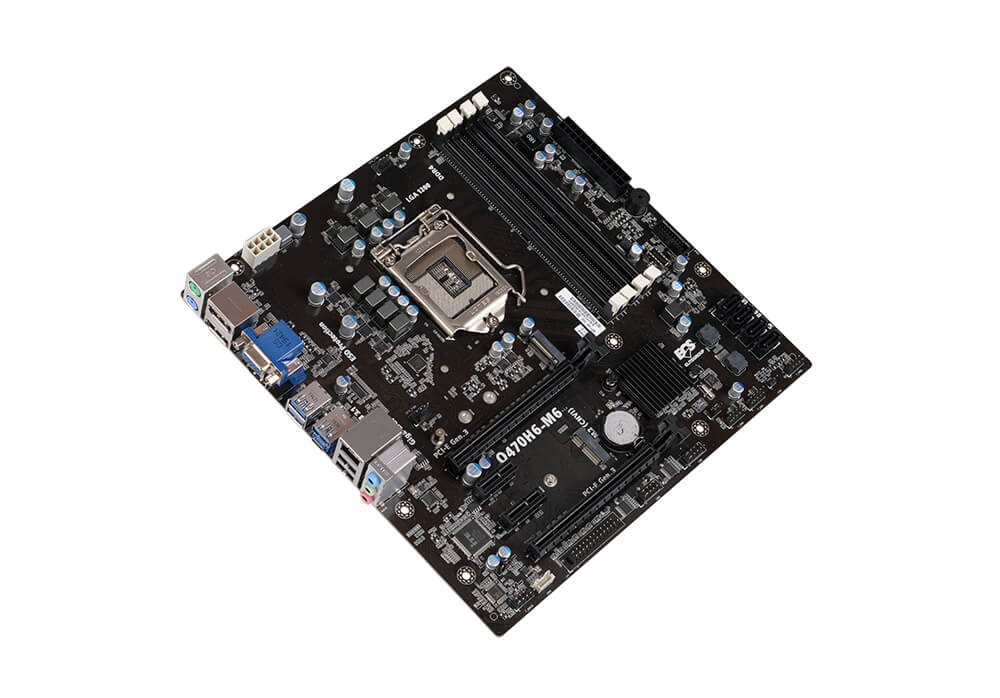

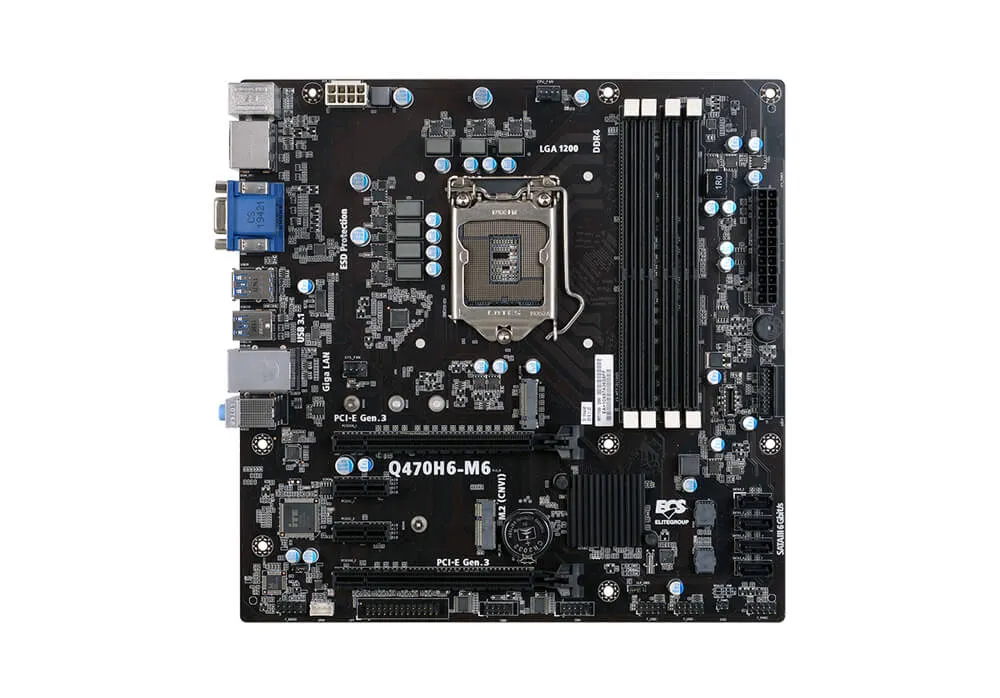

ECS Q470H6-M6 MOTHERBOARD

ECS
Compare

₹12,699 ₹20,000

FOUND THIS PRODUCT AT A LOWER PRICE?
Compare

  • Windows 10 Workable support

  • 7 Phase Power Design

  • ECS Durathon Technology ensure the stability, reliability and performance of system.

  • ESD Protection prevents computers from electrostatic discharge damage to enhance
    its durability and lifespan

  • Supports Intel® vPro™ technology

  • Supports DirectX® 12 to enhance graphical performance

  • Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function

  • Supports Display Port 1.2 Technology

  • Supports Intel® Optane™ technology

SKU: Q470H6-M6 Categories: , Tags: , ,
Weight 2 kg
Brand

ECS
  • CPU
    Supports 10th Gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1200 socket
    7 Phase Thermal Design Power
    100% Solid capacitor design
    Please refer to CPU support list for details
  • CHIPSET
    Intel® Q470 Express ChipsetLGAA
    Supports Intel® vPro™ Technology
  • GRAPHICS
    Supports DirectX® 12
  • MEMORY
    Dual-channel DDR4 Memory architecture
    Supports DDR4 2933/2666/2400 non-ECC, Un-buffered SDRAM Memory
    4 X 288-pin DDR4 DIMM socket
  • EXPANSION SLOT
    2 X PCI Express X16 Gen 3.0 slot(s)
    ∟ 1*x16, 1*x4
    2 X PCI Express X1 Gen 3.0 slot(s)
    1 X M.2 slot for SSD
    ∟ For 2260/2280/2242 SSD
    Supports Intel® Optane™ technology
    ∟ 2242/2260/2280 PCI-e x 4 / SATA SSD Support
    1 X M.2 slot for WiFi PCIe Gen 2
    Supports Intel® CNVi
  • STORAGE
    4 X Serial ATAIII 6Gb/s
    RAID0, RAID1,RAID5, RAID 10 configuration
  • AUDIO
    6-Channel HD audio CODEC
    Realtek ALC892+ ALC105 (Amplifier) 6-channel High Definition audio CODEC
    Realtek ALC892
    ‧Realtek ALC892 8-channel High Definition audio CODEC
    ‧Compatible with Direct Sound 3D™, A3D™, I3DL2
    ‧Smart multiple streaming operation
    ‧Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience
    ‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP
  • LAN
    Intel WGI219LM Gigabit Fast Ethernet Controller
    Wake-On-LAN
  • USB
    Support by Q470 Express Chipset
    3 X USB 3.2 Gen 2×1 port(s) up to 10Gb/s
    4 X USB 3.2 Gen 1×1 port(s) up to 5Gb/s
    —- Back Panel 2 port(s)
    —- Onboard 2 port(s)
    6 X USB2.0 port(s) Up to 480 Mb/s
    —- Back Panel 2 port(s)
    —- Onboard 4 port(s)

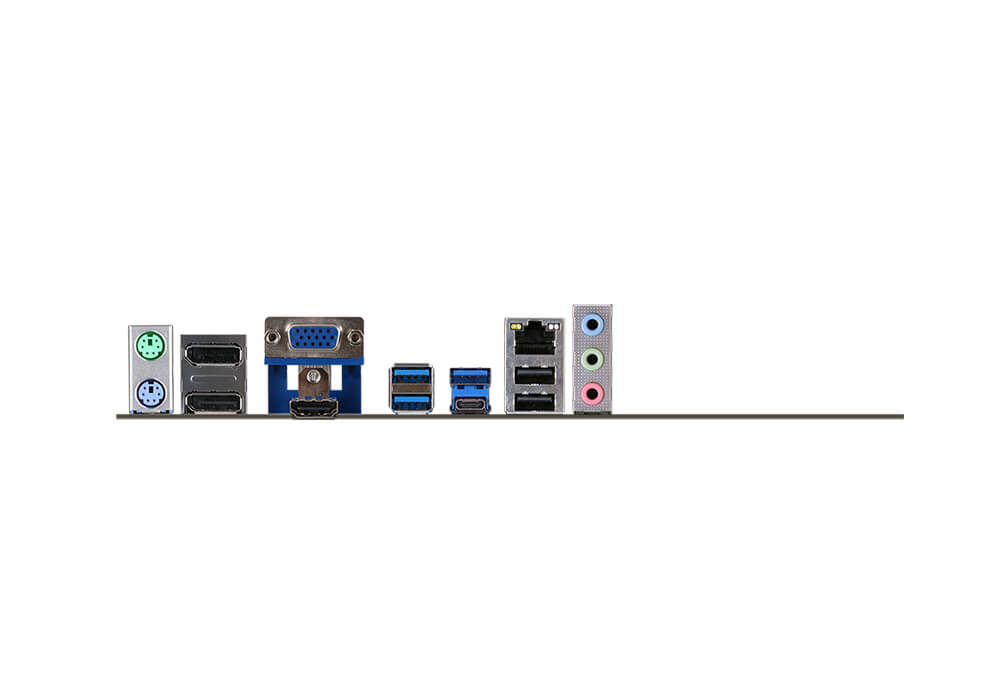

  • REAR PANEL I/O
    1 X PS/2 Keyboard & PS/2 mouse connectors
    1 X Audio port (Line Out/Line In/Mic In)
    1 X RJ-45 port
    1 X HDMI port(s)
    1 X D-Sub (VGA) port(s)
    2 X Display port
    2 X USB 3.2 Gen 2×1 Type A port(s)
    2 X USB 3.2 Gen 1×1 Type A port(s)
    2 X USB2.0 port(s)
  • CONNECTORS & HEADERS
    1 X 24-pin ATX Power Supply connector
    1 X 8-pin ATX 12V Power Connector
    1 X 4-pin CPU_FAN connector with smart fan
    1 X 4-pin SYS_FAN connector with smart fan
    1 X Front Panel switch/LED header
    1 X Front panel audio header
    1 X Speaker header
    1 X Onboard Buzzer
    1 X USB 3.2 Gen 2×1 header
    ∟ Support additional 1 USB ports
    1 X USB 3.2 Gen 1×1 header
    ∟ Support additional 2 USB ports
    2 X USB 2.0 header
    ∟ Support additional 4 USB ports
    4 X SATA III 6Gb/s connector(s)
    1 X CLR_CMOS header
    2 X Serial port header (COM)
    1 X Parallel port header (LPT)
    1 X Onboard TPM 2.0
  • SYSTEM BIOS
    AMI BIOS with 128+64 MB SPI Flash ROM
    ACPI & DMI
    F7 hot key for boot up devices option
    Dual Display
    Triple Display
    Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
    Multi-Language BIOS
    Audio, LAN, can be disabled in BIOS
    Supports PgUp clear CMOS Hotkey
  • FORM FACTOR
    mATX Form Factor
    244*244
  • OS SUPPORT
    Windows 10 64-bit
  • CERTIFICATIONS
    CE/FCC Certification
