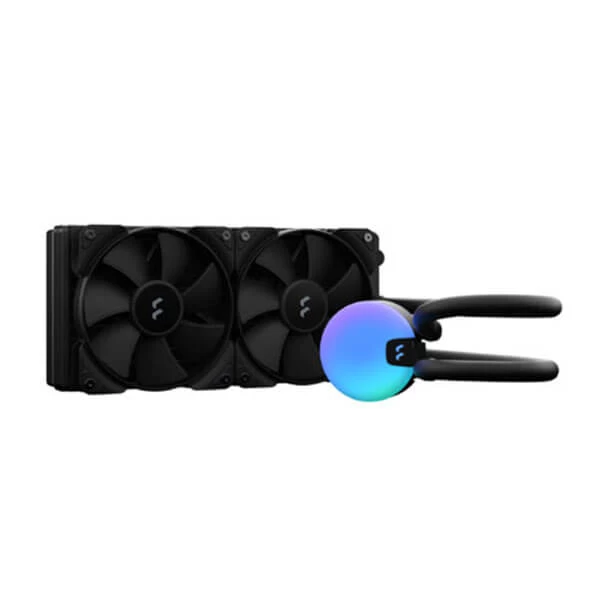

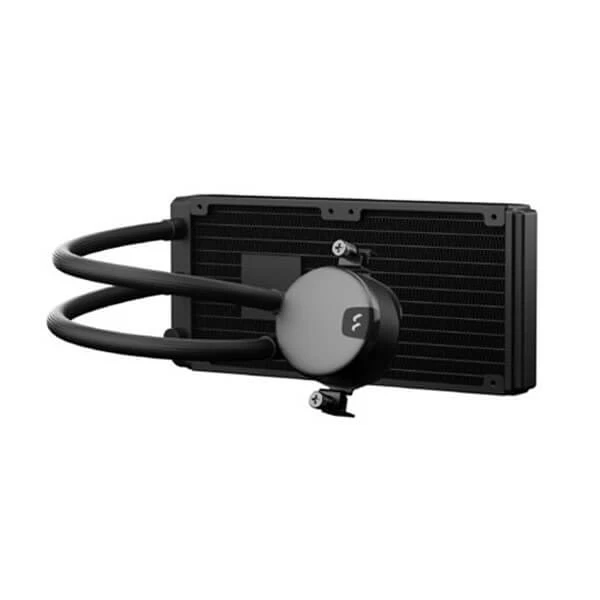

Fractal Design Lumen S24 240mm CPU Liquid Cooler

Fractal Design

12,517 15,000

FOUND THIS PRODUCT AT A LOWER PRICE?
Compare

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

• Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
• Six ARGB LEDs are yours to command via your motherboard or controller
• The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
• Compatible with LGA 1700

The right way up

  • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
  • Low-permeability rubber tubes with braided nylon sleeves

From subtle to stunning

  • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
  • Six ARGB LEDs are yours to command via your motherboard or controller

Forget the thermal paste

  • Thermal paste is pre-applied to ensure a proper and pain-free installation
  • Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing

Common denominators

  • Compatible with LGA 1700
  • Supports the most common sockets for both Intel and AMD
SKU: FD-W-L1-S2411 Categories: , Tags: , , ,
Weight 2 kg
Brand

Fractal Design

Cpu Cooler

Warranty

5 Years

Model FD-W-L1-S2401
Color Black
Sockets supported (Intel) LGA 1700/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
Sockets supported (AMD) AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
Cold plate material Copper
Thermal paste Pre-applied
Tube length 400mm
Tube material Low-permeability rubber with braided nylon sleeve
Fittings, block side Articulating 90-degree Elbow
Fittings, radiator side Barbed fitting
Block height 43mm
Block measurements (with fittings) 79 x 67 mm
Block diameter (main block body) 67 mm
Fan specifications
Fan type Aspect 12 PWM
Rotational speed 500–2000 RPM
Fan bearing Rifle bearings
Fan PWM control Yes
Fan acoustical noise <10–33.2 dBA
Fan maximum air flow 13-56 CFM
Fan maximum static pressure 0.230–2.34 mm H2O
Fan input voltage 12V
Fan maximum input current 0.37A
Fan MTTF 90,000 hours
Pump specifications
Rotational speed 4000 ± 10% RPM
Bearing type Ceramic
PWM control No
Acoustical noise (full speed) 22 dBA
Maximum pressure 1.8 mm H2O/ 17.6 kPa / 2.5 PSI
Input voltage 12V DC
Input current (without fans) 0.34 A
MTTF 50 000 hours
Radiator specifications
Radiator dimensions 272 x 120 x 27 mm
Radiator housing material Aluminum
Radiator fin material Aluminum
Radiator fan screw threads 6-32
Other

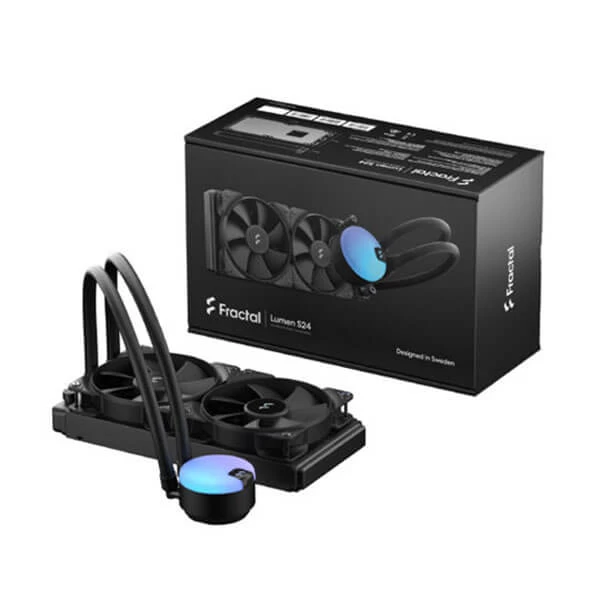

Package contents CPU Cooler Assembly, 2x Aspect 12 PWM fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable
Package dimensions 332 x 205 x 137 mm
