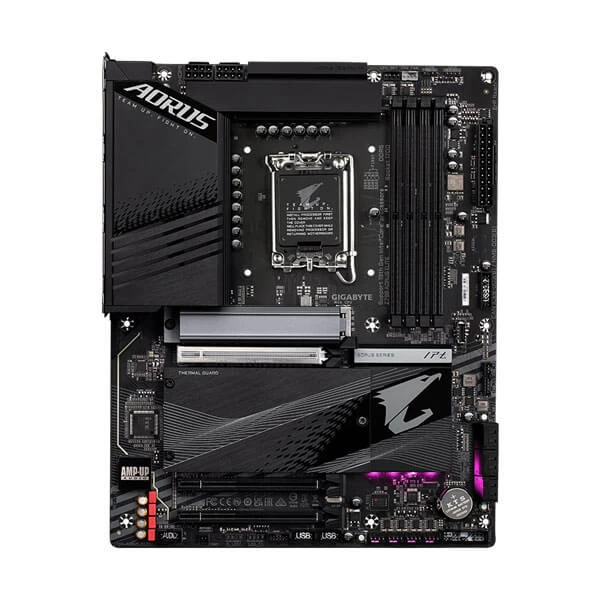

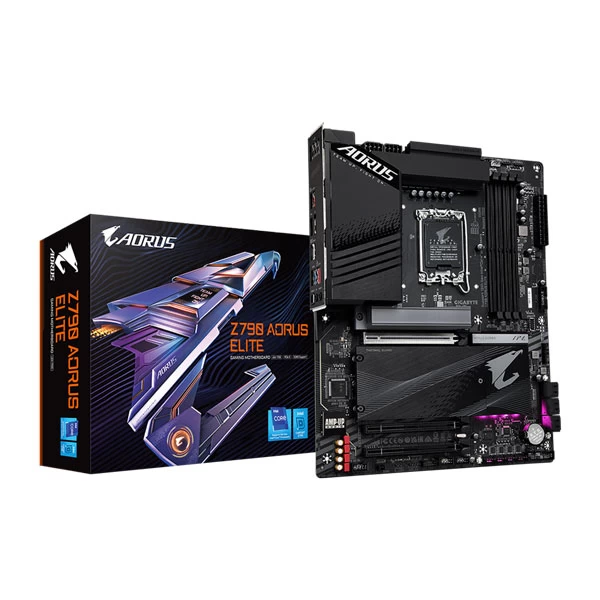

Gigabyte Z790 Aorus Elite DDR5 Motherboard

Gigabyte Z790 Aorus Elite DDR5 Gaming Motherboard can supports 14th, 13th, and 12th Gen Intel® Core with memory capacity of 192 GB and speed of 7600 MHz. Comes with advanced thermal design, heat pipe and multiple temperature sensors for better performance.

Features:

• Supports Intel® Core 14th/ 13th /12th processors
• Unparalleled Performance?Twin 16*+2+? Phases Digital VRM Solution
• Dual Channel DDR54*SMD DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage?4*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard III:?To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch Plus?PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Fast Networks?2.5GbE LAN

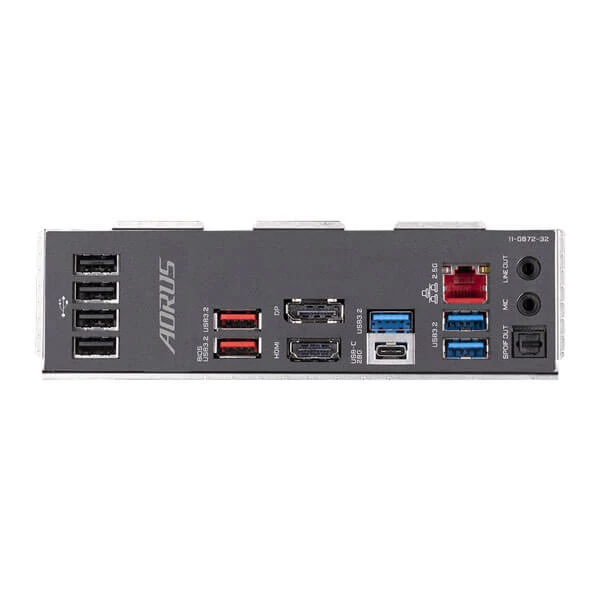

• Extended Connectivity?DP, HDMI, Front USB-C 10Gb/s, Rear USB-C 20Gb/s
• Smart Fan 6Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card

*8+8 phases parallel power design   Twin Digital VRM Design: To ensure maximum Turbo Boost and overclocking performance of Intel®'s new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components. Design Ready for PCIe 5.0: PCIe 5.0 Design supports double the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge GPUs released in the next few years to their full capability. DDR5 Overclocking Up to 7600 and Beyond: AORUS is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard. Gigabyte PerfDrive: PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core processors. Thermal Design:

• Fully Covered Thermal Design
• 6mm Heatpipe
• 7.5 W/mK Thermal Pad
• 6-Layer & 2X Copper PCB
• M.2 Thermal Guard III
• Enlarged Thermal Guard

  Fully Covered MOSFET Heatsink: 4X Large Surface Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs. Real One-piece Build: TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors? multi-piece design. Multi-Cut Design: TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance. M.2 Thermal Guard III: The M.2 Thermal Guard III constructed with 9X optimized heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of PCIe 5.0 M.2 SSDs may cause, especially under heavy workload.The special design of heatsink grooves in the direction of CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency. SMART FAN 6: Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. Cooling Features:

• High Current Support:?Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control:?Multiple temperature/fan speed control points for precise fan curve
• Dual Curve Mode:?Slope/Stair dual mode for different user scenario
• Fan Stop:?Fan can stop completely below users' specified temperature point
