Gigabyte Z890 Gaming X WiFi7 LGA1851 ATX Motherboardbrand Gigabyte motherboard-cpu-support Intel LGA1851 motherboard-size CEB motherboard-max-memory 256GB motherboard-memory-support
Gigabyte
MOTHERBOARD, INTEL SOCKET
SKU: Z890 GAMING X WIFI7
₹26275₹4800045% OFF
In Stock
Quantity:
Secure Payment
Fast Shipping
Warranty
| CPU | LGA1851 socket: Support for Intel® Core? Ultra Processors L3 cache varies with CPU |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: ? 1 x USB4 USB Type-C? port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 38402160@144 Hz * Support for DisplayPort 2.1 version ? 1 x DisplayPort, supporting a maximum resolution of 38402160@144 Hz * Support for DisplayPort 2.1 version ? 1 x front HDMI port, supporting a maximum resolution of 19201080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time |
| Audio | Realtek? Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Realtek? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) ? 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands ? BLUETOOTH 5.4 ? Support for 11be 160MHz wireless standard Realtek? Wi-Fi 7 RTL8922AE (PCB rev. 1.1) ? 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands ? BLUETOOTH 5.4 ? Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows® 11 SV3 to function properly. (There is no support driver for Windows® 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country?s regulations. |
| Expansion Slots | CPU: ? 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: ? 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) |
| Storage Interface | CPU: ? 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) ? 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: ? 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) ? 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) ? 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | CPU: ? 1 x USB4 USB Type-C? port on the back panel Chipset: ? 1 x USB Type-C? port with USB 3.2 Gen 2 support, available through the internal USB header ? 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel ? 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: ? 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C? header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt? add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

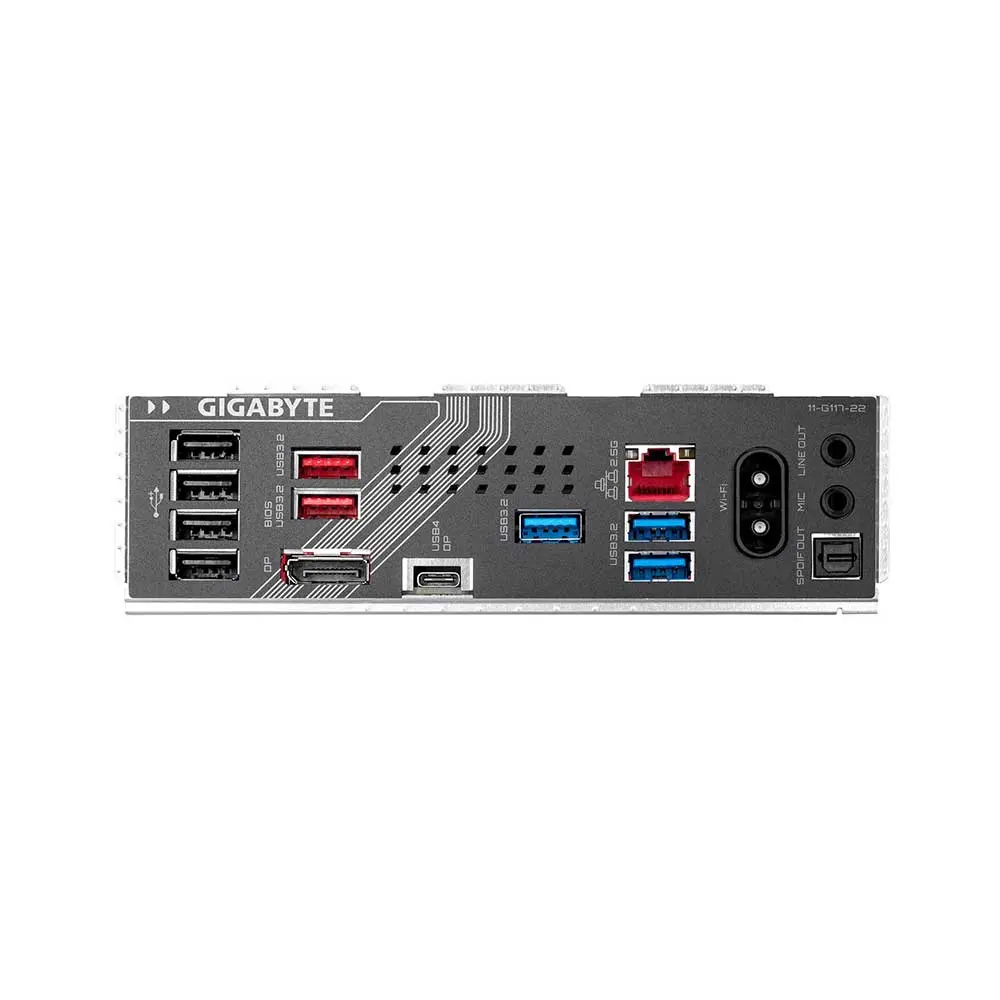

| Back Panel Connectors | 1 x USB4 USB Type-C? port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks (Note) Actual support may vary by CPU. |
| I/O Controller | iTE? I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection ater cooling flow rate detection Fan fail warning Fan speed control |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundle Software | Norton? Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows® 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
