Product Collection	10th Generation Intel® Core™ i3 Processors
Code Name	Products formerly Comet Lake
Vertical Segment	Desktop
Processor Number	i3-10105
Lithography	14 nm
Use Conditions	PC/Client/Tablet
CPU Specifications
Total Cores	4
Total Threads	8
Max Turbo Frequency	4.40 GHz
Intel® Turbo Boost Technology 2.0 Frequency	4.40 GHz
Processor Base Frequency	3.70 GHz
Cache	6 MB Intel® Smart Cache
Bus Speed	8 GT/s
TDP	65 W
Memory Specifications
Max Memory Size (dependent on memory type)	128 GB
Memory Types	DDR4-2666
Max # of Memory Channels	2
Max Memory Bandwidth	41.6 GB/s
ECC Memory Supported	No
Processor Graphics
Processor Graphics	Intel® UHD Graphics 630
Graphics Base Frequency	350 MHz
Graphics Max Dynamic Frequency	1.10 GHz
Graphics Video Max Memory	64 GB
4K Support	Yes, at 60Hz
Max Resolution (HDMI)	4096 x 2160@30Hz
Max Resolution (DP)‡	4096 x 2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡	4096 x 2304@60Hz
DirectX* Support	12
OpenGL* Support	4.5
Intel® Quick Sync Video	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Clear Video HD Technology	Yes
Intel® Clear Video Technology	Yes
# of Displays Supported ‡	3
Device ID	0x9BC8
Expansion Options
Scalability	1S Only
PCI Express Revision	3.0
PCI Express Configurations	Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes	16
Package Specifications
Sockets Supported	FCLGA1200
Max CPU Configuration	1
Thermal Solution Specification	PCG 2015C
TJUNCTION	100°C
Package Size	37.5mm x 37.5mm
Advanced Technologies
Intel® Optane™ Memory Supported	Yes
Intel® Thermal Velocity Boost	No
Intel® Turbo Boost Max Technology 3.0	No
Intel® Turbo Boost Technology	2.0
Intel® vPro® Platform Eligibility	No
Intel® Hyper-Threading Technology	Yes
Intel® Virtualization Technology (VT-x)	Yes
Intel® Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® VT-x with Extended Page Tables (EPT)	Yes
Intel® Transactional Synchronization Extensions	No
Intel® 64	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States	Yes
Enhanced Intel® SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® Identity Protection Technology	Yes
Intel® Stable IT Platform Program (SIPP)	No
Security & Reliability
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® Software Guard Extensions (Intel® SGX)	Yes with Intel® ME
Intel® OS Guard	Yes
Intel® Trusted Execution Technology	No
Execute Disable Bit	Yes
Intel® Boot Guard	Yes

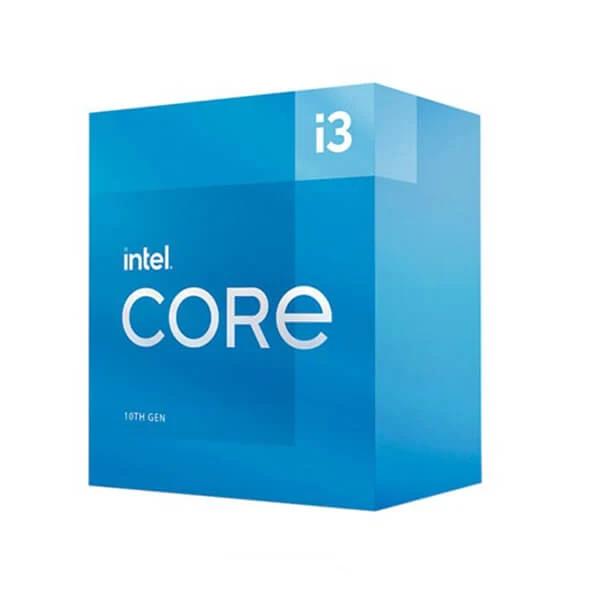

Intel® Core I3-10105 Desktop Processor
