Model	i5-14400
Product Collection	Intel® Core™ i5 Processors (14th gen)
Code Name	Products formerly Raptor Lake
Vertical Segment	Desktop
Lithography	Intel® 7
Use Conditions	PC/Client/Tablet
CPU Specifications
Total Cores	10
# of Performance-cores	6
# of Efficient-cores	4
Total Threads	16
Max Turbo Frequency	4.7 GHz
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core Base Frequency	2.5 GHz
Efficient-core Base Frequency	1.8 GHz
Cache	20 MB Intel® Smart Cache
Total L2 Cache	9.5 MB
Processor Base Power	65 W
Maximum Turbo Power	148 W
Memory Specifications
Max Memory Size (dependent on memory type)	192 GB
Memory Types	Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels	2
Max Memory Bandwidth	76.8 GB/s
GPU Specifications
GPU Name‡	Intel® UHD Graphics 730
Graphics Max Dynamic Frequency	1.55 GHz
Graphics Output	eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units	24
Max Resolution (HDMI)‡	4096 x 2160 @ 60Hz
Max Resolution (DP)‡	7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡	5120 x 3200 @ 120Hz
DirectX* Support	12
OpenGL* Support	4.5
OpenCL* Support	3.0
Multi-Format Codec Engines	1
Intel® Quick Sync Video	Yes
Intel® Clear Video HD Technology	Yes
# of Displays Supported ‡	4
Device ID	0x4682/0xA782
Expansion Options
Direct Media Interface (DMI) Revision	4.0
Max # of DMI Lanes	8
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations ‡	Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes	20
Package Specifications
Sockets Supported	FCLGA1700
Max CPU Configuration	1
Thermal Solution Specification	PCG 2020C
TJUNCTION	100°C
Package Size	45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator	3.0
Intel® Thread Director	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology ‡	2.0
Intel® Hyper-Threading Technology ‡	Yes
Intel® 64 ‡	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States	Yes
Enhanced Intel® SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® Volume Management Device (VMD)	Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡	Yes
Intel® Control-Flow Enforcement Technology	Yes
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® OS Guard	Yes
Execute Disable Bit ‡	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Virtualization Technology (VT-x) ‡	Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ^‡	Yes
Intel® VT-x with Extended Page Tables (EPT) ‡	Yes

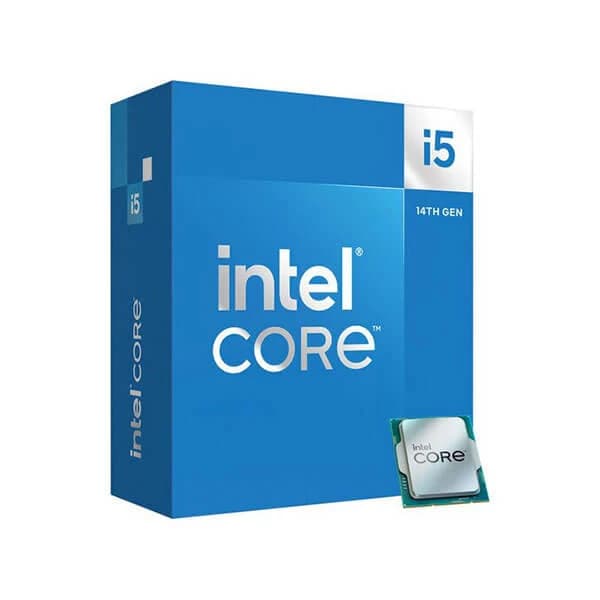

Intel® Core I5-14400 Processor

Intel® Core i5-14400 Desktop Processor features integrated Intel® UHD 730 Graphics, with 20MB of cache and a 5 GHz Turbo Boost frequency, this processor is made to handle a variety of workloads
