Essentials
Product Collection	12th Generation Intel® Core™ i9 Processors
Code Name	Products formerly Alder Lake
Vertical Segment	Desktop
Processor Number	i9-12900F
CPU Specifications
Total Cores	8
of Efficient-cores	8
Total Threads	24
Max Turbo Frequency	5.10 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency	5.10 GHz
Performance-core Max Turbo Frequency	5.00 GHz
Efficient-core Max Turbo Frequency	3.80 GHz
Performance-core Base Frequency	2.40 GHz
Efficient-core Base Frequency	1.80 GHz
Cache	30 MB Intel® Smart Cache
Total L2 Cache	14 MB
Processor Base Power	65 W
Maximum Turbo Power	202 W
Supplemental Information
Embedded Options Available	Embedded Options Available
Memory Specifications
Max Memory Size (dependent on memory type	128 GB
Memory Types	Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max of Memory Channels	2
Max Memory Bandwidth	76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision	4.0
Max of DMI Lanes	8
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations	Up to 1x16+4, 2x8+4
Max of PCI Express Lanes	20
Package Specifications
Sockets Supported	FCLGA1700
Max CPU Configuration	1
Thermal Solution Specification	PCG 2020C
TJUNCTION	100°C
Advanced Technologies
Intel® Gaussian & Neural Accelerator	3.0
Intel® Thread Director	Yes
Intel® Deep Learning Boost (Intel® DL Boost)	Yes
Intel® Optane™ Memory Supported	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Max Technology 3.0	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper-Threading Technology	Yes
Intel® 64	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States	Yes
Enhanced Intel® SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® Volume Management Device (VMD	Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡	Yes
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® OS Guard	Yes
Execute Disable Bit ‡	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Control-Flow Enforcement Technology	Yes
Intel® Virtualization Technology (VT-x)	Yes;
Intel® Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® VT-x with Extended Page Tables (EPT)	Yes
Warranty	N-Years

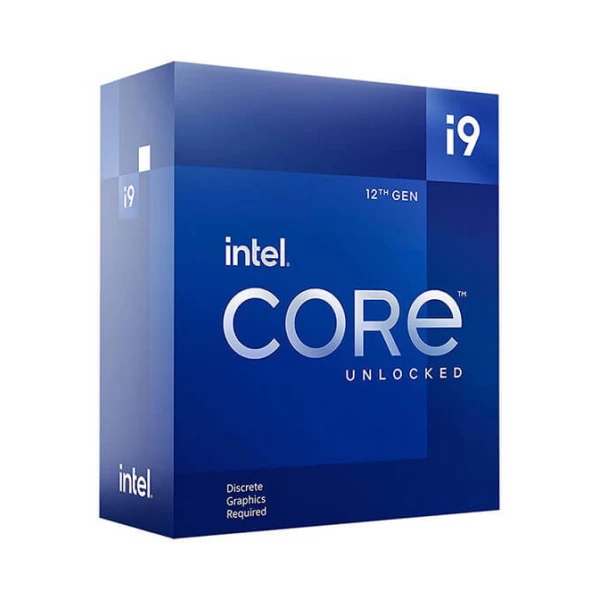

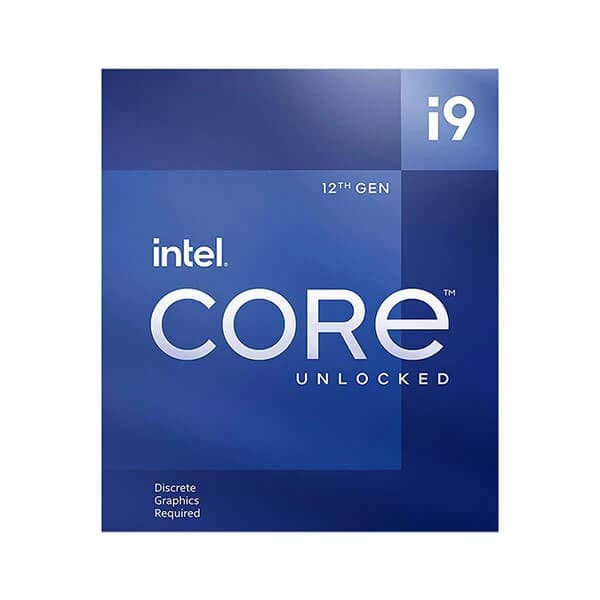

Intel® Core I9-12900F Desktop Processor
