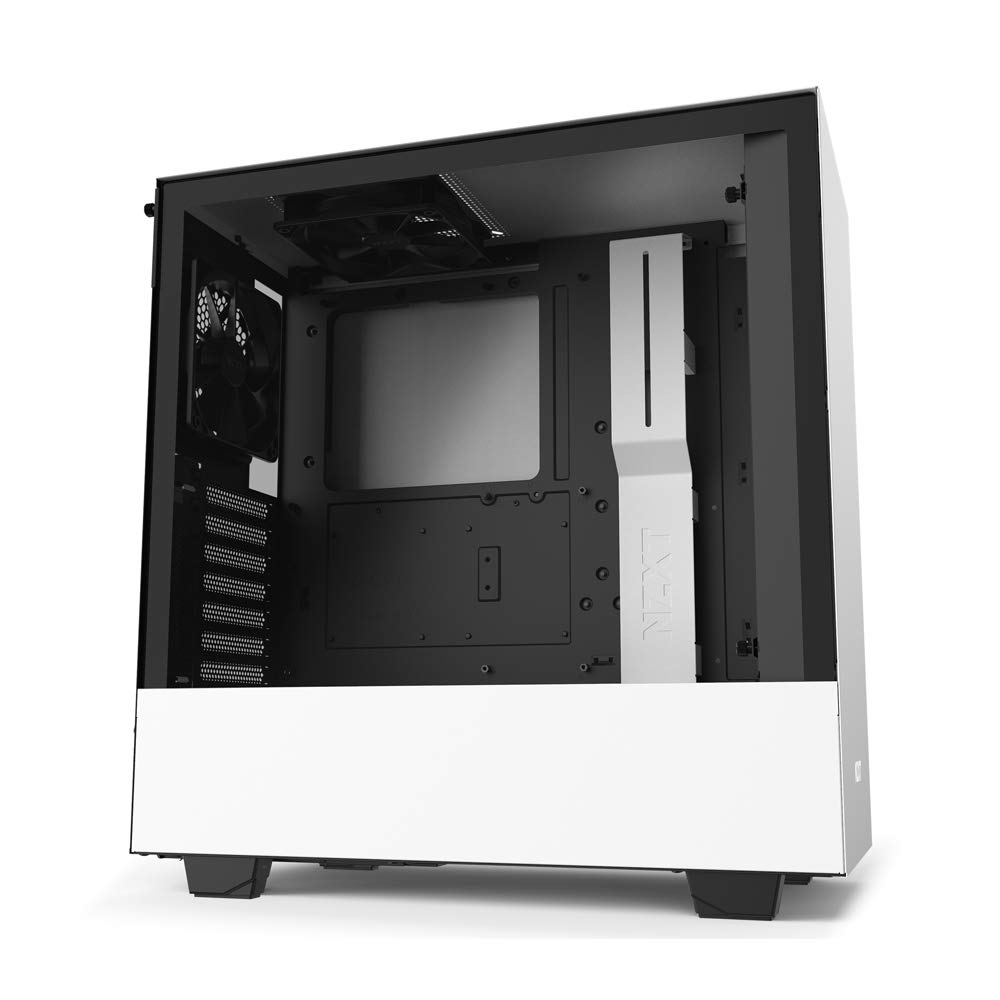

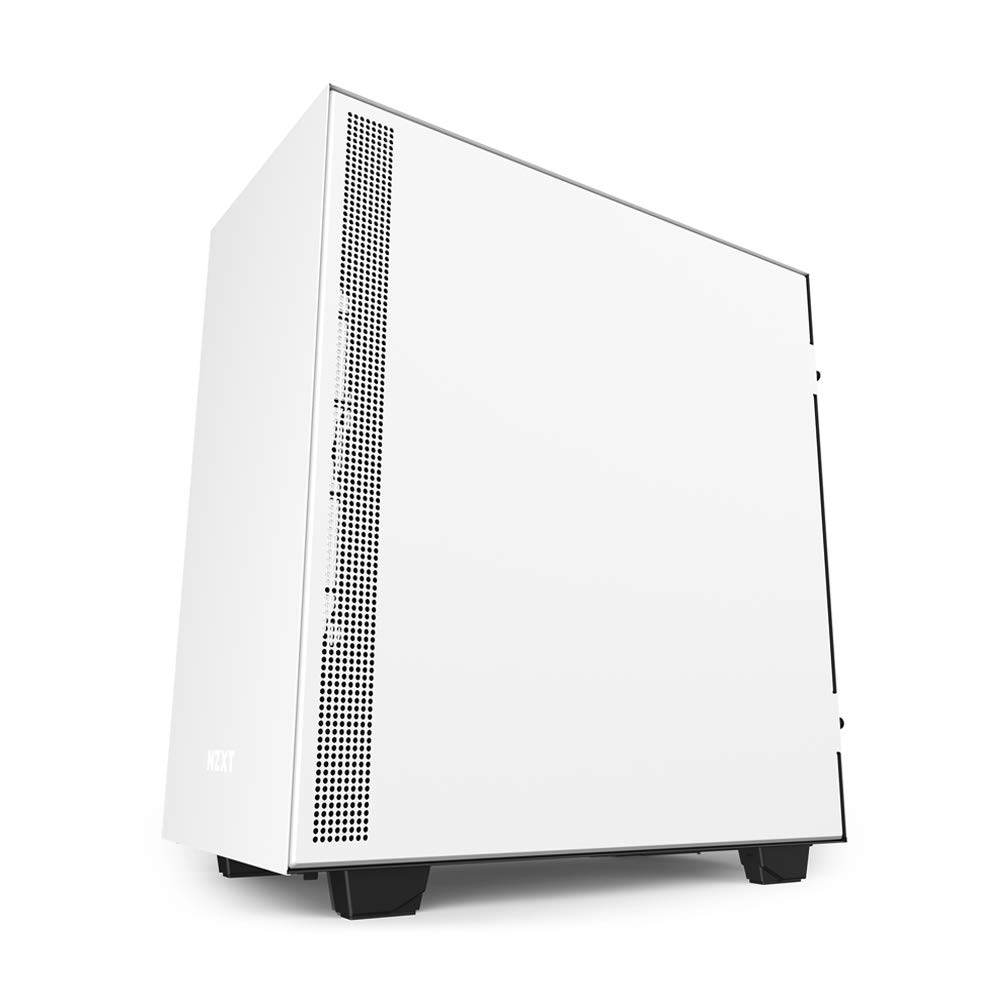

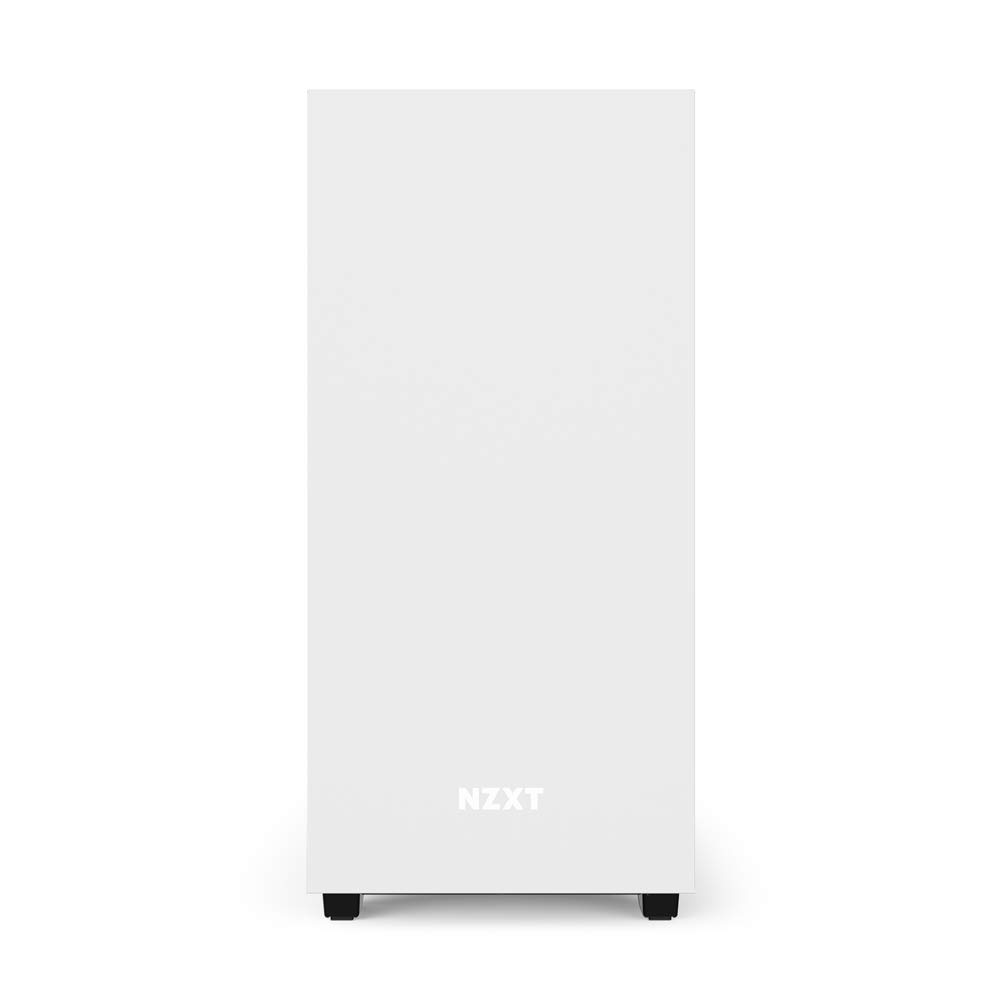

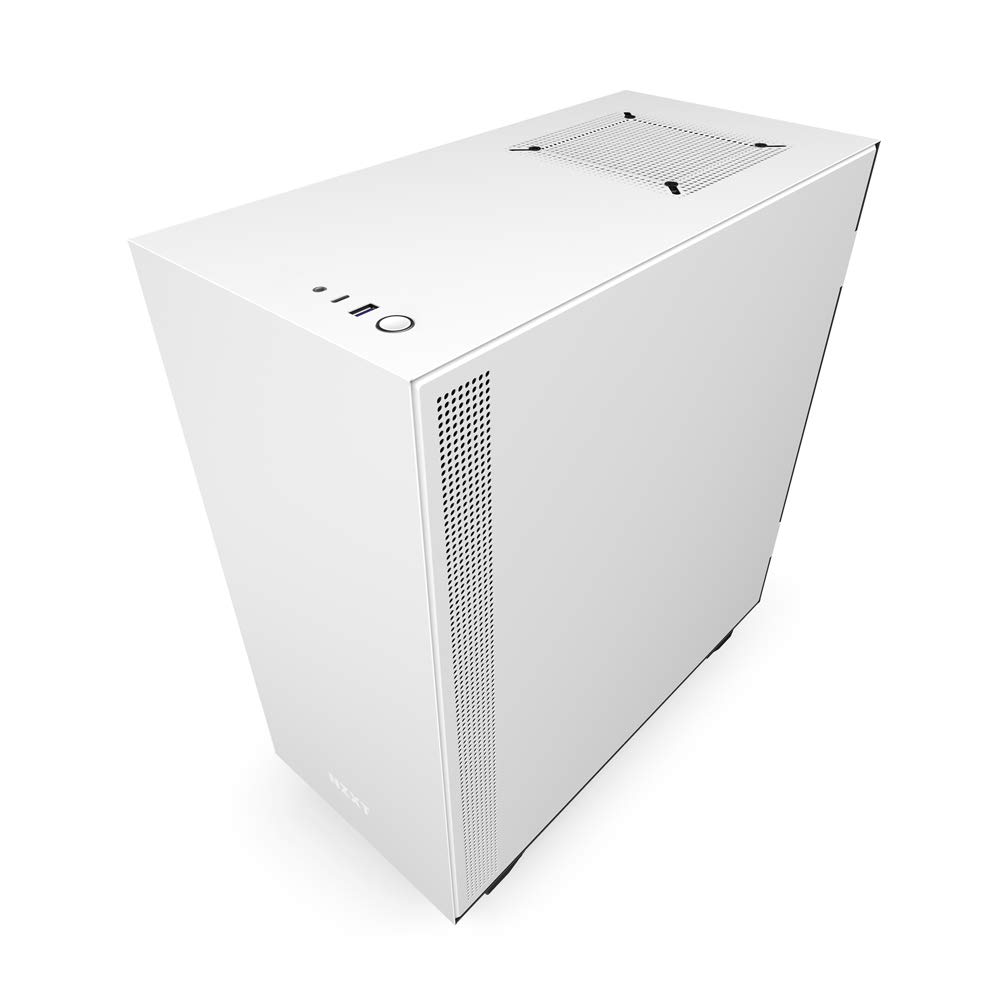

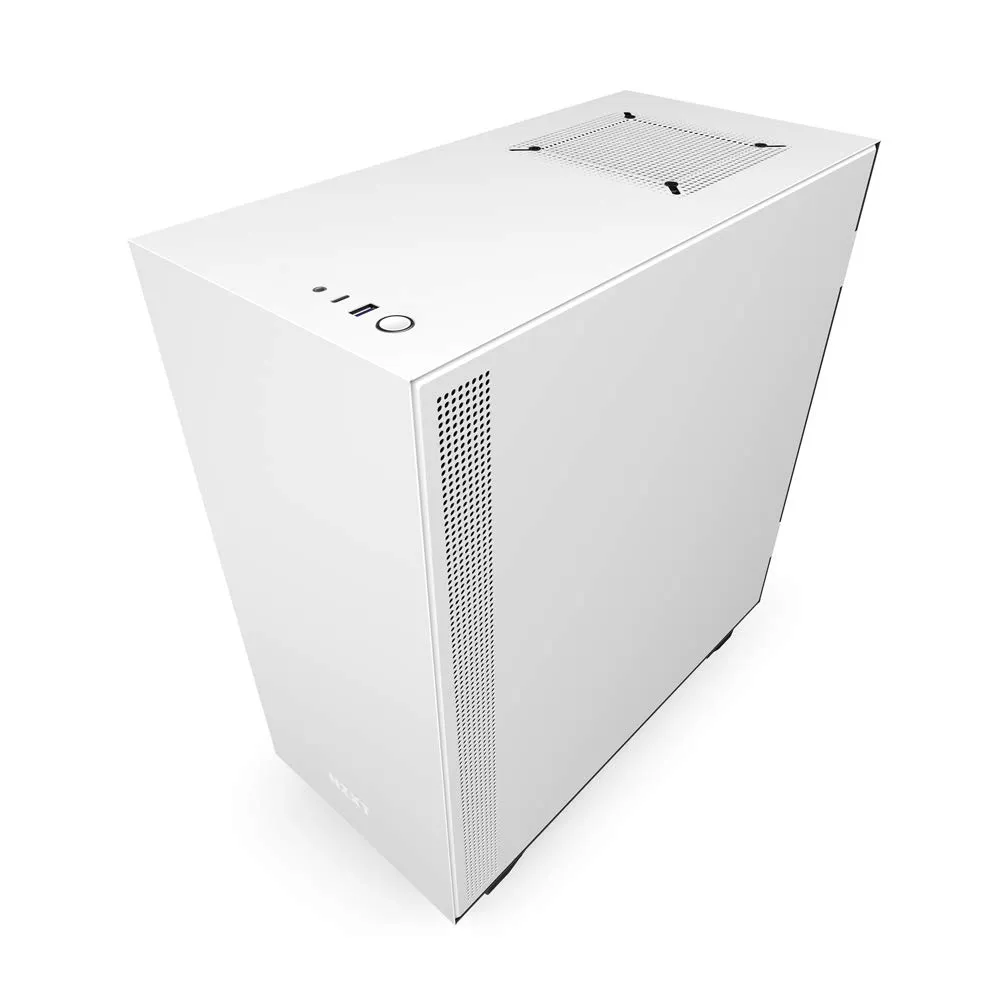

NZXT H510 COMPACT MID-TOWER WHITE/BLACK CASE

NZXT
Availability:

Out of stock


6,857 9,399

Out of stock

Compare

H510 WHITE/BLACK

Compact Mid-Tower Case with Tempered Glass
  • We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.
  • With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
  • Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
  • Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.
  • *Case version fans and specs vary from retail version

Weight 8 kg
Dimensions 41 × 22 × 46 cm
Brand

NZXT

Cabinet

Specification
Model Number CA-H510B-W1
Fan Support Front: 2 x 120/ 2 x 140mm Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) Rear: 1x 120mm (1 Aer F120 Case Version included) Fan Specs = Aer F120 (Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing
Radiator Support Front: 2x 140 or 2x 120mm with Pull Rear: 1x 120mm
Clearances Cable Management: 19-23mm GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
Front Ports 1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset audio Jack, Front I/O internal header = 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x HD Audio Header
Material SGCC Steel, Tempered Glass
Drive Bays 2.5”: 2+1 3.5”: 2+1
Dimensions W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet)
Filters All Air Intakes
Expansion Slots 7
Weight 6.6 kg
Warranty 2 Years
Note* Price, feature and specifications are subject to change without notice.
