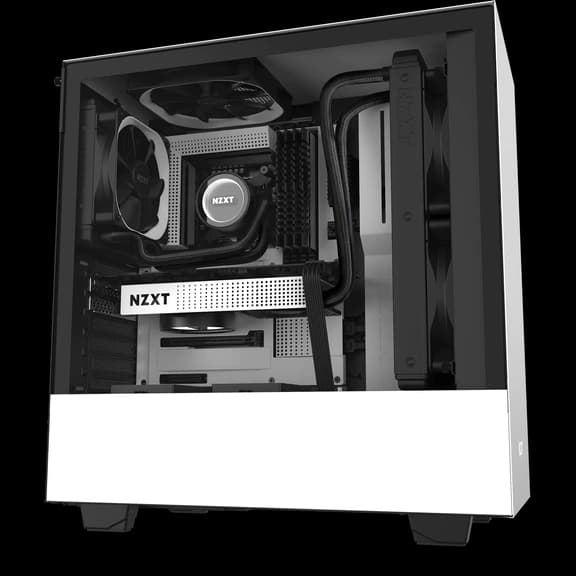

Nzxt H510 Flow Mid Tower WHITE BLACK Cabinet Case

100% Genuine
NZXT
Availability:

Out of stock


6,505 10,499

Out of stock

Hassle Free Returns

Please read return policy

Fast Shipping

All orders are shipped in 1-3 business days.

Secure Checkout

SSL Enabled Secure Checkout

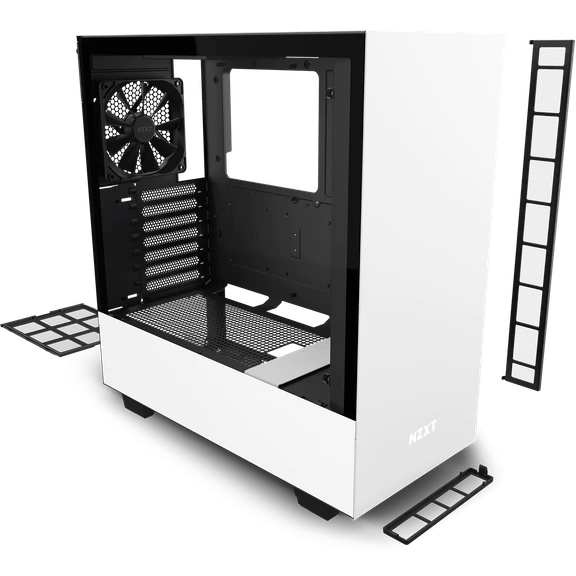

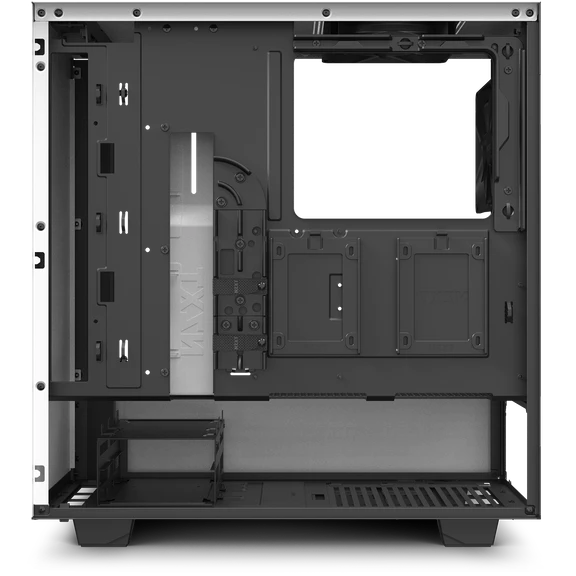

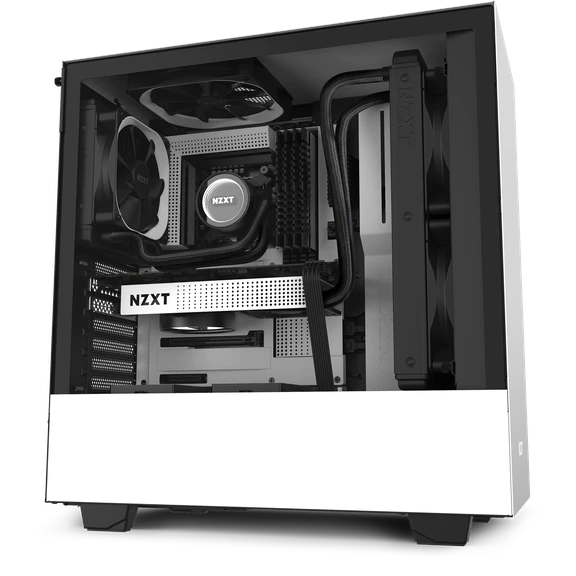

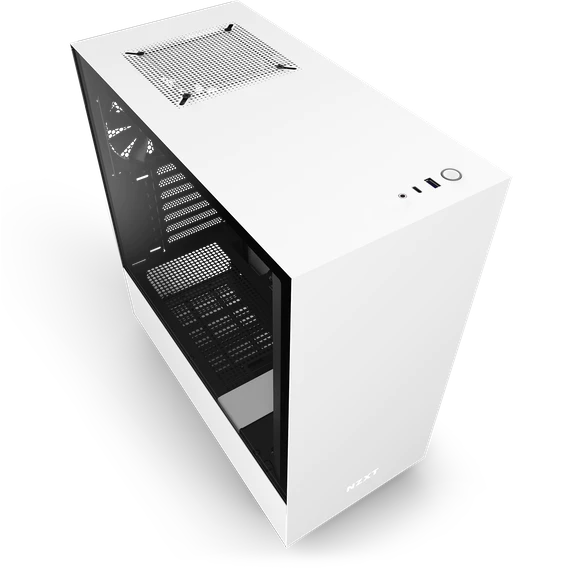

H510 Flow

This compact mid-tower is an ideal case for high-performance builds and features a perforated front panel for maximized airflow. The H510 is easy to build in and offers flexibility for a variety of ATX parts.



  • An optimized perforated top panel delivers increased airflow to your system for improved temperatures
  • Iconic cable management bar and uninterrupted tempered-glass side panel
  • Cable routing kit with pre-installed channels and straps
  • Two Aer F120mm fans and removable filters on all air intakes
  • Removable bracket designed for radiators up to 280mm
Weight 8 kg
Dimensions 42 × 21 × 46 cm
Brand

NZXT

Cabinet

color

Tech Specs

Key Specs

  • Motherboard Support

    Mini-ITX, MicroATX, ATX

  • Enclosure Type

    Compact Mid-Tower

  • Case Material

    SGCC Steel, Tempered Glass

Dimensions

  • Height

    460 mm / 18.11 inches

  • Width

    210 mm / 8.26 inches

  • Depth

    428 mm / 16.85 inches

  • Weight

    6.6 kg / 14.5 lb

Compatibility & Clearance

  • Max CPU Cooler Clearance

    165 mm

  • Max GPU Clearance

    360 mm

  • Front Fan & Radiator Clearance

    60 mm

  • Cable Management

    19 – 23 mm

Front I/O Ports

  • USB 3.2 Gen 1 Type-A

    1

  • USB 3.2 Gen 2 Type-C

    1

  • Headset Audio Jack

    1

Expansion Slots

  • Standard

    7

  • Vertical

Drive Bays

  • 2.5″

    2 + 1

  • 3.5″

    2 + 1

Fan Support

  • Front

    2 x 120mm / 2 x 140mm

  • Top

    1 x 120mm / 1 x 140mm

  • Rear

    1 x 120mm

  • Filters

    All air intake

Included Fans

  • Front

    1 x Aer F 120mm (Case Version)

  • Top

  • Rear

    1 x Aer F 120mm (Case Version)

Radiator Support

  • Front

    280mm

  • Rear

    120mm

Fan Specs

  • Model

    Aer F 120mm (Case Version)

  • Speed

    1,200 ± 200RPM

  • Airflow

    50.42 CFM

  • Noise

    28 dBA

  • Bearing

    Rifle Bearing

  • Fan Connector

    3-pin

General

  • Warranty

    2 years

White SKU

  • Model Number

    CA-H52FW-01

  • UPC

    815671019585

  • EAN

    5060301699254

Black SKU

  • Model Number

    CA-H52FB-01

  • UPC

    815671019578

  • EAN

    5060301699247
