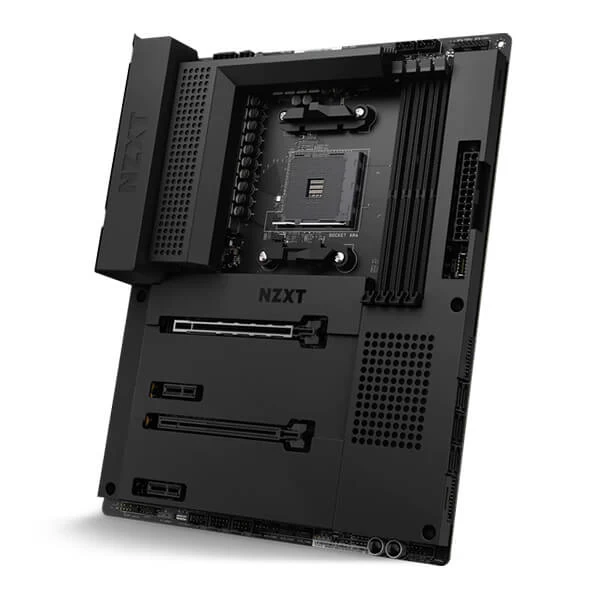

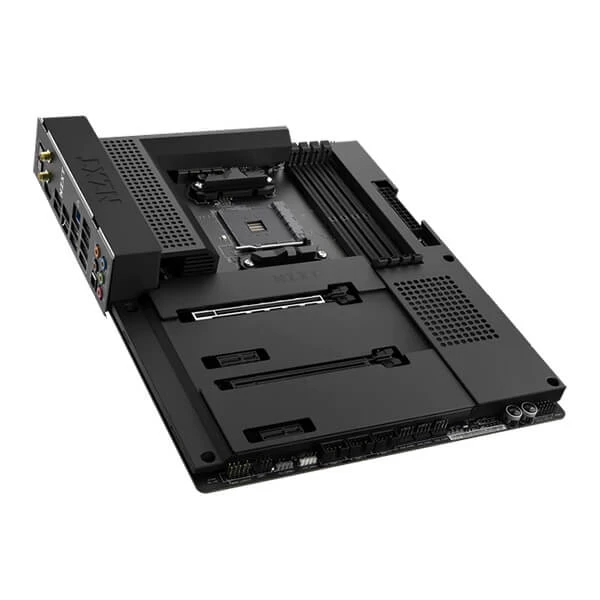

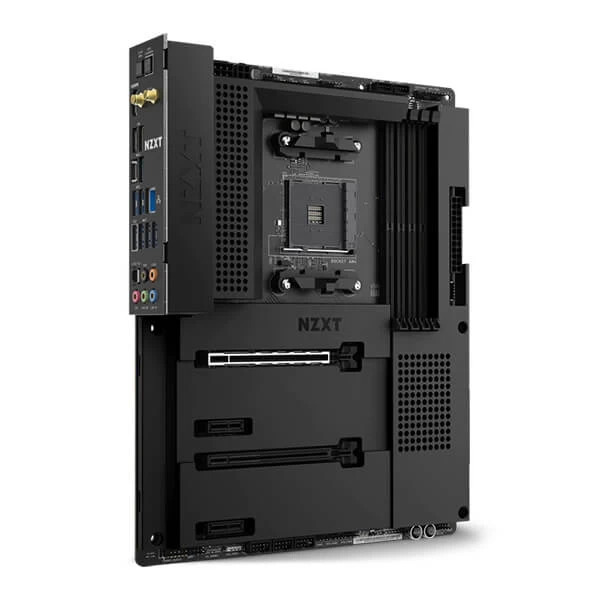

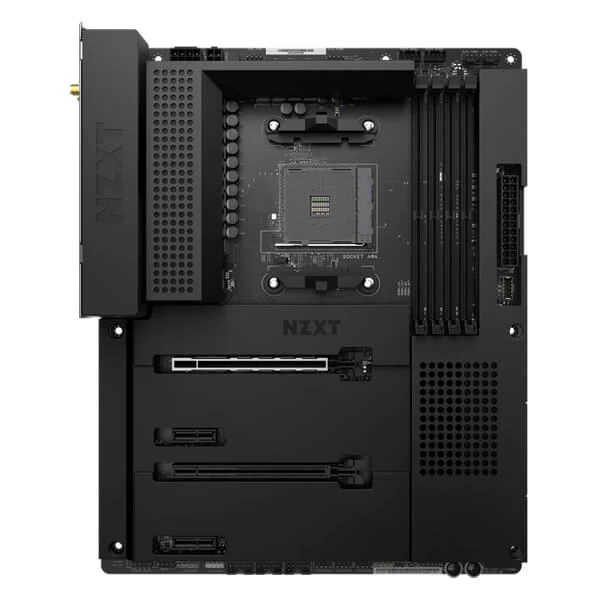

| Product Model |
N7-B55XT-B1 |
| CPU & Socket |
- AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors) – Supported
- AMD Ryzen™ 5 3400G and Ryzen™ 3200G – Not Supported
|
| Chipset |
AMD® B550 |
| Memory |
4 x DIMM, Max. 128GB, DDR4
- 4666+ MHz – OC Frequency (Vermeer CPUs)
- 4666+ MHz – OC Frequency (Matisse CPUs)
- 4733+ MHz – OC Frequency (Renoir APUs)
- 3200/2933/2667/2400/2133 – Base Frequency
- ECC & non-ECC, un-buffered memory type
- Dual-channel memory architecture
- XMP Supported
|
| Integrated Graphics |
AMD Radeon™ Vega Series Graphics in Ryzen Series APU – HDMI
- HDMI™ with max. resolution of 4096×2160@60Hz
- Maximum shared memory of 16GB with 32GB installed
- Microsoft PlayReady® Supported
|
| Multi-GPU Support |
Supports AMD 2-Way CrossFireX™ Technology |
| Storage |
- 1 x M.2 Type 2242/2260/2280 (x4 mode) – (Vermeer & Matisse – PCIe 4.0, Renoir – PCIe 3.0)
- 1 x M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode)
- 6 x SATA 6Gb/s – (M2_2 and SATA3_5_6 share lanes)
- RAID 0/1/5/10 Supported
|
| LAN |
Realtek® RTL8125BG 2.5G |
| Wireless |
- Intel® Dual-Band Wireless – AX210 Wi-Fi 6E
- 802.11 a/b/g/n/ac/ax Protocol
- 2.4 / 5 / 6GHz Frequency Bands
- Supports MU-MIMO
|
| Bluetooth |
Bluetooth V5.2 |
| Audio |
- Realtek® ALC1220 Codec
- 8-Channel High Definition Audio, 32-bit / 192KHz DAC
- Nichicon Fine Gold Series Audio Capacitors
|
| Rear I/O |
- 1 x USB 3.2 Gen 2 Type-C
- 3 x USB 3.2 Gen 2 Type-A
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0 ports
- 1 x HDMI 2.1
- 2 x Wireless Antenna (2T2R)
- 1 x LAN (RJ45) Port
- 1 x 5.1-Channel Audio Jacks
- 1 x Optical S/PDIF
- 1 x BIOS Flashback Button
- 1 x Clear CMOS Button
|
| Expansion Slots |
- 1 x PCIe x16 (x16 mode) – (Vermeer & Matisse – PCIe 4.0, Renoir – PCIe 3.0)
- 1 x PCIe x16 (x4 mode)
- 2 x PCIe 3.0 x1
|
| Internal I/O |
- 1 x 24-pin EATX power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin CPU_FAN connector
- 1 x 4-pin AIO_PUMP connector (Up to 24W)
- 5 x 4-pin SYS_FAN connectors (Up to 24W)
- 1 x CPU_FAN Connector (Up to 24W)
- 2 x NZXT RGB LED connectors
- 1 x 5V Addressable RGB connector
- 1 x 12V RGB connector
- 1 x M.2 (M Key), Type 2242/2260/2280 – (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode)
- 1 x M.2 (E Key) (For wireless cards)
- 6 x SATA 6Gbps Ports
- 1 x USB 3.2 Gen 2 Header (Type-C)
- 1 x USB 3.2 Gen 1 Header (Up to 2 ports)
- 3 x USB 2.0 Header (Up to 6 ports)
- 1 x Front Panel Audio
- 1 x Power Button
- 1 x Reset Button
- 4 x POST LEDs
|
| Operating System |
Microsoft® Windows® 10 (64-bit) |
| Form Factor |
ATX |
| Warranty |
3 Years |
| Note |
***Features, Specifications, Price are subject to change without notice. |
