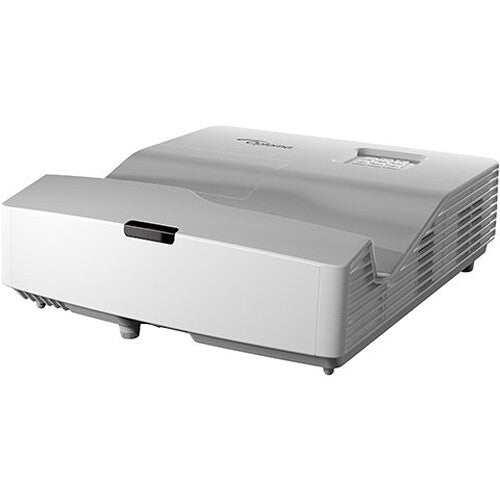

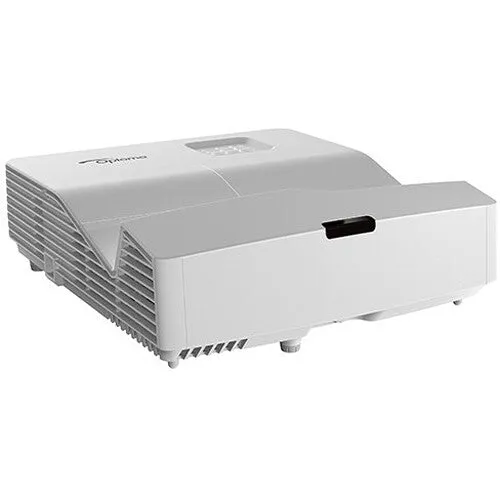

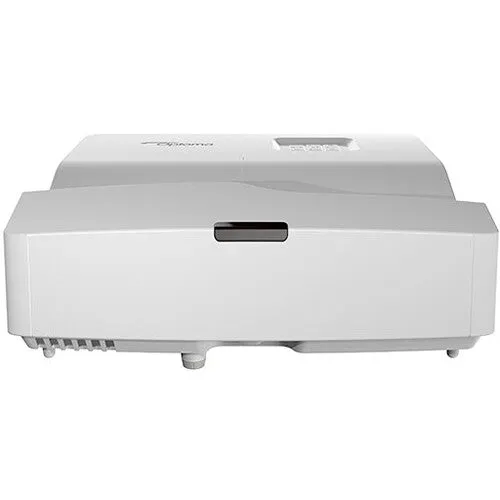

Optoma Technology W340UST 4000-Lumen WXGA Ultra-Short Throw DLP Projector


Out of stock

81,154 120,000

Out of stock

  • Brightness of 4000 Lumens
  • WXGA (1280 x 800) Native Resolution
  • 0.27:1 Ultra-Short Throw Ratio
  • VGA, RCA Composite, 2x HDMI Inputs

Enjoy bright, clear images at short throw distances with the Optoma W340UST 4000-Lumen WXGA Ultra-Short Throw DLP Projector . Its 4000 lumens of brightness will overcome ambient light in many settings, while its 20,000:1 dynamic contrast ratio and WXGA 1280 x 800 native resolution will help ensure that detail is clear. It has an ultra-short 0.27:1 throw ratio, which will allow you to place the projector just a few inches from your screen or wall to prevent the casting of shadows by people walking in front of it.

The W340UST has a VGA and two HDMI inputs to support a variety of devices; a VGA output allows you to daisy-chain the image to another projector or display, while the analog audio input and output will do the same for your audio. It has a built-in 16-watt speaker to eliminate the need for a separate speaker system. It is controllable via Ethernet, RS-232, or the included IR remote control.

DLP Technology DLP (Digital Light Processing) is a Texas Instruments technology designed to provide high contrast, fast response time, enhanced pixel structure, and virtually no color degradation. Ultra-Short Throw Projection Project large images in limited spaces with the short 0.27:1 throw ratio, limiting or eliminating shadows cast by the presenter. This makes the W340UST well suited for use in interactive and educational applications. Computer-Free USB Image and Document Viewer The built-in image and document viewer provides direct viewing of office documents, PDFs, images, and presentations from any compatible USB storage device. RS-232 Control Take control of the projector using HEX or ASCII commands via an RS-232 cable. Four-Corner Adjustment Four-corner geometric correction enables quick and easy image adjustments from any of the corner points of the image, simplifying projection on uneven or angled projection surfaces. Optional HDCast Pro for Wireless Display and Document Casting Mirror your Android, Windows, or Mac device wirelessly, cast images from Android, iOS, Windows, and Mac devices, or use USB Display to mirror your Android or iOS screen. Additional Features

  • LAN display via Ethernet with Windows and Mac OS X devices (up to four devices at once)
  • Up-converts the 3D frame rate from 60 to 120 Hz or from 24 to 144 Hz to provide 60 or 72 frames per eye
SKU: W340UST Categories: , Tags: ,
Weight 7 kg



Display System 0.65″ DMD DLP
Native Chip Resolution 1280 x 800 (WXGA)
Supported Resolutions Maximum: WUXGA – 1920 x 1200
Max Brightness 4000 Lumens (ANSI)
Uniformity 80%
Offset 119% ± 3%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 22,000:1
DLP Link 3D Yes
Supported 3D Formats Frame Packing
Side by Side
Top Bottom
Color Wheel 6-Segment (RGBWYC)
Color Depth 10-Bit (1.07 Billion Colors)
Scan Horizontal: 15.375 to 91.146 kHz
Vertical: 24 to 85 Hz or 120 Hz
Focus Manual
Lens f/2.4 (f = 3.72 mm)
Optical Zoom None
Throw Distance 6.5 – 12.75″ / 16.51 – 32.38 cm
Throw Ratio 0.27:1
Projection Size 85 – 115″ / 215.90 – 292.10 cm
Keystone Correction Auto-Horizontal: ± 4°
Auto-Vertical: ± 4°
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes
Speaker Power 16W

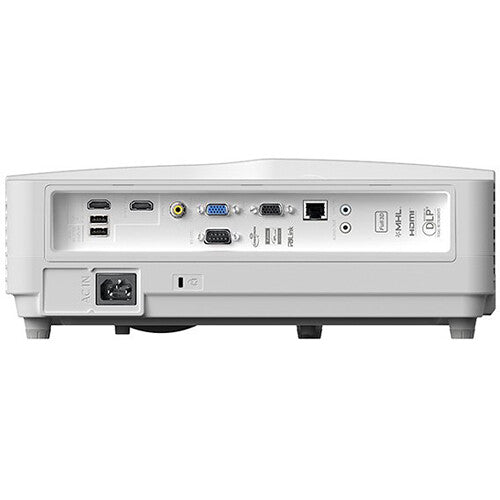

Inputs/Outputs 2 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15/DB-15) Video Input
1 x VGA (DE-15/DB-15) Video Output
1 x Composite (RCA) Video Input
1 x 1/8″ / 3.5 mm Mini Audio Input
1 x 1/8″ / 3.5 mm Mini Audio Output
1 x Ethernet (RJ45) LAN
1 x RS-232 (DE-9/DB-9) Control
1 x USB 2.0 (USB Type-A) Data, LAN
1 x USB 2.0 (USB Type-A) Audio, Control, Data, Power, Video
Wireless LAN / Wi-Fi No, Optional Adapter Available
Light Source Lamp
Lamp Power 240 W
Expected Lamp Life Full Brightness: 4000 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours
Fan Noise Low Brightness: 25 dB
Security Cable Lock Slot
Keypad Lock
Security Bar
Supported Audio File Types APE, FLAC, MP3, OGG, WMA
Supported Document File Types DOC, DOCX, PDF, PPT, PPTX, XLS, XLSX
Supported Photo File Types BMP, GIF, JPEG
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 285 W
Low Brightness: 205 W
Operating Temperature 41 to 104°F / 5 to 40°C
Operating Humidity 0 to 85%
Dimensions (W x H x D) 135.0 x 4.7 x 15.0″ / 342.9 x 11.9 x 38.1 cm
Weight 8.7 lb / 3.95 kg
