Optoma Technology ZH507 5500-Lumen Full HD Laser DLP Projector

OPTOMA
Availability:

Out of stock


157,972 199,999

Out of stock

Compare
Full HD with HDR Compatibility

The native on-screen resolution of the ZH507 is Full HD 1920 x 1080. 1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for watching Blu-ray movies, HD broadcasting, and playing video games.

With HDMI 2.0 and HDR compatibility the ZH507 is capable of receiving and displaying HDR meta data from 4K HDR sources. Optoma HDR compatible projectors allow you to see far more detail and texture than standard dynamic range projectors. Objects look more solid and life-like and the extra detail creates a greater sense of depth.

Maintenance Free 24/7 Operation

Industry leading long lifetime is achieved using Optoma’s DuraCore technology which implements advanced laser diode cooling techniques and an innovative dust-resistant design. The ZH507 has been independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability which is paramount for 24/7 maintenance free operation in challenging environments.

Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required.

Subject to 24 hour terms and conditions—standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolong the life of your lamp.

360° and Portrait Orientation
Ideal for digital signage applications, you can rotate the ZH507 projector 90° to project a portrait image. With 360° projection, images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.
Ultimate Control

Featuring a wide range of options you can control and monitor the projector remotely.

  • RS232—Optoma projectors come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
  • AMX compatible—Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
  • Crestron RoomView—Using the compatible RoomView software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer.
  • Extron IPLink compatible—Allows for easy installation with Extron control systems.
  • PJLink—PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.
  • Telnet—This model is able to receive commands via telenet allowing for easy installation with Telnet compatible control systems.
Additional Features
  • Full 3D support
  • Integrated 10W stereo speakers
  • AV mute
  • Quick resume
  • Instant on / instant off
  • Auto power off
SKU: ZH507 Categories: , Tags: , ,
Weight 4 kg
Brand

OPTOMA

Accessories

Warranty

5 Years

Display System
1-Chip 0.65″ DMD DLP
Native Chip Resolution
1920 x 1080 (Full HD)
Maximum Brightness
5500 Lumens
Throw Ratio
1.4 to 2.24:1

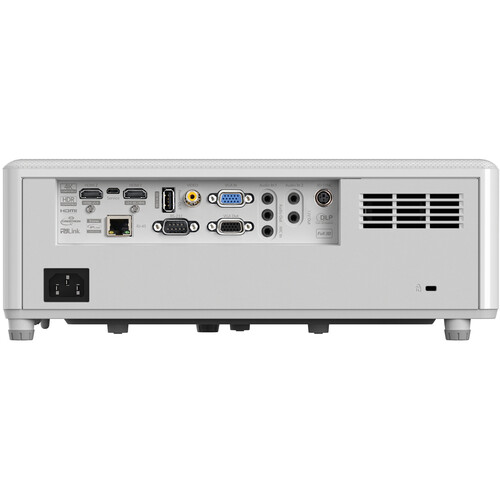

Inputs/Outputs
1 x HDMI 2.0 Audio, Video Input
1 x HDMI 1.4 Audio, Video Input
1 x DE-15/DB-15 (VGA) Video Input
1 x DE-15/DB-15 (VGA) Video Output
1 x RCA (Composite) Video Input
2 x 1/8″ / 3.5 mm Mini Audio Input
1 x 1/8″ / 3.5 mm Mini Audio Output
1 x 1/8″ / 3.5 mm Mini Microphone Input
1 x 1/8″ / 3.5 mm Mini Control Output
1 x USB-A Power Output
1 x Micro-USB Service Input/Output
1 x RJ45 LAN Input
1 x DE-9/DB-9 (RS-232) Control Input
1 x 3-Pin DIN (VESA 3D Sync) Control Output
Light Source
Laser Phosphor
Image Display
Display System
1-Chip 0.65″ DMD DLP
Native Chip Resolution
1920 x 1080 (Full HD)
Supported Resolutions
Maximum: 4K UHD – 3840 x 2160 @ 60 Hz
Maximum Brightness
5500 Lumens
Uniformity
80%
Offset
100%
Aspect Ratio
Native: 16:9
Contrast Ratio
300,000:1
DLP Link 3D
Yes
Supported 3D Formats
Frame Sequential
Frame Packing
Side by Side
Top Bottom
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 15.375 to 91.146 Hz
Vertical: 50 to 85 Hz
Latency
8.2 to 49.9 ms
Lens
Focus
Manual
Lens
f/2.5 – 3.26 (f = 20.911 – 32.62 mm)
Optical Zoom
Manual: 1.6x
Throw Distance
3.3 – 32.8′ / 1 – 10 m
Throw Ratio
1.4 to 2.24:1
Projection Size
20.2 – 320.4″ / .5 – 8.1 m
Features
Keystone Correction
Auto / Manual-Vertical: ± 30°
Manual-Horizontal: ± 30°
Supported HDR Input Formats
Yes
Digital Zoom
25x
Multi-Input Support (PIP/PBP)
None
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
Yes (Stereo)
Speaker Power
10W
Projection Tilt Option
Yes
Closed Captioning
Yes
Remote
Yes
Input/Output Connectors
Inputs/Outputs
1 x HDMI 2.0 Audio, Video Input
1 x HDMI 1.4 Audio, Video Input
1 x DE-15/DB-15 (VGA) Video Input
1 x DE-15/DB-15 (VGA) Video Output
1 x RCA (Composite) Video Input
2 x 1/8″ / 3.5 mm Mini Audio Input
1 x 1/8″ / 3.5 mm Mini Audio Output
1 x 1/8″ / 3.5 mm Mini Microphone Input
1 x 1/8″ / 3.5 mm Mini Control Output
1 x USB-A Power Output
1 x Micro-USB Service Input/Output
1 x RJ45 LAN Input
1 x DE-9/DB-9 (RS-232) Control Input
1 x 3-Pin DIN (VESA 3D Sync) Control Output
HDCP Support
Yes, Version 2.2
Hardware
Mobile App Compatible
Yes, Adapter Required (Not Included)
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless LAN / Wi-Fi
No, Optional Adapter Available
Bluetooth
None
General
Light Source
Laser Phosphor
Expected Lamp Life
Low Brightness: 30,000 Hours
Fan Noise
Full Brightness: 32 dB
Security
Cable Lock Slot
Password Protection
Supported Languages
Arabic
Czech
Danish
Dutch
English
Farsi
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Slovak
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Heat Dissipation
918 BTU
Power Consumption
Full Brightness: 282 W
Low Brightness: 227 W
Standby Mode (Lamp Off): < 0.5 W
Operating Altitude
9842′ / 3000 m
Operating Temperature
41 to 104°F / 5 to 40°C
Operating Humidity
85% (Non-Condensing)
