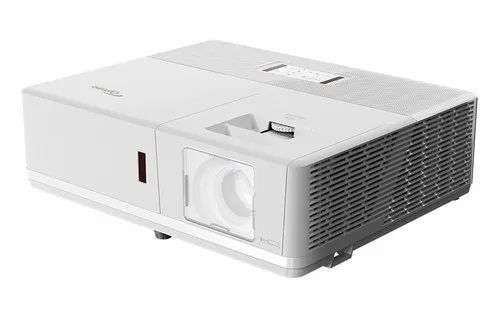

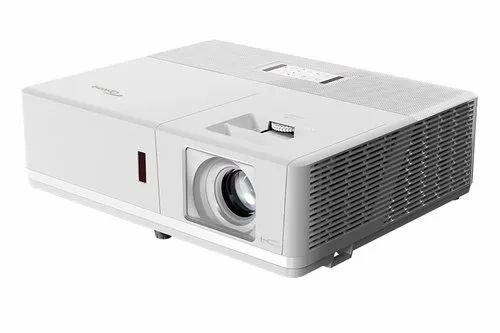

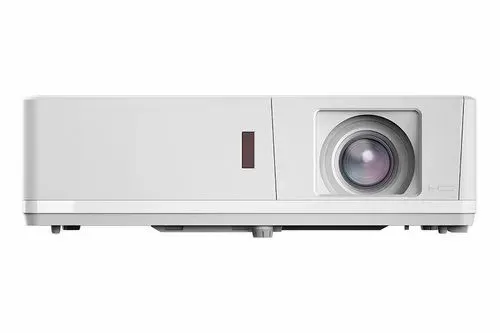

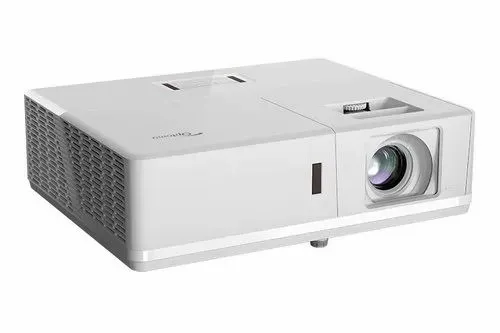

Optoma ZU516SA-T DLP Projector

100% Genuine

205,674 300,000

You Save: 94,326
Hassle Free Returns

Please read return policy

Fast Shipping

All orders are shipped in 1-3 business days.

Secure Checkout

SSL Enabled Secure Checkout

The world’s smallest and lightest laser projector* – compact size and light weight makes only
one man for installation possible, minimize your labor cost, more easy on set up.
 4K & HDR compatible* – The world’s 1st projector capable to accept native 4K signals and
compatible with HDR10.
 Optoma DURACORE Technology – IP6X certified system that provides good brightness
maintenance & reliability.
 Install and forget – up to 30,000 hours** laser light source life and virtually zero maintenance for
 Amazing color — 99% Rec.709 color gamut coverage to render lifelike images.
 Easy installation — big 1.6x zoom & vertical lens shift with smallest size among competition make
it labor and time saving for installation.
 Tilt free orientation, including portrait mode — the system is designed to be installed at any
desired angle even for the challenging professional AV installation spaces.

SKU: ZU516SA-T Categories: , Tags: ,
Weight 4 kg



Screen Size 20.8 inch – 331.6 inch
Display Type DLP
Model Number ZU516SA-T
Brand Optoma
Resolution WUXGA (1920 x 1200 pixel)
Lamp Life 30000 hours to 50% Brightness (Eco Mode)
Projection Distance 1.0 ~ 10 m
Brightness 5000 ANSI Lumens
Contrast 300,000:1 (w/ Extreme black)
Light Source Laser phosphor
Throw Ratio 1.4 ~ 2.24
Zoom Type 1.6x Manual
Lens Shift +8% (99%~107%) vertical
I/O Connectors HDMIx2 (one MHL), USB power(5V/1.5A), VGA-In 1 x1, Composite x1, Audio-In x1 (Mic), Audio-In x1, Audio out x1, VGA Out x1, 12V Out x1, Kensington Lock x1, RS232 x1, RJ45 x1, HDBaseT x1, VGA In 2 x1, S-Video x1
Speaker (Watts) 10W x 2
Keystone Correction ±30° Vertical, ±30° Horizontal
Weight (Kg) 5.5
Dimensions (W x D x H) (mm) 374 x 302 x 107 (excluded adjustment feet)
Aspect Ratio 16:10 Native, 16:9 and 4:3 Compatible
Offset 99% – 107%
Projection Lens F/2.5~3.26; f=20.91~32.62mm, 1.6x Manual Zoom
Uniformity 80%
Computer Compatibility UHD, WUXGA,1080P,UXGA, SXGA+,SXGA ,WXGA+,WXGA,720P,XGA,SVGA,VGA Compression, VESA standards, PC & Macintosh compatible
Video Compatibility 480i/p, 576i/p, 720p/1080i (50/60Hz), 1080p (24/50/60Hz), 2160p(24/50/60Hz)
3D Support Full 3D – The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D and 3D games from the Sony PS3 or Microsoft Xbox 360 are now supported as part of the HDMI v1.4a specification.
Horizontal Scan Rate 15.375~91.146 KHz
Vertical Scan Rate 24 – 85Hz
Displayable Colors 1073.4 million colors (10 bit)
Noise Level 31dB (Eco mode)
Power Supply 100–240V, 50–60Hz, auto-switching
Power Consumption Typ. 321W@110VAC, 310W@220VAC, Eco Standby : <0.5W, Active Standby : <2W
360-operation Yes
Portrait Mode Yes
Projection Method 360° operation, Portrait mode supported
Heat Dissipation 1,164 BTU/h @220VAC, Max. 1,201 BTU/h @110VAC
  • AV Mute
  • Network Control Protocols
  • 360° And Portrait Projection Capability
  • 24/7 Operation
  • Interactive Classroom / Education
  • Office Presentation & Data Projector
  • Home Cinema / Theater
