CPU

Onboard Intel®^® Gemini Lake processors

1 Phase Thermal Design Power

100% Solid capacitor design
GRAPHICS

Supports DirectX^® 12

Supports HDMI 1.4b & Premium Audio

Supports DP 1.2
MEMORY

Single-channelDDR4 Memory architecture

Supports DDR4 2400 non-ECC, Un-buffered SDRAM Memory

1 X DDR4 SO-DIMM socket

∟ Support up to 8 GB*
EXPANSION SLOT

1 X M.2 slot for SSD (Optional)

∟ SATA SSD Support

1 X M.2 slot for WiFi PCIe Gen 2

Supports Intel®^® CNVi
STORAGE

Support by Gimini Lake Express Chipset

2 X Serial ATAIII 6Gb/s
AUDIO

6-Channel HD audio CODEC

Realtek ALC662 ‧Realtek ALC662 6-channel High Definition audio CODEC ‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs ‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution ‧Emulation of 26 sound environments to enhance gaming experience ‧Voice Cancellation and Key Shifting in Karaoke mode ‧Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN

Realtek 8111H Gigabit Fast Ethernet Controller
USB

4 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s (either rear I/O or front header)

---- Back Panel 4 port(s)

6 X USB2.0 port(s) Up to 480 Mb/s

---- Back Panel 2 port(s)

---- Onboard 4 port(s)

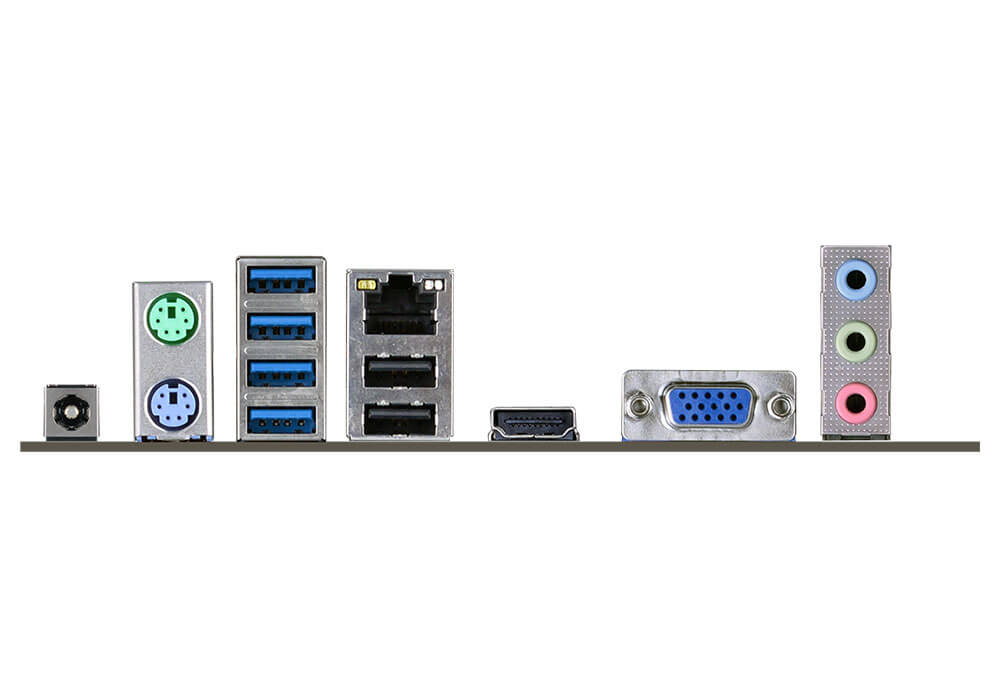

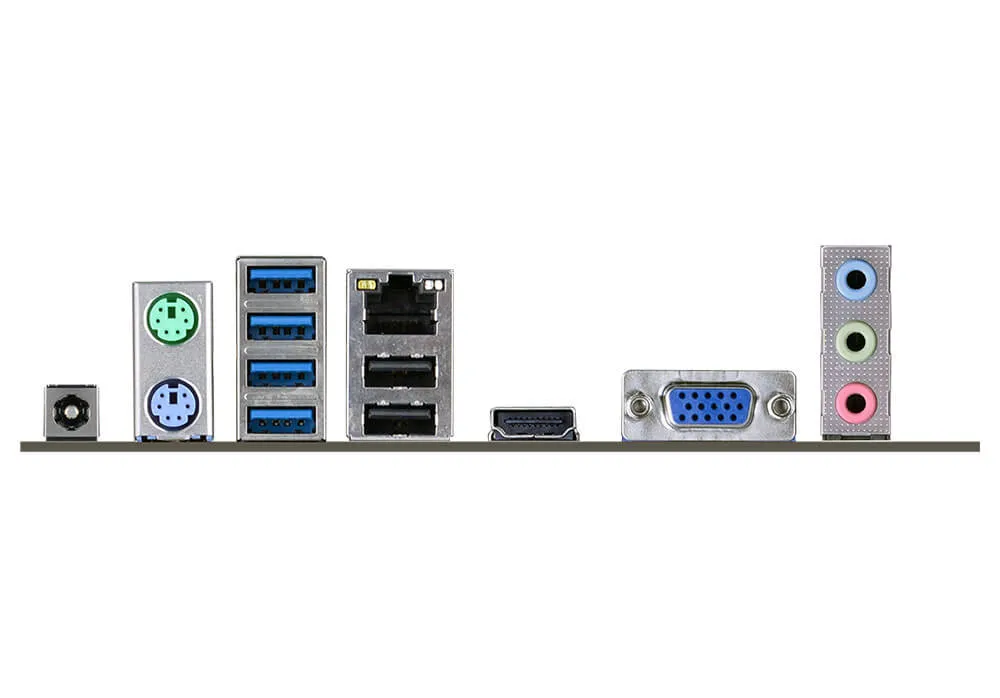

REAR PANEL I/O

1 X PS/2 Keyboard & PS/2 mouse connectors

1 X Audio port (Line Out/Line In/Mic In)

1 X RJ-45 port

1 X HDMI port(s)

1 X D-Sub (VGA) port(s) (optional)

1 X Display port(optional)

1 X DC-in 19V Connector
CONNECTORS & HEADERS

1 X 4-pin SYS_FAN connector

1 X Front Panel MIC/Speaker out header

1 X Front Panel switch/LED header

2 X USB 2.0 header

1 X CLR_CMOS header

2 X Serial port header (COM)

1 X Parallel port header (LPT)

1 X eDP header (optional)
SYSTEM BIOS

AMI BIOS with 128 MB SPI Flash ROM

Dual Display

Support GUI UEFI BIOS

Multi-Language BIOS
FORM FACTOR

Mini ITX Form Factor

170*170
OS SUPPORT

Windows® 10 64-bit
CERTIFICATIONS

CE/FCC Certification

WHQL Certification
BUNDLED SOFTWARE

ECS Intel®ligent EZ Utility : eDLU
ARCHIVE SPEC(不須勾選)

Supports M.I.B III Utility

ECS Intel®ligent EZ Utility : eDLU

Windows® 10 32-bit

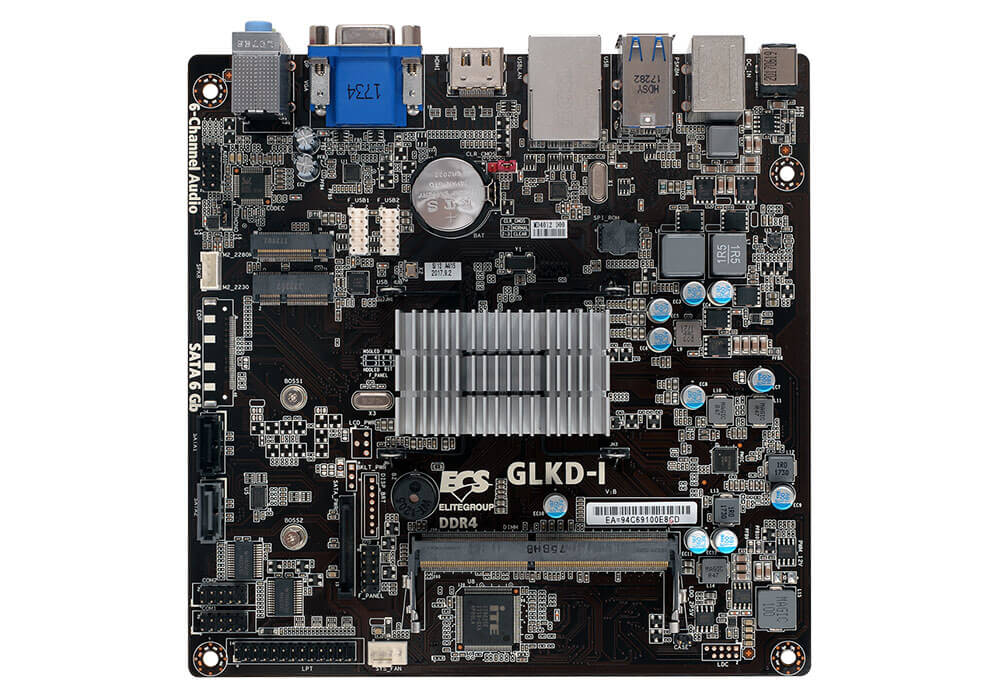

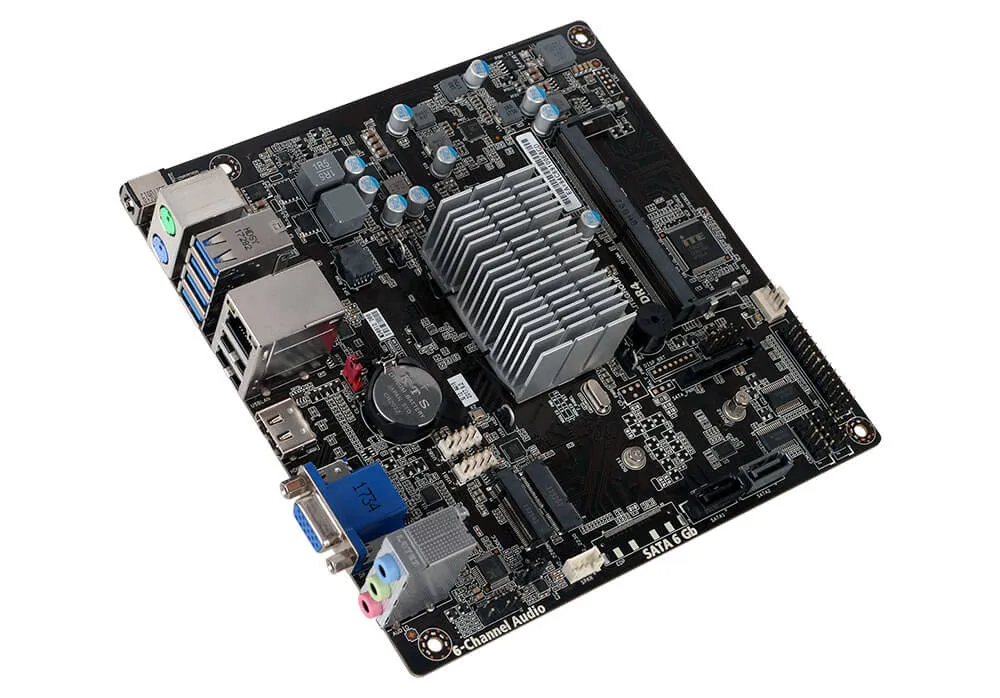

ECS GLKD-I/J4125 MOTHERBOARD
